ENGINE MOUNTING WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388C007)

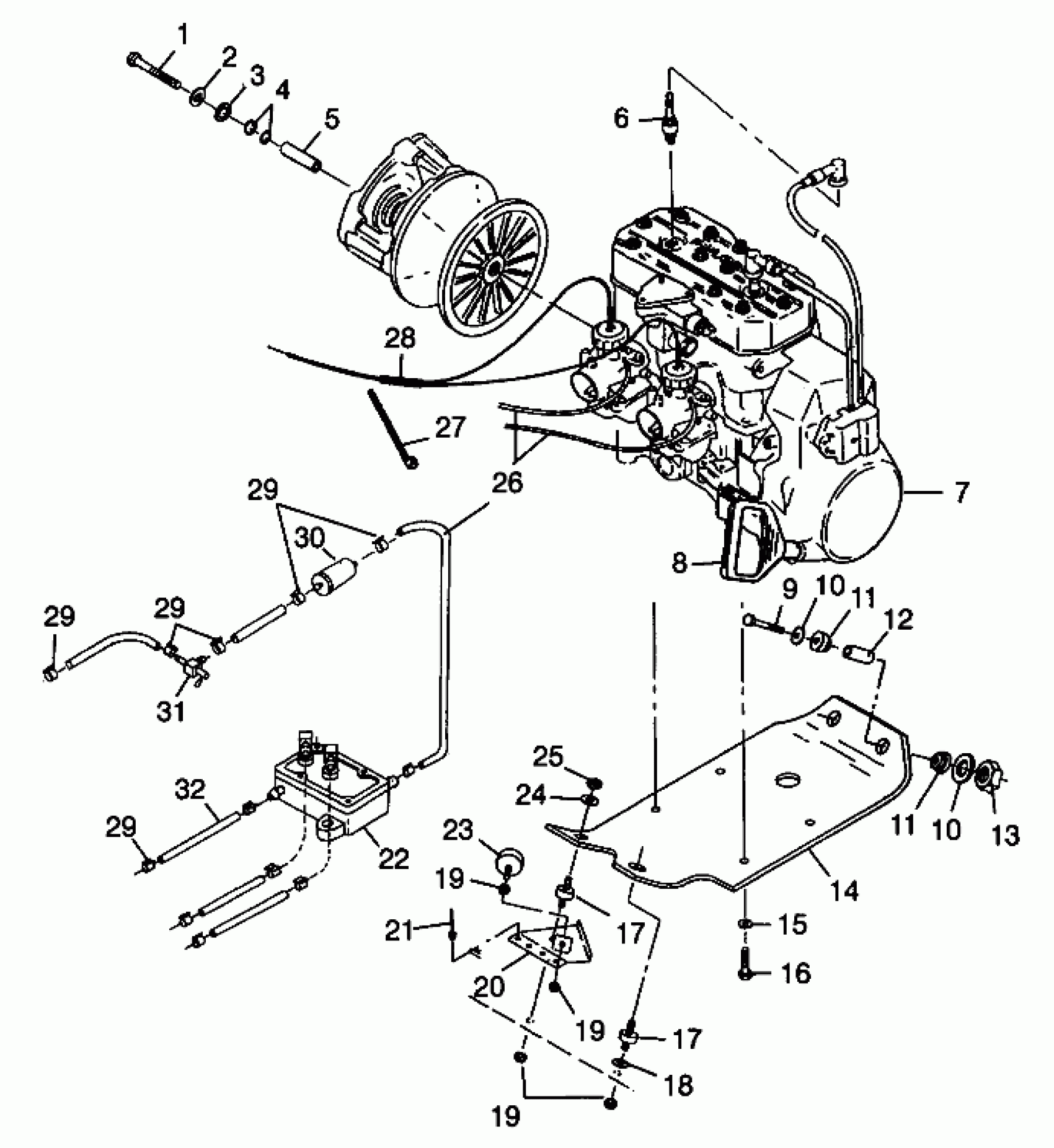

Polaris WIDETRAK LX - 0982065 ENGINE MOUNTING WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388C007) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
SPARKPLUG, RN3C(8)
3070166
$3.99
7
ENG.(S.B.)EC50PL-16/19/20 [No Longer Available] NOTE: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly. Prior authorizati
3085397
Unavailable
8
HANDLE,RECOIL Substituted by 5431499-070
5431499
Unavailable
9
SCREW(10)
7512530
$5.59
10
WASHER(10)
7555740
$1.59
10
WASHER(10)
7555929
Unavailable
10
WASHER(10)
7555740
$1.59
10
WASHER(10)
7555929
Unavailable
11
MOUNT, ENGINE
5410390
Unavailable
11
MOUNT, ENGINE
5410390
Unavailable
12
TUBE,SPACER
5333354
Unavailable
13
NUT,FLANGE(10)
7542522
$5.59
14
PLATE,MOTOR MT.
5242496
$125.46
15
WASHER LOCK(10)
7553101
$3.99
16
BOLT(10)
7512539
$3.99
17
MOUNT,ENG.
3110061
$84.99
17
MOUNT,ENG.
3110061
$84.99
18
WASHER,FLAT(10)
7555915
$3.19
19
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
19
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
19
NUT-HEX-3/8-16 A ZTB NYL
7542451
$1.49
20
LIMITER,TORQUE,BLK.
1012048-067
$38.71
21
RIVET-3/16-.090-.290
7661637
$1.49
22
Asm., Fuel Pump (See Pg. A39, Ref. 2)
-------
Unavailable
23
STOP,TORQUE,COARSE,1.94 DIA
3110063
$29.99
24
WASHER(10)
7555893
$1.49
25
NUT,FLEXLOCK,(10)
7547008
$6.39
26
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
27
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
28
CABLE,THROTTLE,W/OIL
7080554
$64.75
29
HOSE CLAMP, RED
7080003
$1.49
29
HOSE CLAMP, RED
7080003
$1.49
29
HOSE CLAMP, RED
7080003
$1.49
29
HOSE CLAMP, RED
7080003
$1.49
30
FILTER FUEL,(10)
2530008
$4.84
31
VALVE,FUEL SHUT-OFF
7052060
Unavailable
32
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
