COOLING SYSTEM WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388C005)

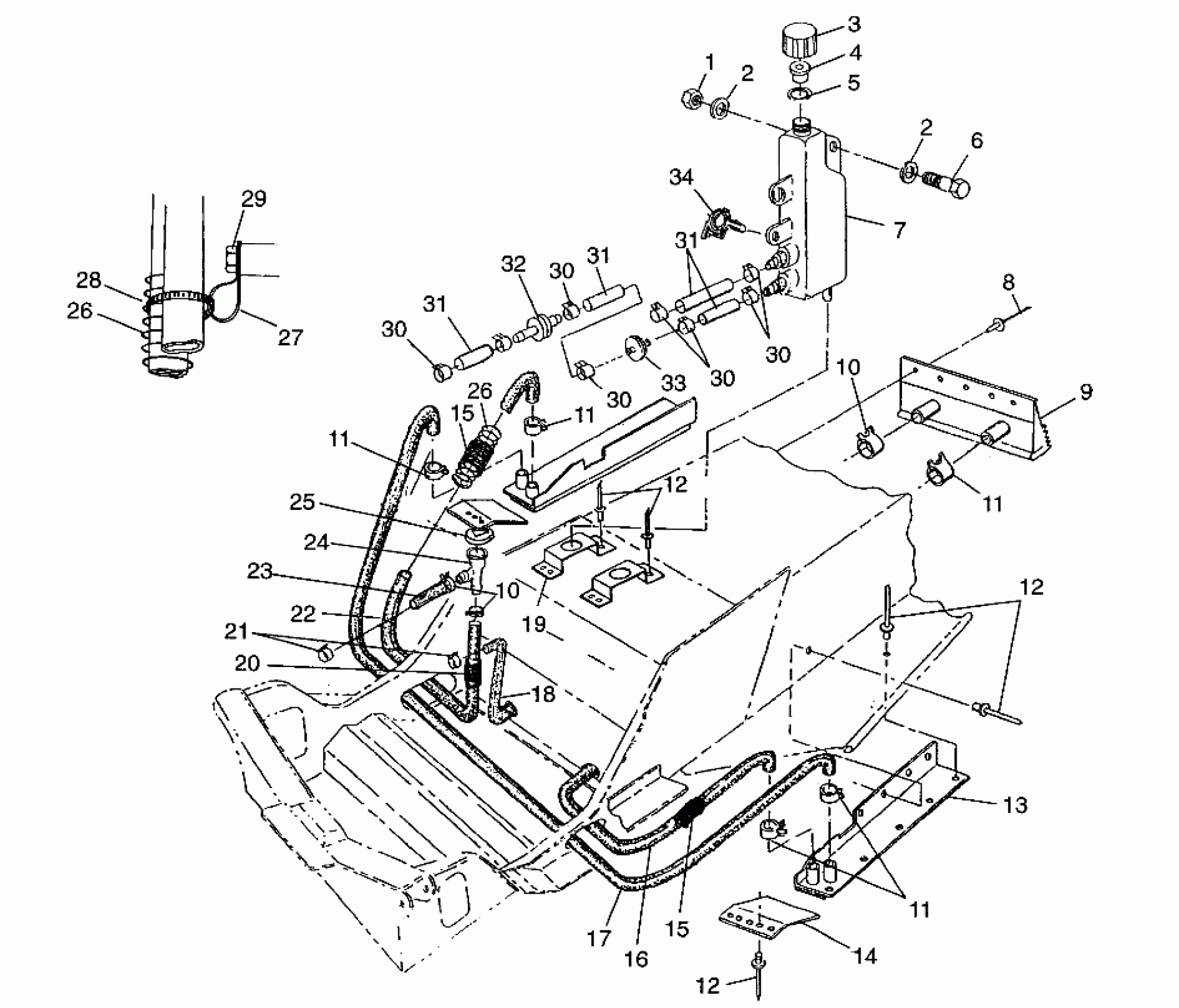

Polaris WIDETRAK LX - 0982065 COOLING SYSTEM WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388C005) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXT,CTR.COOLING
2511187
Unavailable
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
COOLER,LH,SIDE(XTRA 10) Substituted by 1240059
2511257
$144.99
13
COOLER,RH,SIDE(XTRA 10)
2511258
$227.99
14
GUARD,COOL.EXT.
5240555
$11.59
15
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
15
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
16
HOSE,CROSSOVER,SHORT
5410558
$19.68
17
HOSE,CROSSOVER
5410557
Unavailable
18
HOSE,CLOSEOFF,OUT ENG.
5411382
$40.46
19
BRKT,OILTANK,COINED
5241334
$9.70
20
TUBING,CONVOL,8"X1"
5411396
$9.70
21
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842
7080563
Unavailable
22
HOSE,FILLER OUT,RH.EXT.
5411381
Unavailable
23
HOSE,ENG.OUT/FILLER
5411010
$24.27
24
FILLER,REMOTE COOLANT Substituted by 5433364
5431931
Unavailable
25
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
26
SPRING,HOSE RETAINER
7041079
$4.95
26
SPRING,HOSE RETAINER
7041079
$4.95
27
CLAMP(10)
7080583
Unavailable
28
STRAP,8 IN.TYTON
7080571
$2.47
29
Bolt NOTE: Bolt is lower gearcase mounting bolt.
-------
Unavailable
30
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
30
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
30
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
30
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
30
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
31
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
31
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
31
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
32
VALVE, CHECK
7052038
$10.51
33
FILTER,COOLANT,LGE.
2530024
Unavailable
34
CLIP, PLASTIC(10)
4020139
$4.79
