CARBURETOR WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388C013)

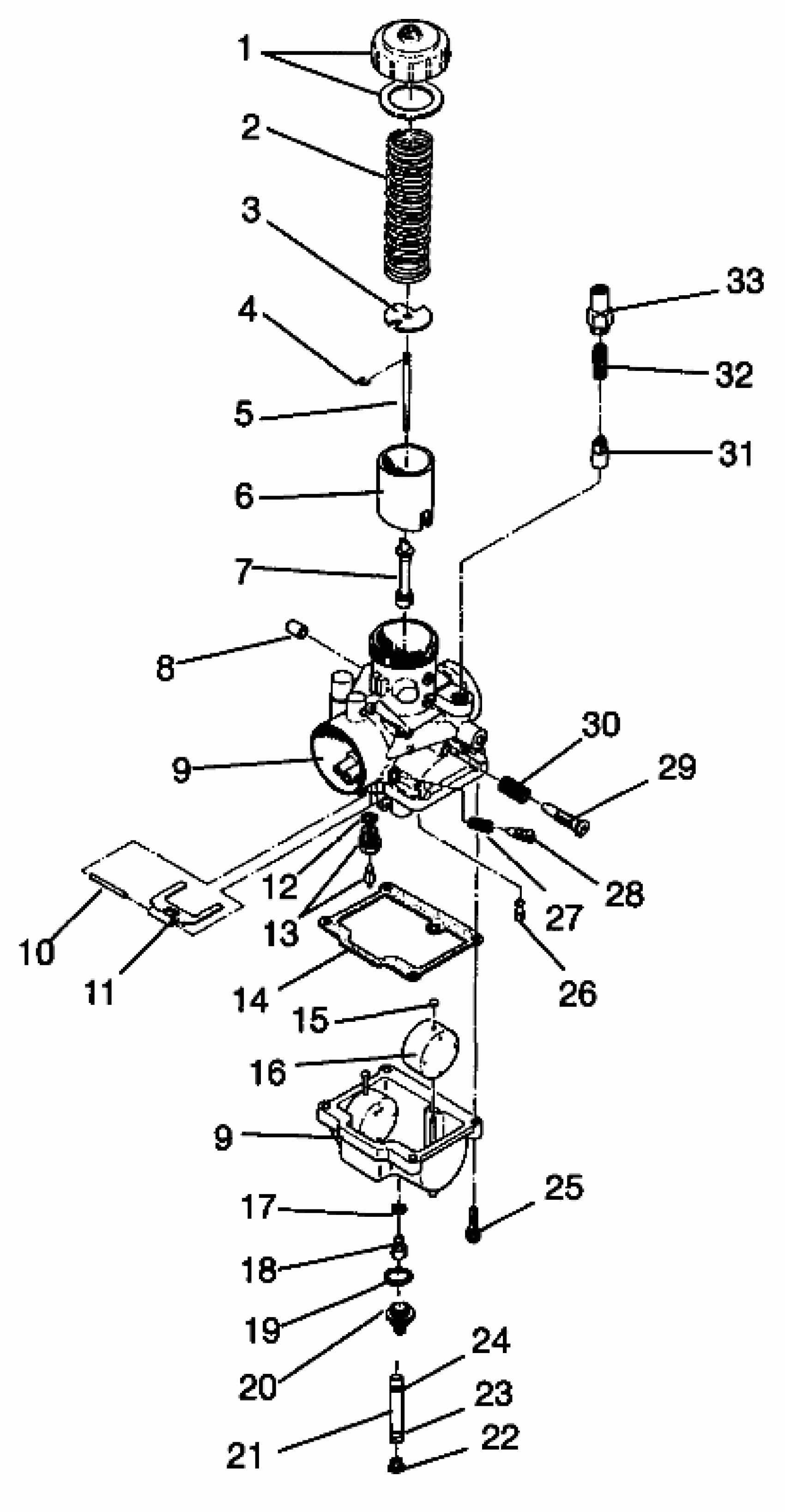

Polaris WIDETRAK LX - 0982065 CARBURETOR WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388C013) Diagram
#
Description
Price
1
TOP ASM
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
E-RING,(10)
3130508
$6.46
5
NEEDLE,JET,(6EJ26) (6EJ26-2)
3130423
$20.22
6
VALVE,THROTTLE,(3.0) (3.0)
3130372
$52.60
7
JET NEEDLE (166)
3130160
$36.41
8
CAP
3130479
$14.56
9
CARBURETOR (Incl. 1-20, 25-33)
3130711
$503.48
9
CARBURETOR (Incl. 1-20, 25-33)
3130711
$503.48
10
PIN, FLOAT
3130361
$8.89
11
ARM,FLOAT
3130018
$24.27
12
PACKING(10)
3130017
$4.03
13
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
14
PACKING,FLOAT CHAMBER
3130020
$16.17
15
CAP,(10)
3130237
$4.03
16
FLOAT ASM.
3130430
$43.56
17
WASHER (10)
3130014
$1.59
18
JET,MAIN,HX.HD.#195(10) (#195)
3130122
$6.46
19
O RING
3130239
Unavailable
20
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
21
FUEL LINE, 5 FT.
8450045-153
$99.99
22
PLUG,TRAP
5431893
$12.94
23
CLAMP,HOSE(10)
7080544
Unavailable
24
CLAMP,SPRING,(10)
7080534
$1.59
25
SCREW & WASHER(10)
3130025
$3.19
26
JET,PILOT,#35(10) (#35)
3130066
$8.89
27
SPRING,AIR ADJUST
3130012
$8.89
28
SCREW,AIR
3130011
$19.99
29
SCREW,THROTTLE STOP
3130009
$19.99
30
SPRING,THROTTLE ADJ.
3130010
$8.89
31
PLUNGER ASM, STARTER
3130328
$32.37
32
SPRING,PLUNGER
3130006
$8.89
33
HOLDER,GUIDE
3130199
$28.32
