BRAKE WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388B008)

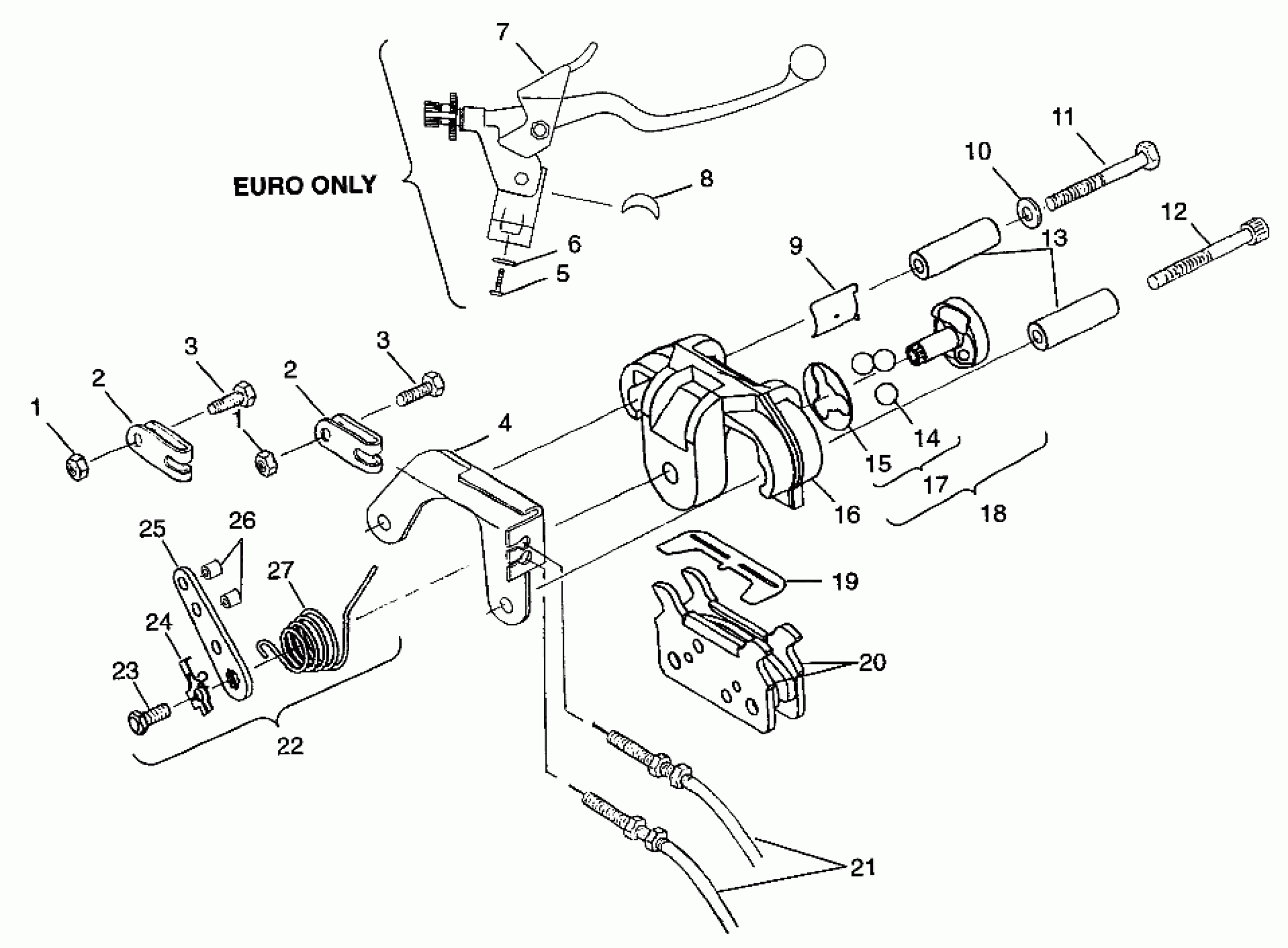

Polaris WIDETRAK LX - 0982065 BRAKE WIDETRAK LX 0982065 and EUROPEAN WIDETRAK LX E982065 (4943884388B008) Diagram
#
Description
Price
-
CALIPER,BRAKE,(W'TRAK) Substituted by 1910399 (Incl. 9, 13-15, 18-20, 22, 27)
1930808
$247.60
1
NUT, LOCK(10) (US)
7542103
$5.59
1
NUT, LOCK(10) (US)
7542103
$5.59
2
PIN, CLEVIS (US)
7080316
Unavailable
2
PIN, CLEVIS (US)
7080316
Unavailable
3
BOLT(10) (US)
7512240
$3.99
3
BOLT(10) (US)
7512240
$3.99
4
BRKT,BRAKE,BLK
5241868-067
$28.15
5
SCREW(10) (Euro)
7512040
Unavailable
6
WASHER,TOOTH-LOCK(10) (Euro)
7555780
Unavailable
7
LEVER ASM,BRAKE (Euro)
2050039
Unavailable
8
SPACER,BRAKE LEVER (Euro)
5130860
$13.59
9
Clip, Spring
-------
Unavailable
10
WASHER(10)
7555734
$1.49
11
SCREW(10) Substituted by 7515346
7517346
Unavailable
12
SCREW ,(10)
7517340
$12.39
13
KIT,BUSHING MOUNT
2200992
$47.99
14
BEARINGS, BALL
-------
Unavailable
15
SPACER, BALL
-------
Unavailable
16
KIT,CALIPER CASTING
2200993
$151.99
17
KIT,BALL BEARING (Incl. 14, 15)
2200994
$22.39
18
KIT,CW.ROTOR (Incl. 14, 15)
2200989
$74.39
19
KIT,PAD,SPRING&CLIP (Incl. 9)
2200990
$30.95
20
KIT,BRAKE PAD Substituted by 2201220 (Set of 2) (Incl. 9, 19, 24)
2200988
$199.99
21
CABLE,BRAKE,WIDETRAK (US)
7080666
$93.08
21
CABLE,BRAKE,PARKING (Euro)
7080667
$45.59
22
KIT,LEVER&SPRING (Incl. 23, 24, 25, 27)
2200991
$34.71
23
SCREW
-------
Unavailable
24
ANTI-ROTATION CLIP
-------
Unavailable
25
Lever
-------
Unavailable
26
BUSHING (US)
5332795
$5.56
27
LEVER, SPRING
-------
Unavailable
