TUNNEL WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822A005)

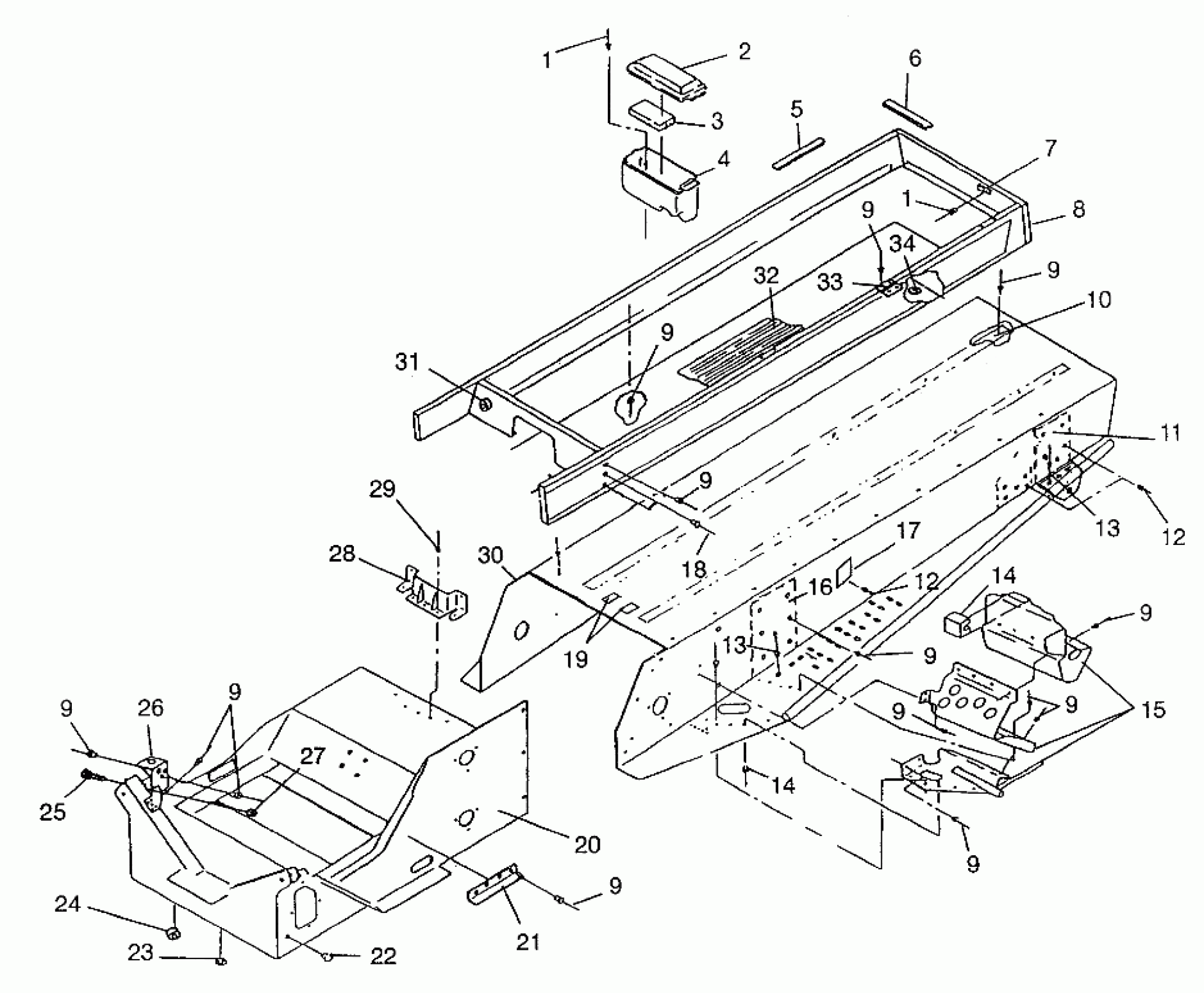

Polaris WIDETRAK LX - 0972065 TUNNEL WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822A005) Diagram
#
1
RIVET,3/16X.402(50)
7621432
$1.49
1
RIVET,3/16X.402(50)
7621432
$1.49
2
COVER,TOOL BOX
5430719
$28.32
3
FOAM,TOOLBOX
5811051
Unavailable
4
BOX-TOOL
5430716
$11.99
5
SEAL,SEAT RISER
5410562
$20.22
6
SEAL,SHORT,SEAT RISER
5410563
$7.73
7
CLIP, HALF(10)
7080393
$3.19
8
SEATRISER ASM,EMERALD Substituted by 1011947-067
1011947-210
$196.83
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
9
RIVET-3/16-.090-.290
7661637
$1.49
10
Strip, Wear
5510233
$23.99
11
PAD,LH,HD.SUSPENSION
1012387-067
$45.59
11
PAD,RH,HD.SUSPENSION, BLACK
1012388-067
$45.59
12
RIVET ,(50)
7661837
$1.49
12
RIVET ,(50)
7661837
$1.49
13
RIVET,SEMI-TUBE.,(50)
7661844
$1.49
13
RIVET,SEMI-TUBE.,(50)
7661844
$1.49
14
EXTRUSION,CLUTCHGUARD
5521238
$6.46
14
EXTRUSION,CLUTCHGUARD
5521238
$6.46
15
FOOTREST,LH,LX Substituted by 1012734
1012528
Unavailable
15
FOOTREST,RH,LX Substituted by 1012735
1012529
$105.79
16
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
17
PLATE,TUNNEL,CARRIER,BLK.
5211220-067
Unavailable
18
RIVET(50)
7621452
$1.49
19
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
20
BULKHEAD,BLK. Substituted by 1012653
1011986-067
Unavailable
21
GUARD,ADAPTER GUIDE
5222857
$12.94
22
PLUG, HOLE(10)
7080416
$5.65
23
PLUG-HOLE
7080398
$4.84
24
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
25
SCREW(10)
7512307
$3.99
26
Support, Muffler (See Pg. A29, Ref. 15)
-------
Unavailable
27
NUT LOCK(10)
7542321
$1.49
28
BRACKET, GASTANK
5221932-067
Unavailable
29
RIVET(50)
7621301
$3.99
30
TUNNEL,HD,(LX) (Incl. 9-11, 16)
1012402
$497.60
31
BUSHING,(OPEN/CLOSE)(10)
7080392
$2.07
32
Protector, Riser
5410561
$89.90
33
HINGE,FLAT(10)
7020023
$4.19
34
Grommet
5410437
$2.39
