SUSPENSION WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822B007)

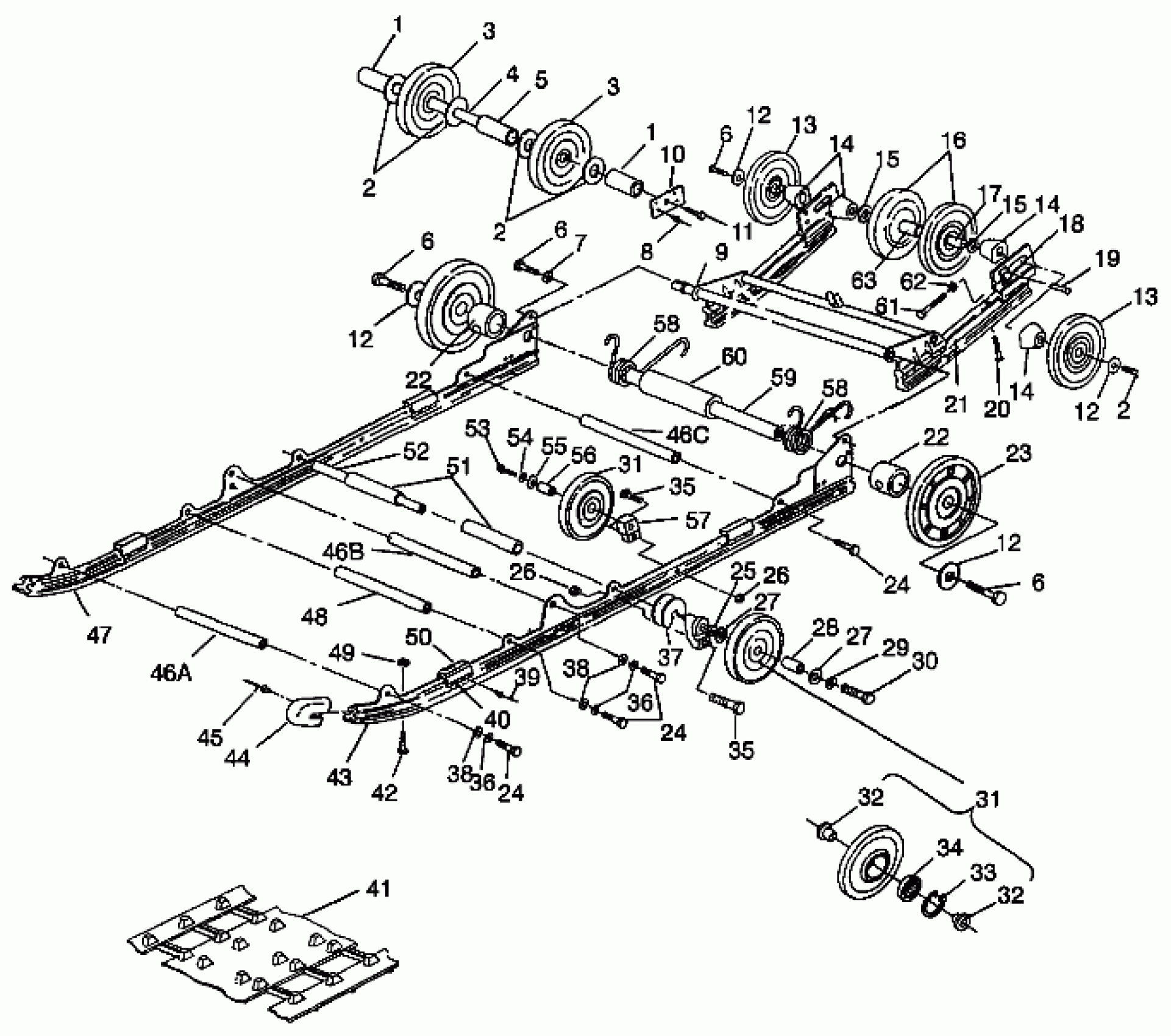

Polaris WIDETRAK LX - 0972065 SUSPENSION WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822B007) Diagram
#
1
SPACER, OUTER
5333019-067
$15.99
1
SPACER, OUTER
5333019-067
$15.99
2
WASHER(10)
7555726
$1.59
2
WASHER(10)
7555726
$1.59
2
WASHER(10)
7555726
$1.59
3
WHEEL, CARRIER
1543021
Unavailable
3
WHEEL, CARRIER
1543021
Unavailable
4
SHAFT,MTG.
5020836
$32.37
5
SPACER,BLK,IN.CARRIER
5333020-067
$24.99
6
BOLT(10)
7515526
$1.19
6
BOLT(10)
7515526
$1.19
6
BOLT(10)
7515526
$1.19
6
BOLT(10)
7515526
$1.19
7
WASHER(10)
7552603
$1.49
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
9
SHAFT,PIVOT ARM
5020725
$34.99
10
PLATE,TUNNEL,CARRIER,BLK.
5211220-067
Unavailable
11
BOLT(10)
7515432
Unavailable
12
WASHER(10) Substituted by 7556130
7571629
Unavailable
12
WASHER(10) Substituted by 7556130
7571629
Unavailable
12
WASHER(10) Substituted by 7556130
7571629
Unavailable
12
WASHER(10) Substituted by 7556130
7571629
Unavailable
13
WHEEL,IDLER,GOLD MET.
1594056-227
Unavailable
13
WHEEL,IDLER,GOLD MET.
1594056-227
Unavailable
14
SPACER-IDLER
5432535
$11.99
14
SPACER-IDLER
5432535
$11.99
14
SPACER-IDLER
5432535
$11.99
15
BUSHING(10)
7555918
$1.59
15
BUSHING(10)
7555918
$1.59
16
WHEEL,IDLER,BLK(20MM)
1594056-070
$48.56
17
SHAFT,IDLER
5020879
$43.99
18
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
18
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
19
RIVET,(50)
7621501
$2.39
20
SCREW(10)
7512225
$3.99
21
RAIL ASM,SWINGARM,RIVETED (Incl. 18, 19)
1541133
Unavailable
22
TUBESPACER,CTR,OUTSIDE
5330171-067
$16.99
22
TUBESPACER,CTR,OUTSIDE
5330171-067
$16.99
23
WHEEL ASM.,W/INS.
1594078
Unavailable
24
SCREW,(10)
7517247
$3.19
24
SCREW,(10)
7517247
$3.19
24
SCREW,(10)
7517247
$3.19
25
SPACER
5630399
$11.99
26
NUT LOCK(10)
7542403
$3.99
26
NUT LOCK(10)
7542403
$3.99
27
WASHER, FLAT(10)
7555852
$2.39
27
WASHER, FLAT(10)
7555852
$2.39
28
SPACER, WHEEL
5333116
$7.99
29
WASHER LOCK(10)
7553101
$3.99
30
BOLT(10)
7512538
$6.39
31
WHEEL, IDLER (Incl. 33-35)
1543018
$56.65
31
WHEEL, IDLER (Incl. 33-35)
1543018
$56.65
32
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
32
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
33
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
34
BEARING (1 per Wheel)
3514303
$11.99
35
BOLT(10)
7512404
$3.99
35
BOLT(10)
7512404
$3.99
36
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
36
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
37
ROLLER, SPRING
5431366
$10.51
38
WASHER(10) Substituted by 7555806
7555720
$0.79
38
WASHER(10) Substituted by 7555806
7555720
$0.79
39
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
40
REINF., BUMPER
5222629
$13.75
41
CLIP, TRACK(CAMOPLAST),(10)
5222839
Unavailable
41
CLIP,GUIDE,CAMOPLAST,(10)
5222840
Unavailable
41
TRACK,156",CAMO. Substituted by 5411395
5411040
Unavailable
42
SCREW(10)
7512227
$3.19
43
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
43
RAIL ASM,LH,(W'TRAK) (Incl. 40, 44, 50)
1540751
$419.99
44
COVER-RAIL TIP
5430627
$32.37
44
COVER-RAIL TIP
5430627
$32.37
45
RIVET(50)
7621435
$1.49
46
SHAFT,PIVOT ARM,FRT.
5020718
Unavailable
46
SHAFT,PIVOT ARM,FRT.
5020718
Unavailable
46
SHAFT,PIVOT ARM,FRT.
5020718
Unavailable
47
RAIL ASM,RH,(W'TRAK) (Incl. 40, 44, 50)
1540752
$419.99
48
SHAFT,SPANNER
5020720
$34.99
49
NUT-LOCK(10)
7542122
$1.49
50
BUMPER, RAIL
5810554
$7.27
51
SPACER,R.SHOCK
5333138
$39.99
52
SHAFT,REAR SHOCK Substituted by 5020719
5020651
Unavailable
53
BOLT(10)
7512659
$7.99
54
LOCK WASHER(10)
7553201
$3.99
55
WASHER(10)
7555804
$3.99
56
SPACER
5332786
$7.99
57
BRACKET,BOGIE WHEEL
5130570
$48.56
58
SPRING,R.EXT,BLK.
7041231-067
$59.99
58
SPRING,R.EXT,BLK.
7041231-067
$59.99
59
SHAFT,IDLER
5020726
$39.99
60
TUBE,CTR.IDLER,BLK.
5333014-067
$39.99
61
BOLT(10)
7515459
$5.59
62
NUT(10)
7542404
$1.59
63
SPACER,IDLER
5333523
$11.99
