STEERING WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822B004)

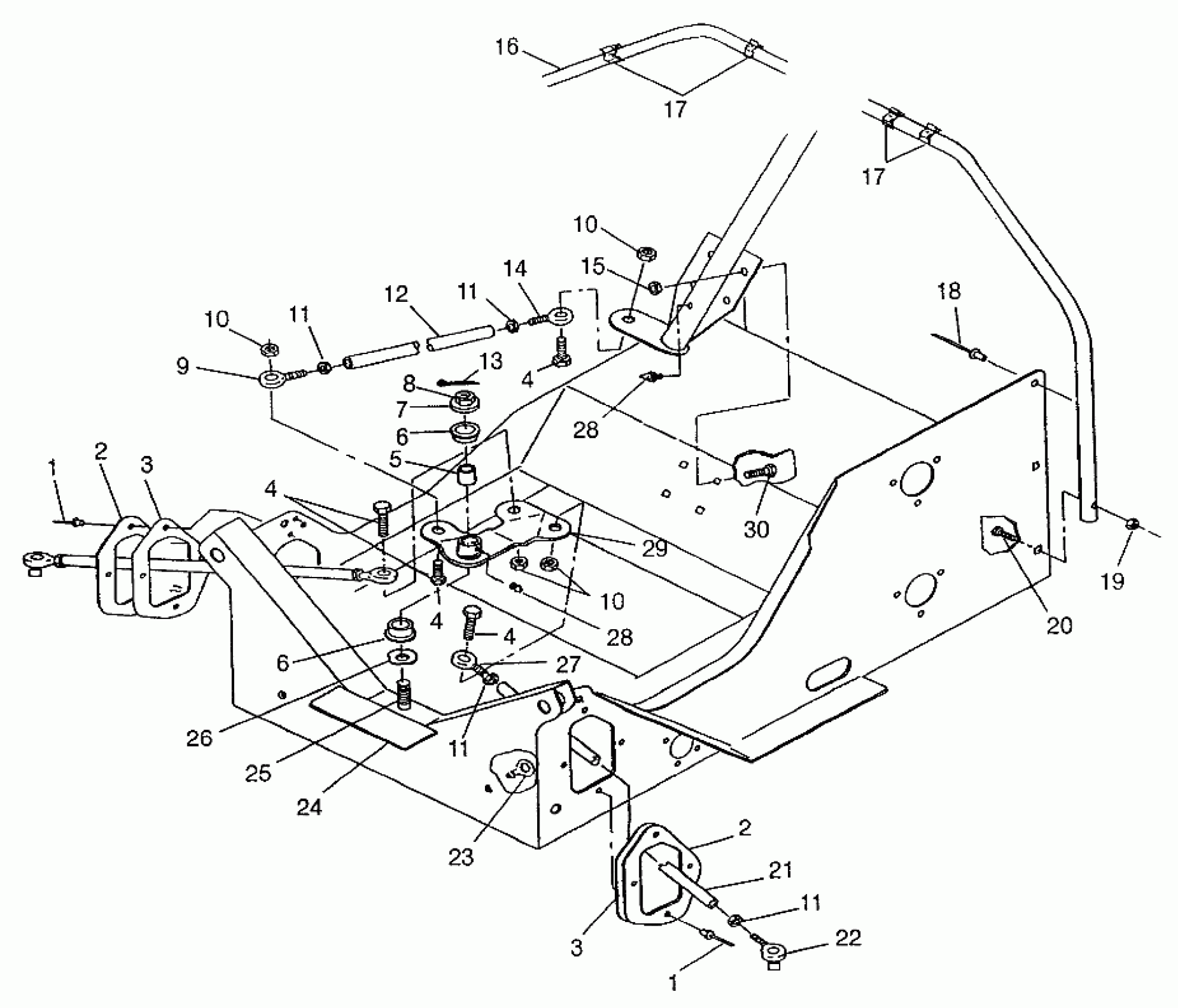

Polaris WIDETRAK LX - 0972065 STEERING WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822B004) Diagram
#
1
POP RIVET(50)
7621323
$1.49
1
POP RIVET(50)
7621323
$1.49
2
PLATE,BOOTSEAL,BLK.
5222942-067
$9.70
2
PLATE,BOOTSEAL,BLK.
5222942-067
$9.70
3
BOOT,TIEROD
5410761
$12.94
3
BOOT,TIEROD
5410761
$12.94
4
BOLT(10)
7512404
$3.99
4
BOLT(10)
7512404
$3.99
4
BOLT(10)
7512404
$3.99
4
BOLT(10)
7512404
$3.99
5
BUSHING
5010340
Unavailable
6
BUSHING
3563907
$3.99
6
BUSHING
3563907
$3.99
7
WASHER(10)
7555721
$1.49
8
NUT FLEX,(10)
7542703
Unavailable
9
ROD END,LH
7060166
$48.56
10
NUT LOCK(10)
7542403
$3.99
10
NUT LOCK(10)
7542403
$3.99
10
NUT LOCK(10)
7542403
$3.99
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
11
NUT HEX(10)
7542401
$2.39
11
NUT
7542424
$1.49
12
ROD,DRAG LINK
5333372
Unavailable
13
PIN COTTER(10)
7661203
$1.49
14
ROD END,RH
7060167
$48.56
15
NUT FLEX-LOC(10)
7542303
$6.39
16
HOOP,STEERING,BLK.
1011819-067
Unavailable
17
CLIP(10)
7080278
$2.63
17
CLIP(10)
7080278
$2.63
18
RIVET-3/16-.090-.290
7661637
$1.49
19
NUT-LOCK(10)
7542122
$1.49
20
BOLT-CARRIAGE(10)
7512275
$3.99
21
ROD,TIE,BLK
5020878-067
Unavailable
22
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
23
CLIP, PLASTIC(10)
4020139
$4.79
24
BLOCK,STRG,(CAST)
5630563
$32.37
25
BOLT(10)
7512682
Unavailable
26
WASHER,WAVE(10)
7555735
$3.99
27
ROD END, LH.
7060164
$48.56
28
ZERK,FITTING,THREADED(10)
7080433
$1.49
28
ZERK,FITTING,THREADED(10)
7080433
$1.49
29
STRG.ASM,CTR. (Incl. 6, 28)
1822217
$56.65
30
BOLT(10) Substituted by 7512377
7512394
Unavailable
