RACK and TUNNEL EXTENSION WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E97 (4938223822A014)

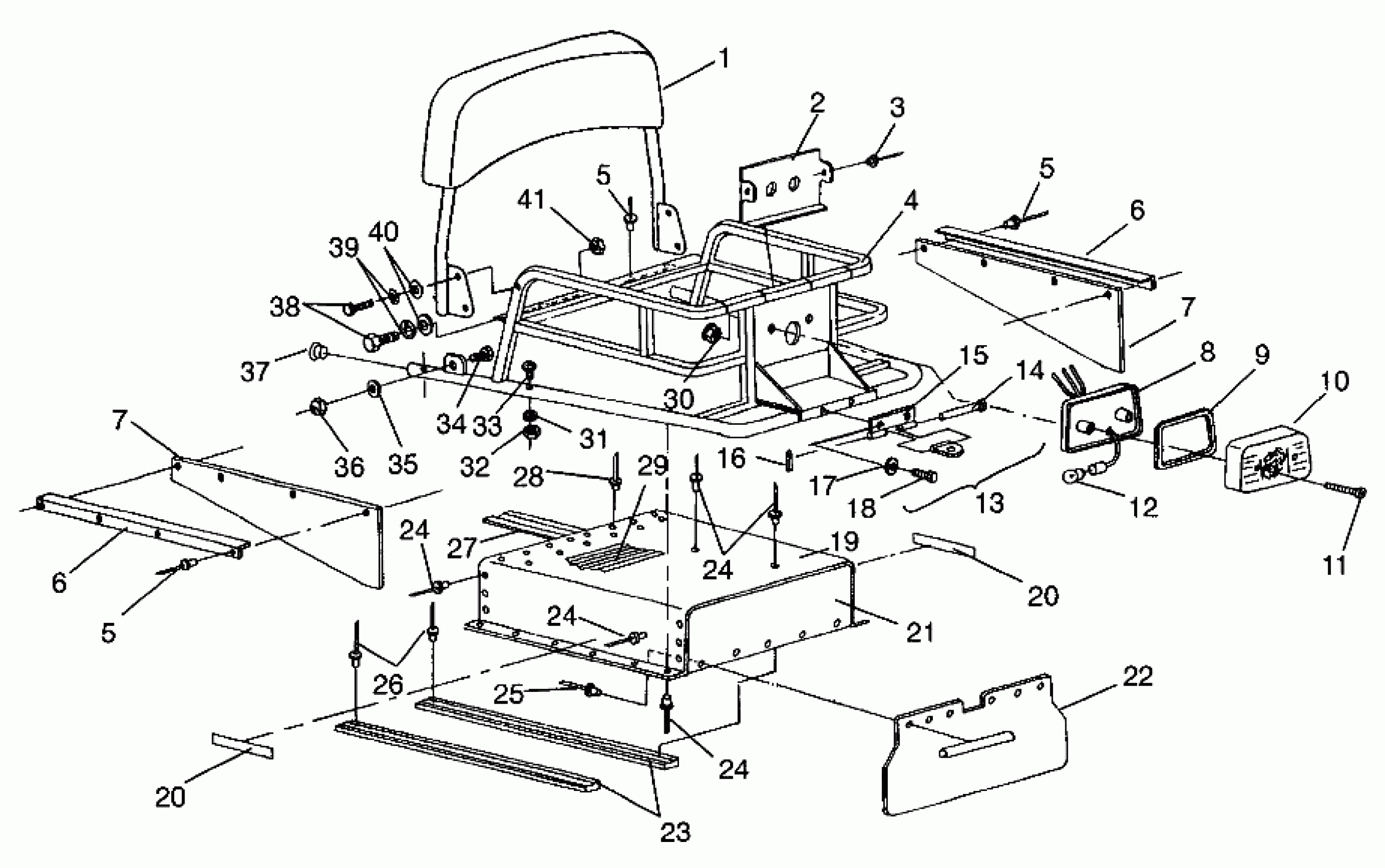

Polaris WIDETRAK LX - 0972065 RACK and TUNNEL EXTENSION WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E97 (4938223822A014) Diagram
#
1
COVER,BACKREST
2682143
Unavailable
1
BACKREST ASM. (Incl. 2)
2682144
Unavailable
2
SHIELD,TAILLIGHT
5222868-067
$20.63
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
RACK,BLK,'LX'
1012076-067
$258.99
5
RIVET(50)
7621462
$1.49
5
RIVET(50)
7621462
$1.49
5
RIVET(50)
7621462
$1.49
6
BRKT,SNOW-FLAP
5220497-067
$12.39
6
BRKT,SNOW-FLAP
5220497-067
$12.39
7
SNOW FLAP-SIDE
5810222
Unavailable
7
SNOW FLAP-SIDE
5810222
Unavailable
8
TAILLIGHT ASM. (Incl. 8-12)
2432035
Unavailable
8
BASE&SOCKET,T/L
4032047
Unavailable
9
GASKET,TAILLIGHT
4032045
$4.03
10
LENS,TAILLIGHT
4032046
$32.37
11
Screw, Taillight
4032029
$4.79
12
BULB,TAILLIGHT Substituted by 4030063
4030044
Unavailable
13
HITCH WELD, BLK. Substituted by 2871178 (US Only)
1011624-067
Unavailable
13
HITCHKIT,L.T./STARTRAK (Incl. 14-18)
2870708
Unavailable
14
CLEVIS PIN(10) (US Only)
7662209
$9.59
15
HITCH WELD,BLK.(U.S.) (US Only)
1011518-067
$31.75
16
COTTER PIN(10) (US Only)
7661401
$1.49
17
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
18
SCREW(10)
7512490
$3.99
19
EXTENSION,TUNNEL,REAR,LX
5240516
$68.08
20
REFLECTOR RED
2670070
$9.91
20
REFLECTOR RED
2670070
$9.91
21
PANEL,R.EXTENSION
5240530
$34.08
22
FLAP,SNOW(WIDETRAK)
5410553
Unavailable
23
STRIP, WEAR, EXT.
5222448
$17.46
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
24
RIVET-3/16-.090-.290
7661637
$1.49
25
POP RIVET(50)
7621418
$1.49
26
RIVET(50)
7621449
$3.19
27
BRKT,HARNESS PROTECTOR
5222323
$24.27
28
RIVET(50)
7621429
$1.49
29
PROTECTOR, BED
5410560
$51.99
30
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
31
WASHER(10) Substituted by 7558301
7555776
Unavailable
32
NUT(10)
7542124
Unavailable
33
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
34
BOLT(10)
7515522
$3.99
35
WASHER(10)
7552603
$1.49
36
NUT(10)
7542458
$9.59
37
PLUG(10)
5430713
Unavailable
38
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
39
WASHER(10)
7552606
$4.79
40
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
41
NUT-5/16-18 NYLOK-Y
7542324
$1.49
