PISTON and CRANKSHAFT WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822C010)

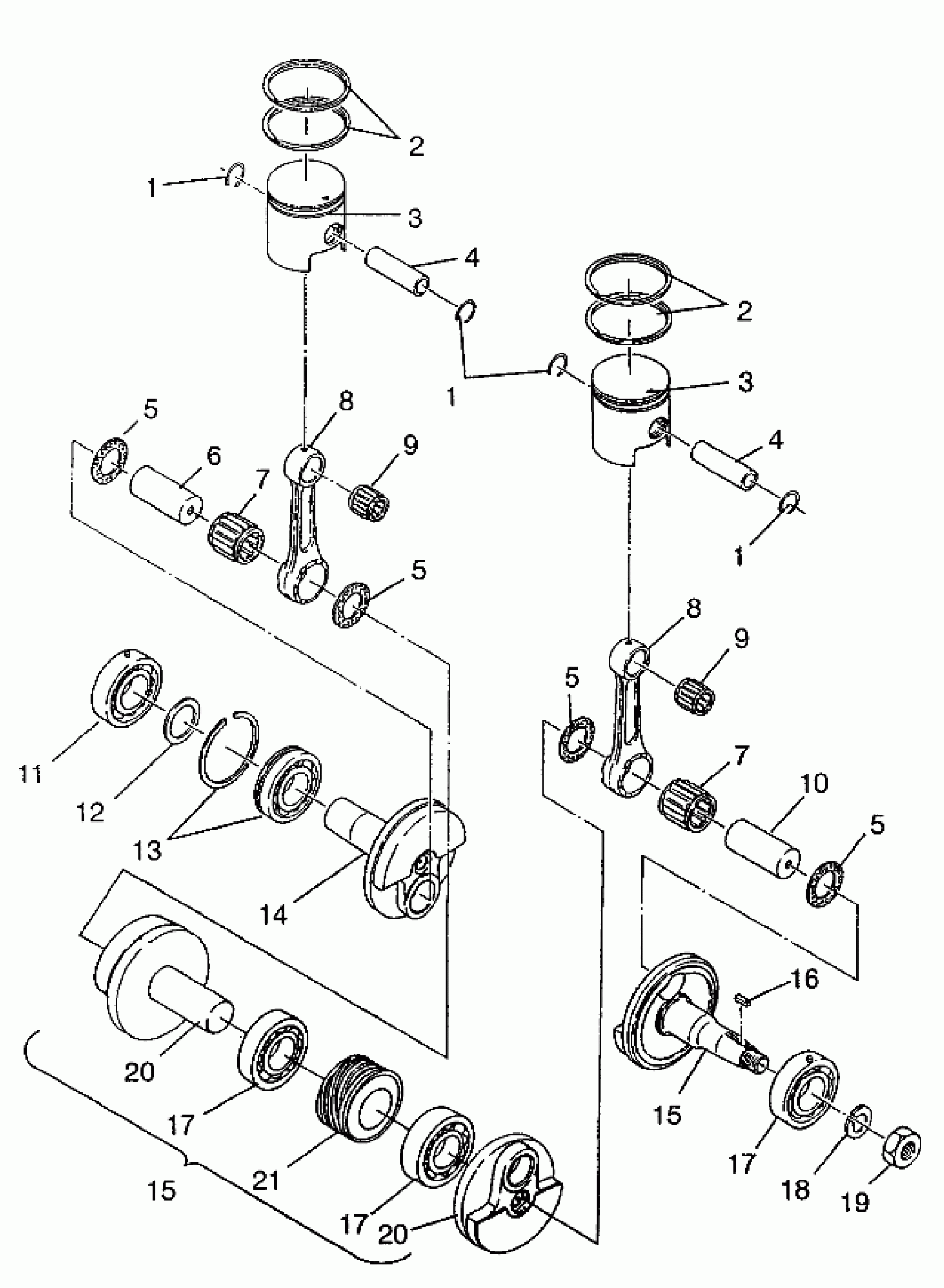

Polaris WIDETRAK LX - 0972065 PISTON and CRANKSHAFT WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822C010) Diagram
#
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
1
CLIP,PISTON PIN,(10)
3083839
$4.75
2
RING,PISTON,.010 O/S (0.25mm/.010" O/S)
3083970
Unavailable
2
RING,PISTON,.020 O/S (0.50mm/.020" O/S)
3083971
Unavailable
2
RING, PISTON,STD. (Standard)
3083963
Unavailable
2
RING,PISTON,.010 O/S (0.25mm/.010" O/S)
3083970
Unavailable
2
RING,PISTON,.020 O/S (0.50mm/.020" O/S)
3083971
Unavailable
2
RING, PISTON,STD. (Standard)
3083963
Unavailable
3
PISTON * (Standard)
3083942
Unavailable
3
PISTON,.020 O/S (0.50mm/.020" O/S)
3083944
Unavailable
3
PISTON,.010 O/S (0.25mm/.010" O/S)
3083943
Unavailable
3
PISTON * (Standard)
3083942
Unavailable
3
PISTON,.020 O/S (0.50mm/.020" O/S)
3083944
Unavailable
3
PISTON,.010 O/S (0.25mm/.010" O/S)
3083943
Unavailable
4
Pin, Piston
3083838
$27.99
4
Pin, Piston
3083838
$27.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
Pin, Crank, 2
3083456
Unavailable
7
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
7
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
ROD-CONNECTING
3083252
$164.99
8
ROD-CONNECTING
3083252
$164.99
9
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
9
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
10
PIN,CRANK
3083233
$36.41
11
BALL BEARING
3085205
Unavailable
12
Spacer
3085203
$6.39
13
BALL BEARING
3085204
Unavailable
14
CRANKSHAFT 3 (PTO Side)
3085202
Unavailable
15
CRANKSHAFT #1 (Mag Side)
3083362
Unavailable
15
CRANKSHAFT ASM (Incl. 5-8,10-15,17,20)
3085206
$1,299.99
15
CRANKSHAFT #1 (Mag Side)
3083362
Unavailable
15
CRANKSHAFT ASM (Incl. 5-8,10-15,17,20)
3085206
$1,299.99
16
KEY
3081447
Unavailable
17
BEARING, BALL
3084586
$44.99
17
BEARING, BALL
3084586
$44.99
17
BEARING, BALL
3084586
$44.99
18
WASHER-SPRING(10)
3083094
$3.17
19
NUT
3083093
$19.99
20
CRANKSHAFT 2 (Center) (Incl. 6, 10)
3083713
$583.49
20
CRANKSHAFT 2 (Center) (Incl. 6, 10)
3083713
$583.49
21
GEAR,DRIVE,OIL PUMP
3083782
$102.13
