FRONT SUSPENSION and SKI WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972 (4938223822B001)

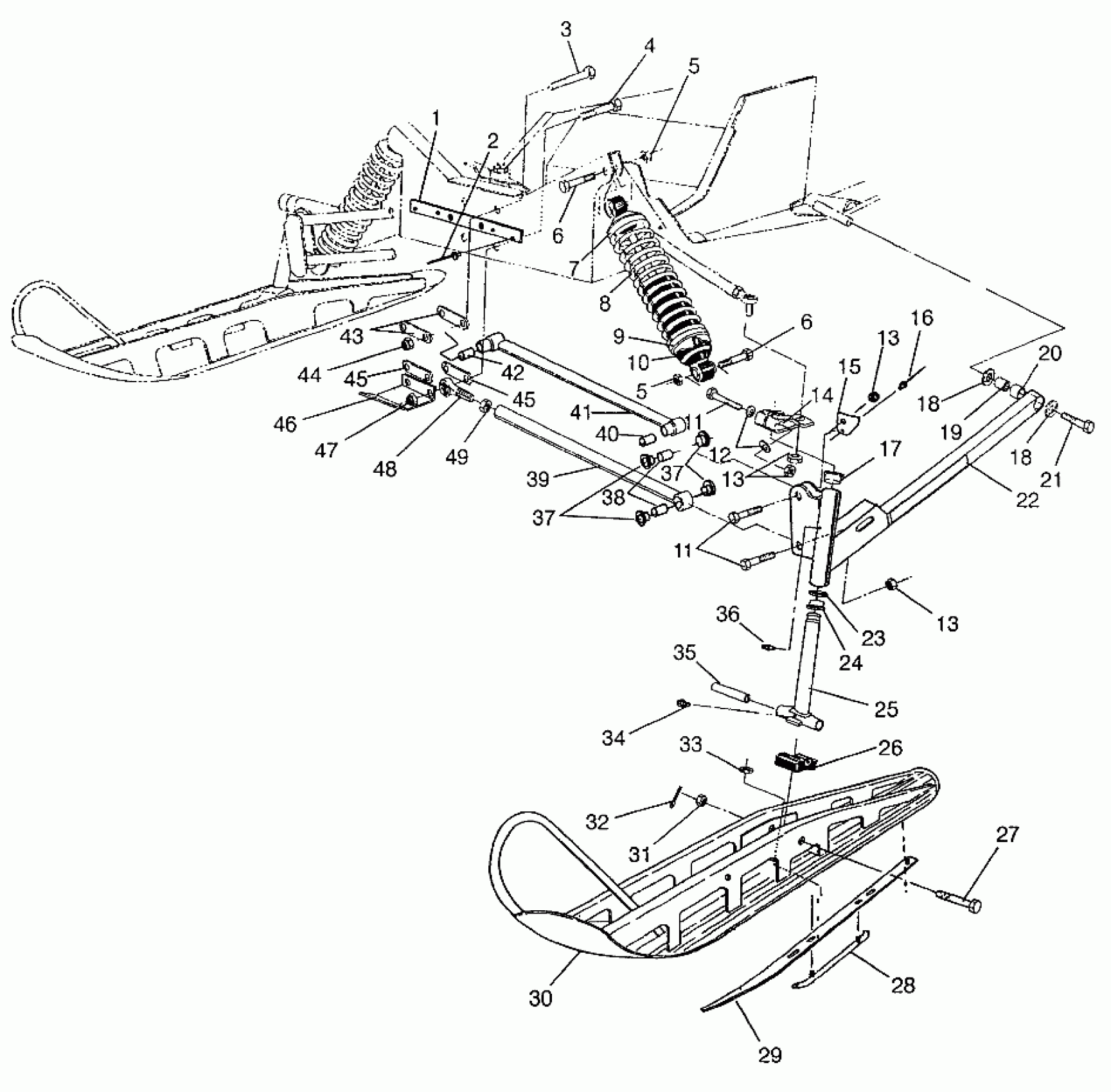

Polaris WIDETRAK LX - 0972065 FRONT SUSPENSION and SKI WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972 (4938223822B001) Diagram
#
-
SKAG,PR,3'' CRABIDE,E-Z STEER (Incl. 28, 29, 33)
2870976
Unavailable
1
BRACE,BULKHEAD
5240349-067
$6.63
2
RIVET-3/16-.090-.290
7661637
$1.49
3
BOLT(10)
7512582
$8.79
4
BOLT(10)
7512678
$19.99
5
NUT, NYLOC(10)
7542453
Unavailable
5
NUT, NYLOC(10)
7542453
Unavailable
6
BOLT(10) Substituted by 7515415
7515515
Unavailable
6
BOLT(10) Substituted by 7515415
7515515
Unavailable
7
RETAINER-TOP
5220225
$10.39
8
SPRING,COMP.,BLK.
7041261-067
$164.99
9
SPACER,SHOCK RETAINER(10)
5210953
$6.39
10
SHOCK,IFS
7041535
$214.99
11
BOLT(10) Substituted by 7517583
7515491
Unavailable
11
BOLT(10) Substituted by 7517583
7515491
Unavailable
12
WASHER(10) Substituted by 7555832
7555851
Unavailable
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
14
ARM,STRG,BLK
5241560-067
Unavailable
15
STOP,LH,STRG,BLK.
5241569-067
$7.27
15
STOP,RH,STRG,BLK.
5241570-067
$7.27
16
RIVET(50) Substituted by 7661130
7661643
Unavailable
17
BUSHING-FLANGE
3573909
$2.39
18
WASHER(10)
7555721
$1.49
18
WASHER(10)
7555721
$1.49
19
TUBE, BUSHING
5010310
$9.70
20
PIVOT,TRLG.ARM,RUBBER
5410872
$10.99
21
BOLT(10)
7512557
$7.60
22
ARM,TRLG,LH (Incl. 19, 20)
1822485
$281.49
22
ARM,TRLG,RH (Incl. 19, 20)
1822486
Unavailable
23
WASHER SPECIAL(10)
7556509
$1.59
24
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
25
SHAFT,SPINDLE,TRLG,BLK
6230102-067
$294.99
26
Stop, Rubber
5411083
$12.94
27
BOLT(10)
7515462
$8.79
28
SKAG,CARBIDE'EZ STEER' (Pair)
2870997
$71.99
29
Plate, Skag
1011829-067
$54.99
30
SKI WELD
1820430-067
Unavailable
31
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
32
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
33
NUT-5/16-18 NYLOK-Y
7542324
$1.49
34
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
35
BUSHING,PIVOT,(10)
5010158
$19.99
36
ZERK,FITTING,THREADED(10)
7080433
$1.49
37
BUSHING-RADIUS ROD,(10)
5010127
$7.99
37
BUSHING-RADIUS ROD,(10)
5010127
$7.99
38
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
39
ROD,RAD,LOWER,BLK
1822444-067
$60.70
40
BUSHING,RAD.ROD PIVOT,3/8
5411099
$11.99
41
ROD,RAD,UP.,FIXED
1822420
$119.99
42
BUSHING,PIVOT,7/16
5411095
$15.99
43
STRAP,SPACER TOP
5211344
$7.27
44
NUT, LOCK,(10)
7542503
$10.39
45
STRAP,SPACER BOTTOM
5211345
$12.99
45
STRAP,SPACER BOTTOM
5211345
$12.99
46
BRACE, PAN
5223997-067
Unavailable
47
NUT FLEX,(10)
7542703
Unavailable
48
ROD END,RH Substituted by 7061011
7060156
Unavailable
49
NUT-JAM(10)
7542711
$2.39
