DRIVESHAFT WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822B012)

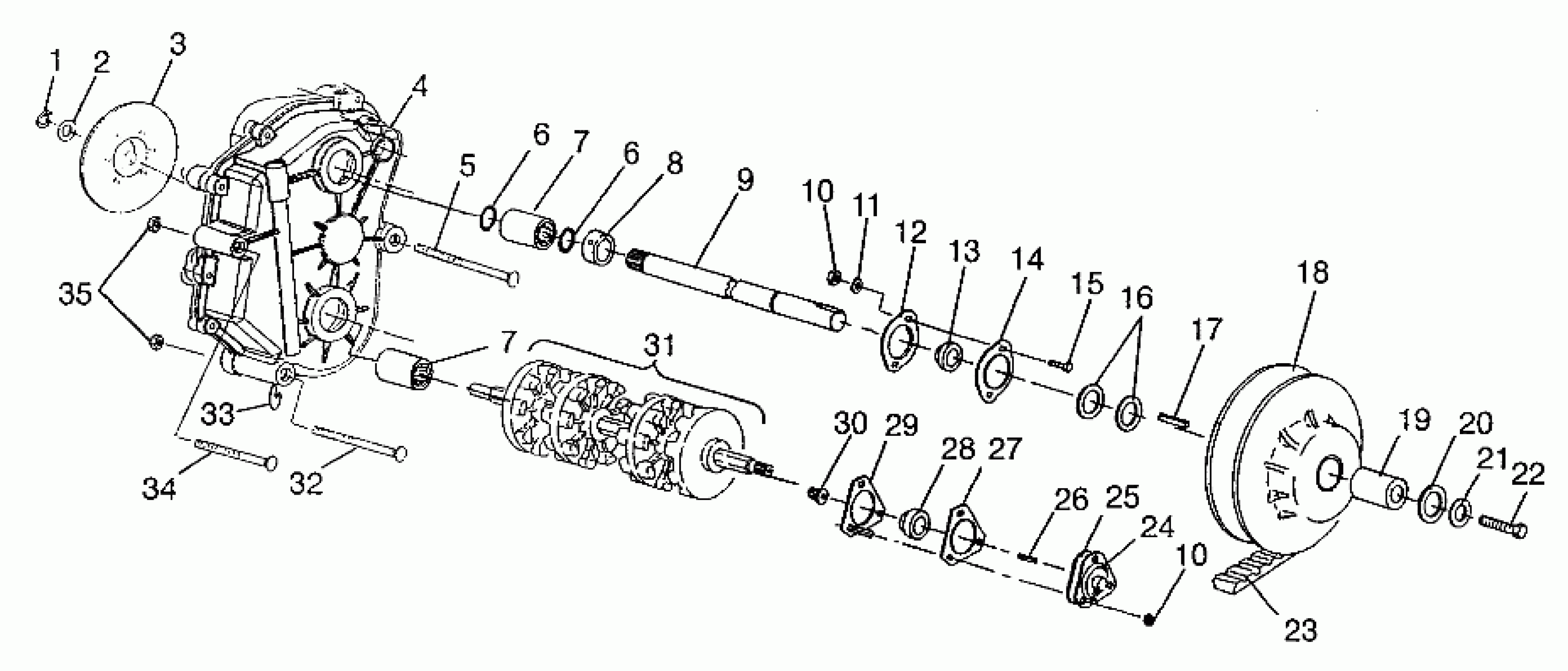

Polaris WIDETRAK LX - 0972065 DRIVESHAFT WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822B012) Diagram
#
1
RING,RETAINING(10) Substituted by 7710436
7713401
Unavailable
2
BUSHING,MACH.,(10)
7555922
$6.39
3
DISC,BRAKE ASM.
1910217
Unavailable
4
Asm., Gearcase (See Pg. for Details)
-------
Unavailable
5
BOLT
7517291
$15.99
6
O-Ring
5410630
$2.02
6
O-Ring
5410630
$2.02
7
ZERK, GREASE(10)
7080437
$14.21
7
COUPLER ASM,19T,W/GREASE ZERK Substituted by 1332260 (Incl. Fitting)
1332198
$198.48
7
ZERK, GREASE(10)
7080437
$14.21
7
COUPLER ASM,19T,W/GREASE ZERK Substituted by 1332260 (Incl. Fitting)
1332198
$198.48
8
COLLAR, SHAFT
7010038
Unavailable
9
JACKSHAFT,19T,BLK,(W.T.) Substituted by 1332210 (Incl. 13)
6230124-067
Unavailable
10
NUT-5/16-18 NYLOK-Y
7542324
$1.49
10
NUT-5/16-18 NYLOK-Y
7542324
$1.49
11
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
12
FLANGETTE, (2-BOLT)
5222393
Unavailable
13
BEARING,1 IN.(GREASEABLE)
3514511
Unavailable
14
FLANGETTE,(GREASABLE)
5222647
$24.27
15
BOLT(10) Substituted by 7512377
7512394
Unavailable
16
WASHER SPECIAL(10)
7556509
$1.59
17
KEY-SQUARE(10)
7721204
$3.19
18
Asm., Driven Clutch (See Pg., Ref.)
-------
Unavailable
19
SPACER,INLET SHAFT
5431482
$24.79
20
WASHER(10)
7555806
$1.49
21
WASHER, SPRING(10)
7571626
Unavailable
22
BOLT(10)
7515502
$5.59
23
BELT,DRIVE,28 DEG.(5)
3211070
$114.99
24
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
25
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
26
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
27
FLANGETTE Substituted by 5243529
5241178
$13.75
28
BEARING,LUBE. Substituted by 3514525
3514526
$31.75
29
FLANGETTE ASM,,W/ SCREWS Substituted by 1012945
1012434
Unavailable
30
BUSHING METAL SPEEDO
3280019
$11.99
31
DRIVESHAFT ASM,PRESS BRG,WIDE Substituted by 1590285 (Incl. 30)
1590255
Unavailable
32
BOLT
7517292
$19.99
33
SPACER,(10) (.080)
5210760
Unavailable
33
SPACER,(10) (.063)
5210759
Unavailable
33
SPACER,(10) (.020)
5210764
Unavailable
33
SHIM,.010,GEARCASE (.010)
5211065
Unavailable
34
BOLT(10)
7515474
$3.33
35
NUT(10)
7542423
$3.99
