COOLING SYSTEM WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822C005)

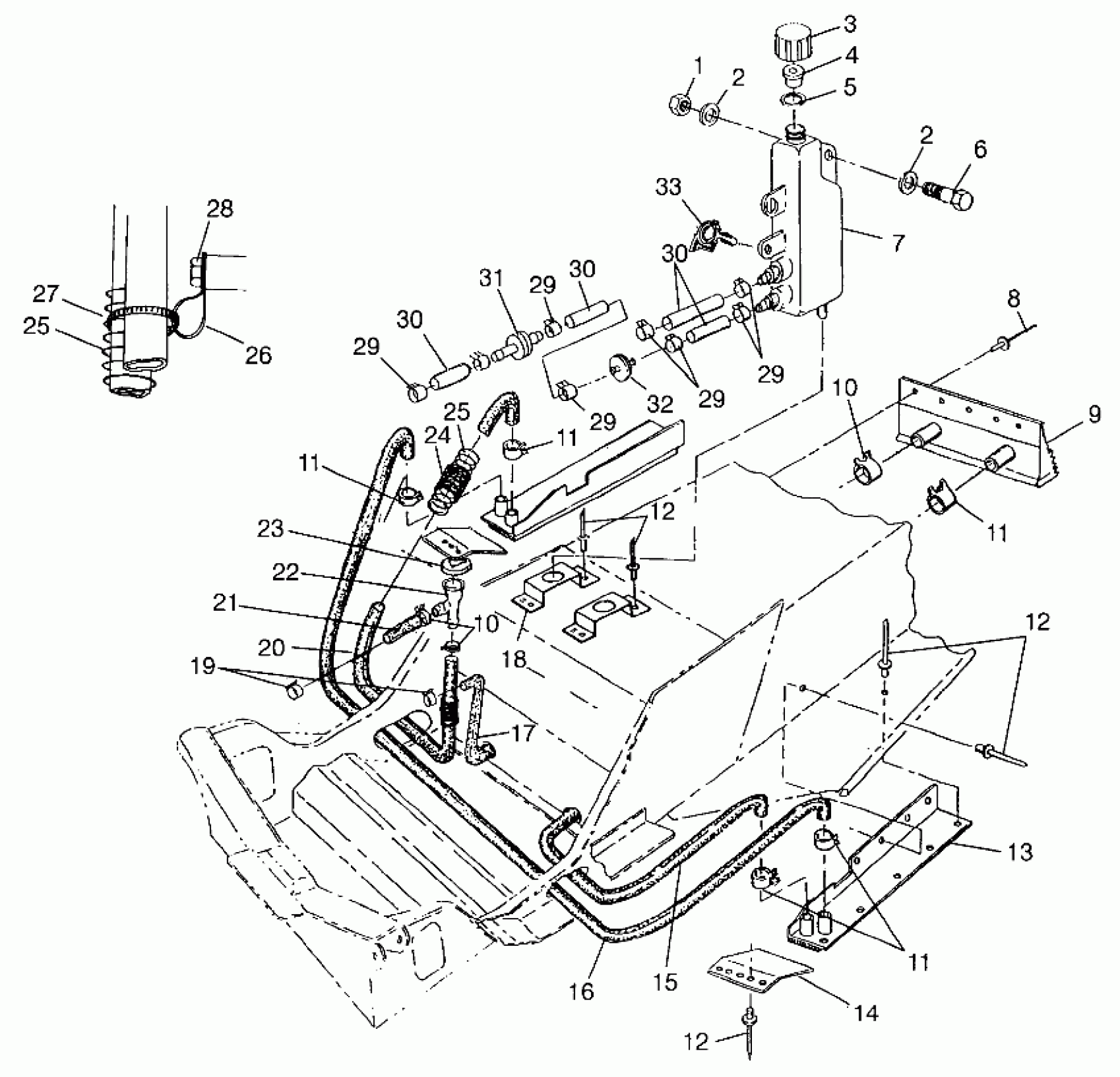

Polaris WIDETRAK LX - 0972065 COOLING SYSTEM WIDETRAK LX 0972065 and EUROPEAN WIDETRAK LX E972065 (4938223822C005) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXT,CTR.COOLING
2511187
Unavailable
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Grey)
7080564
$10.32
10
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844 (Grey)
7080564
$10.32
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
11
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841 (Silver)
7080562
Unavailable
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
COOLER,LH,SIDE(XTRA 10) Substituted by 1240059
2511257
$144.99
13
COOLER,RH,SIDE(XTRA 10)
2511258
$227.99
14
GUARD,COOL.EXT.
5240555
$11.59
15
HOSE,CROSSOVER,SHORT
5410558
$19.68
16
HOSE,CROSSOVER
5410557
Unavailable
17
HOSE,ENG.OUT/FILLER
5411156
Unavailable
18
BRKT,OILTANK,COINED
5241334
$9.70
19
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842 (Black)
7080563
Unavailable
20
HOSE,RH,FILLER OUT,EXTRUSION
5411011
Unavailable
21
HOSE,ENG.OUT/FILLER
5411010
$24.27
22
FILLER,REMOTE COOLANT Substituted by 5433364
5431931
Unavailable
23
CAP,PRESS.(19-21 LB.)
2511256
Unavailable
24
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
25
SPRING,HOSE RETAINER
7041079
$4.95
25
SPRING,HOSE RETAINER
7041079
$4.95
26
CLAMP(10)
7080583
Unavailable
27
STRAP,8 IN.TYTON NOTE: Bolt is lower gearcase mounting bolt.
7080571
$2.47
29
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
29
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
30
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
30
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
30
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
$84.99
31
VALVE, CHECK
7052038
$10.51
32
FILTER,COOLANT,LGE.
2530024
Unavailable
33
CLIP, PLASTIC(10)
4020139
$4.79
