SUSPENSION ASSEMBLY WIDETRAK GT / X932061 (4924722472019A)

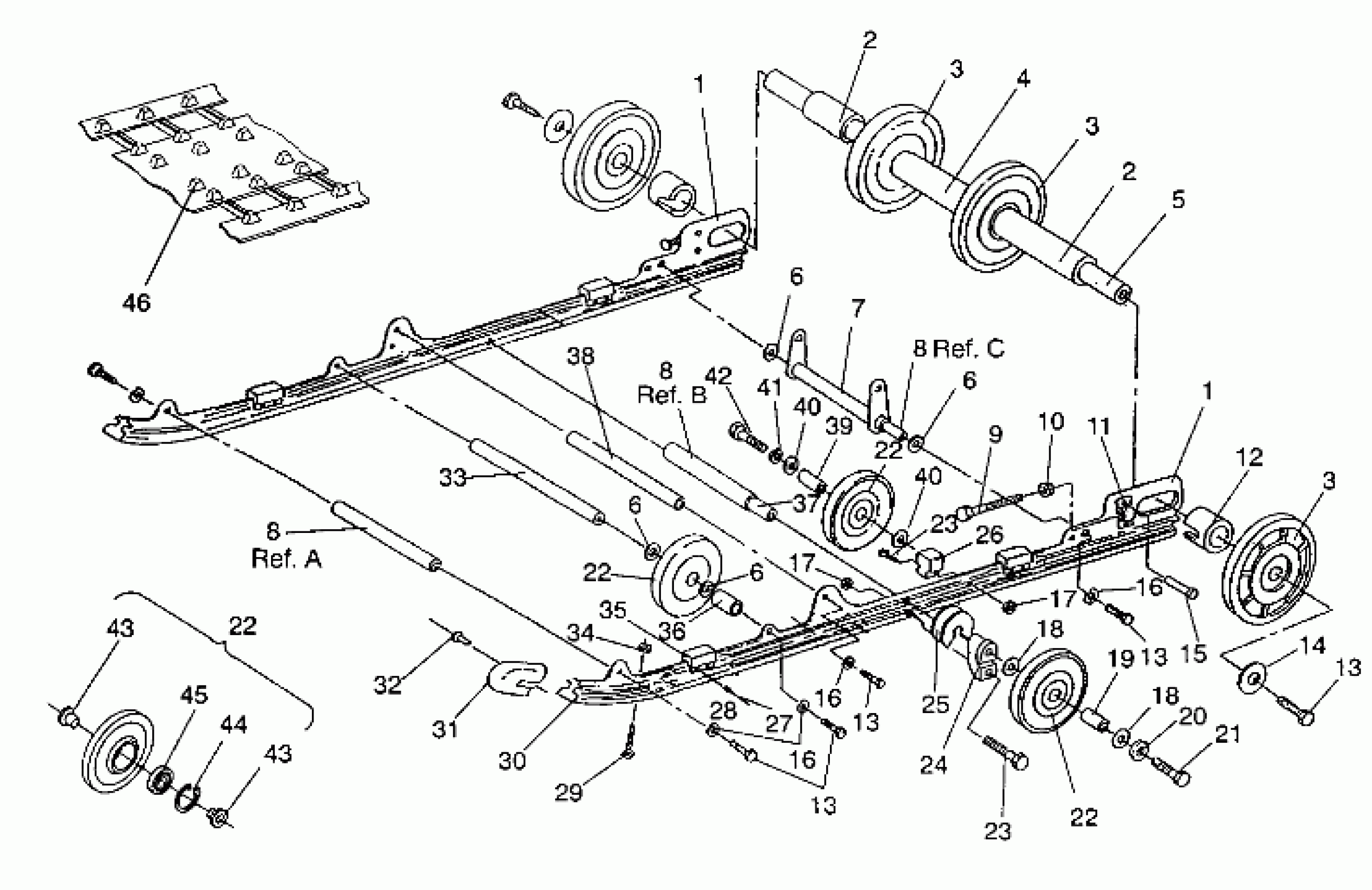

Polaris Widetrak GT - X932061 SUSPENSION ASSEMBLY WIDETRAK GT / X932061 (4924722472019A) Diagram
#
1
RAIL ASM,LH,141"(W'TRAK>) Substituted by 1541126 (Incl.11, 28, 31, 35)
1540771
Unavailable
1
RAIL ASM,RH,141"(W'TRAK>) Substituted by 1541127 (Incl.11, 28, 31, 35)
1540772
Unavailable
1
RAIL ASM,LH,141"(W'TRAK>) Substituted by 1541126 (Incl.11, 28, 31, 35)
1540771
Unavailable
1
RAIL ASM,RH,141"(W'TRAK>) Substituted by 1541127 (Incl.11, 28, 31, 35)
1540772
Unavailable
2
SPACER,R.IDLER SIDE
5333037
Unavailable
2
SPACER,R.IDLER SIDE
5333037
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER,R.IDLER,INNER
5333013
Unavailable
5
SHAFT, R.IDLER Substituted by 5020717
5020552
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
ARM,R.PIVOT,BLK.
1540652-067
$74.99
8
SHAFT,PIVOT ARM,FR. Substituted by 5020718 (A)
5020551
Unavailable
8
SHAFT,PIVOT ARM,FR. Substituted by 5020718 (B)
5020551
Unavailable
8
SHAFT,PIVOT ARM,FR. Substituted by 5020718 (A)
5020551
Unavailable
8
SHAFT,PIVOT ARM,FR. Substituted by 5020718 (B)
5020551
Unavailable
8
SHAFT,PIVOT ARM,FR. Substituted by 5020718 (A)
5020551
Unavailable
8
SHAFT,PIVOT ARM,FR. Substituted by 5020718 (B)
5020551
Unavailable
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
BOLT(10) Substituted by 7512492
7515458
Unavailable
13
BOLT(10) Substituted by 7512492
7515458
Unavailable
13
BOLT(10) Substituted by 7512492
7515458
Unavailable
13
BOLT(10) Substituted by 7512492
7515458
Unavailable
14
WASHER FLAT(10)
7555732
Unavailable
15
RIVET,(50)
7621501
$2.39
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
17
NUT LOCK(10)
7542403
$3.99
17
NUT LOCK(10)
7542403
$3.99
18
WASHER, FLAT(10)
7555852
$2.39
18
WASHER, FLAT(10)
7555852
$2.39
19
SPACER, WHEEL
5333116
$7.99
20
WASHER LOCK(10)
7553101
$3.99
21
BOLT(10)
7512538
$6.39
22
WHEEL, IDLER (Incl. 43- 45)
1543018
$56.65
22
WHEEL, IDLER (Incl. 43- 45)
1543018
$56.65
22
WHEEL, IDLER (Incl. 43- 45)
1543018
$56.65
22
WHEEL, IDLER (Incl. 43- 45)
1543018
$56.65
23
BOLT(10)
7512404
$3.99
23
BOLT(10)
7512404
$3.99
24
SPACER
5630399
$11.99
25
ROLLER, SPRING
5431366
$10.51
26
BRACKET,BOGIE WHEEL
5130570
$48.56
27
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
28
REINF., BUMPER
5222629
$13.75
29
SCREW(10)
7512227
$3.19
30
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
31
COVER-RAIL TIP
5430627
$32.37
32
RIVET(50)
7621435
$1.49
33
SHAFT Substituted by 5020720
5020555
Unavailable
34
NUT-LOCK(10)
7542122
$1.49
35
BUMPER, RAIL
5810554
$7.27
36
TUBE,OUTER SPACER
5333012
$12.99
37
SHAFT,REAR SHOCK Substituted by 5020719
5020651
Unavailable
38
SPACER,R.SHOCK
5333138
$39.99
39
SPACER
5332786
$7.99
40
WASHER(10)
7555804
$3.99
40
WASHER(10)
7555804
$3.99
41
LOCK WASHER(10)
7553201
$3.99
42
BOLT(10)
7512659
$7.99
43
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
43
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
44
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
45
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
46
TRACK,141 IN.(W'TRAK)
5410748
Unavailable
