RACK and TUNNEL EXTENSION ASSEMBLY WIDETRAK GT / X932061 (4924722472010A)

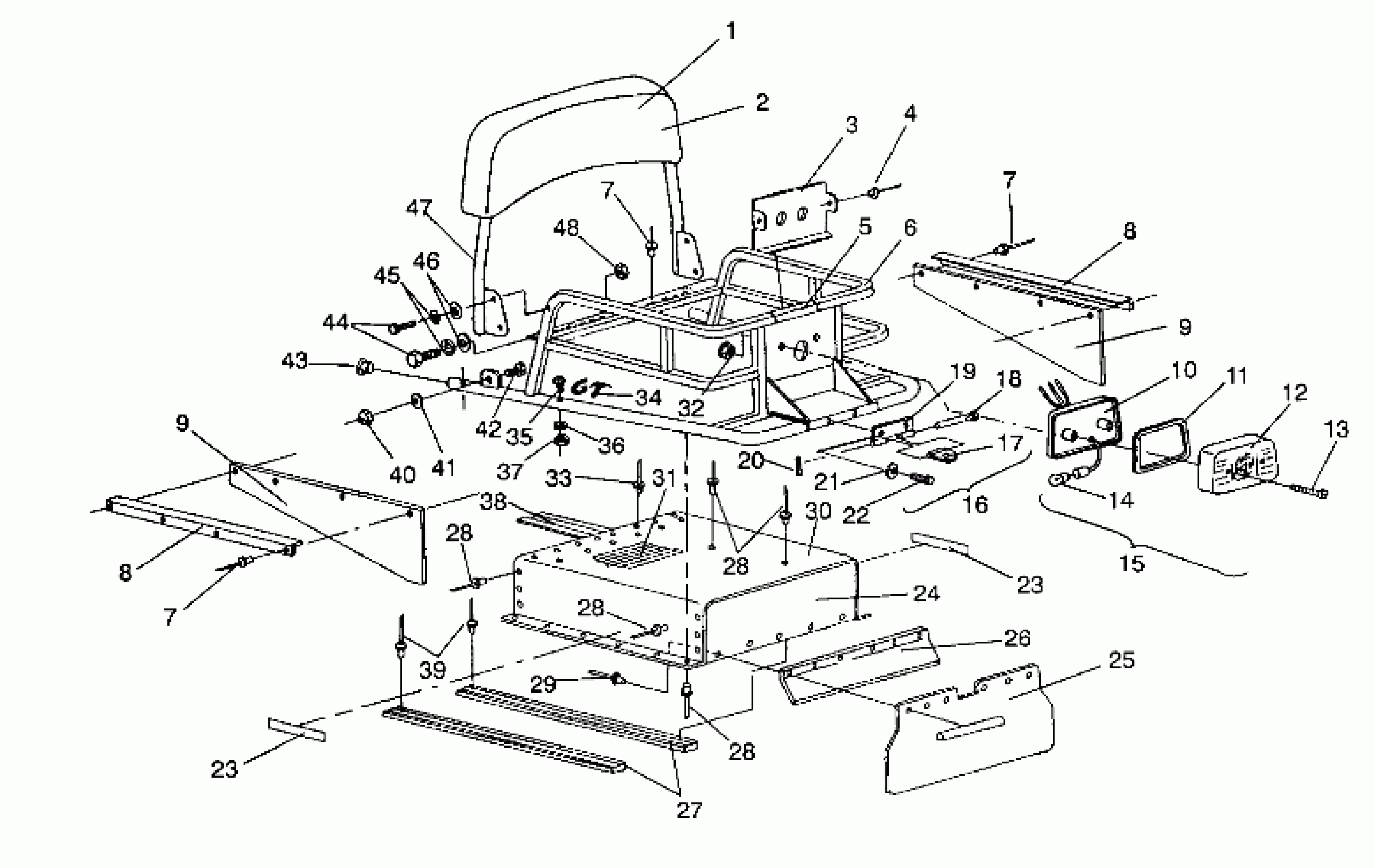

Polaris Widetrak GT - X932061 RACK and TUNNEL EXTENSION ASSEMBLY WIDETRAK GT / X932061 (4924722472010A) Diagram
#
1
BACKREST ASM. (Incl. 2 & 47)
2681465
Unavailable
2
COVER, BACKREST
2681265
$257.13
3
SHIELD, TAILLIGHT
5222960-067
$17.19
4
RIVET Substituted by 7661638
7661625
$1.19
5
DECAL,TRACK/SEAT,SILVER [No Longer Available]
7073123
Unavailable
6
RACK WELD, BLK.
1011941-067
Unavailable
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
8
BRKT,SNOWFLAP,BLK.
5222929-067
Unavailable
8
BRKT,SNOWFLAP,BLK.
5222929-067
Unavailable
9
FLAP,SNOW,SIDE
5810809
Unavailable
9
FLAP,SNOW,SIDE
5810809
Unavailable
10
BASE&SOCKET,T/L
4032047
Unavailable
11
GASKET,TAILLIGHT
4032045
$4.03
12
LENS,TAILLIGHT
4032046
$32.37
13
Screw, Taillight
4032029
$4.79
14
BULB,TAILLIGHT Substituted by 4030063
4030044
Unavailable
15
TAILLIGHT ASM. (Incl. 10-14)
2432035
Unavailable
16
HITCHKIT,L.T./STARTRAK (Incl. 17-22)
2870708
Unavailable
17
HITCH WELD, BLK. Substituted by 2871178
1011624-067
Unavailable
18
CLEVIS PIN(10)
7662209
$9.59
19
HITCH WELD,BLK.(U.S.)
1011518-067
$31.75
20
COTTER PIN(10)
7661401
$1.49
21
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
22
SCREW(10) Substituted by 7512490
7512402
Unavailable
23
REFLECTOR RED
2670070
$9.91
23
REFLECTOR RED
2670070
$9.91
24
PANEL,R.EXTENSION
5222966
Unavailable
25
FLAP,SNOW,(20'')
5810802
Unavailable
26
PLATE, ANGLE
5222968
Unavailable
27
EXT., WEAR STRIP
5211365
$12.43
28
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
28
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
28
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
28
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
29
POP RIVET(50)
7621418
$1.49
30
EXTENSION,TUNNEL
5222932
Unavailable
31
PROTECTOR, BED
5410754
Unavailable
32
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
33
RIVET(50)
7621429
$1.49
34
DECAL, RH, GT
7073870
Unavailable
34
DECAL, LH, GT
7073871
$12.99
35
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
36
WASHER(10) Substituted by 7558301
7555776
Unavailable
37
NUT(10)
7542124
Unavailable
38
BRKT,HARNESS PROTECTOR
5222933
Unavailable
39
RIVET(50)
7621449
$3.19
40
NUT(10)
7542458
$9.59
41
WASHER(10)
7552603
$1.49
42
BOLT(10)
7515522
$3.99
43
PLUG(10)
5430713
Unavailable
44
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
45
WASHER(10)
7552606
$4.79
46
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
47
BACKREST, BLK. Substituted by 2681465
1011781-067
$27.92
48
NUT-5/16-18 NYLOK-Y
7542324
$1.49
