HOOD ASSEMBLY WIDETRAK GT / X932061 (4924722472005A)

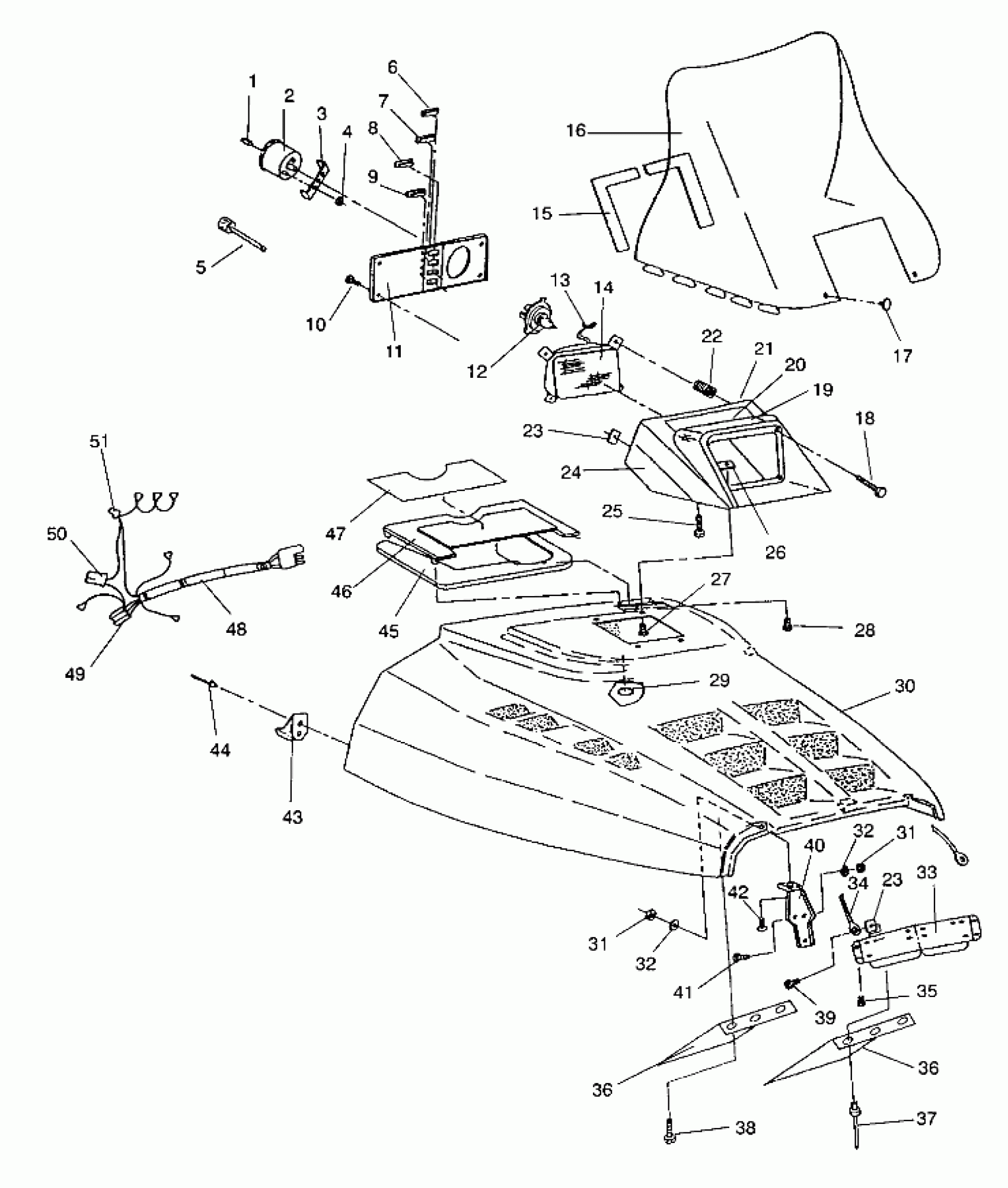

Polaris Widetrak GT - X932061 HOOD ASSEMBLY WIDETRAK GT / X932061 (4924722472005A) Diagram
#
1
KNOB,TRIP ODOMETER
3280103
$3.83
2
SPEEDOMETER (Incl. 3 & 4)
3280092
$111.99
3
BRACKET
3280098
Unavailable
4
NUT
3280063
Unavailable
5
CABLE,SPEEDO.
3280094
$60.70
6
INDICATOR,'ACC'WARN.
4040014
Unavailable
7
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
8
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
9
INDICATOR'REVERSE'WARN.
4040019
$28.32
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
BEZEL, INSTRUMENT
5431064
$16.67
12
BULB,QUARTZ.H/L,INDY
2870448
$24.99
13
RETAINER,H/L BULB
4032063
Unavailable
14
HEADLIGHT ASM.
4032040
Unavailable
15
PAD,W/S,LH,BLACK
5810437
Unavailable
15
PAD,W/S,RH,BLACK
5810438
$1.67
16
WINDSHIELD Substituted by 5431630
5431336
Unavailable
17
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
18
SCREW, ADJ.(10)
4032003
Unavailable
19
DECAL,POD WARN.TOP [No Longer Available]
7073111
Unavailable
20
DECAL,POD WARN.BOTT. [No Longer Available]
7073112
Unavailable
21
HSG,INST,TOP,BLK
5430923-070
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
24
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
25
SCREW(10)
7512009
Unavailable
26
NUT, SPEED(10)
7670057
$1.49
27
SCREW, SEMS(10)
7512283
$3.99
28
SCREW(10)
7511840
Unavailable
29
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
30
HOOD,W'TRAK,'91 Substituted by 2631581-136 (Incl. Foam & Foil)
5431278-136
Unavailable
31
NUT-LOCK(10)
7542122
$1.49
31
NUT-LOCK(10)
7542122
$1.49
32
WASHER,WROUGHT(10)
7558302
$1.59
32
WASHER,WROUGHT(10)
7558302
$1.59
33
PLATE,RE-INF.,(HD.)
5222105
$49.51
34
CABLE,HD.RETAINER
7080360
$24.27
35
SCREW(10)
7511861
Unavailable
36
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
36
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
37
POP RIVET(50)
7621425
$1.49
38
SCREW(10)
7511858
$3.99
39
SCREW(10)
7511989
Unavailable
40
HINGE ASM,HD,BLK
2635005-067
$16.67
41
BOLT(10)
7512193
$2.39
42
BOLT-CARRIAGE(10)
7512263
$3.99
43
CUP, HOOD LATCH,(10)
5430733
$4.84
44
RIVET(50)
7621334
$1.49
45
SEAL, INTAKE
5810597
Unavailable
46
PANEL,INTAKE(RED) Substituted by 2620078-136
5431195-136
Unavailable
47
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
48
HARNESS, HEADLIGHT
2460325
$20.13
49
HOUSING
4020052
Unavailable
50
Housing
4020115
$1.59
51
HOUSING
4020114
Unavailable
