Description

Price

1

CONSOLE,BLK(W'TRAK)

5222680-067

Unavailable

2

KIT-CHOKE CONTROL

2200188

$24.27

3

Cable, Choke Control

7080290

$105.22

4

SWITCH,H-BAR HEATER

4110066

Unavailable

4

SWITCH,H-BAR HEATER

4110066

Unavailable

5

Housing w/Receptacle

4020057

$3.51

6

CONNECTOR, BRAKE SWITCH

4020112

Unavailable

7

HARNESS, WIRE

2460333

Unavailable

8

DECAL, CONSOLE [No Longer Available]

7072973

Unavailable

9

NUT(10)

7541925

$1.49

10

REGULATOR, VOLTAGE

4060092

Unavailable

11

HEAT SINK

5210650

Unavailable

12

SCREW(10)

7512007

$3.99

13

RIVET Substituted by 7661638

7661625

$1.19

13

RIVET Substituted by 7661638

7661625

$1.19

14

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

5410611

Unavailable

15

KIT,IGN. SWITCH (Incl.14)

2200357

Unavailable

16

Nut

7080229

$19.99

17

WASHER-LOCK(10)

7571610

$3.99

18

RIVET,(50)

7621477

$1.19

19

GUIDE, RECOIL

5431385

$10.51

20

BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console.

5222682-067

Unavailable

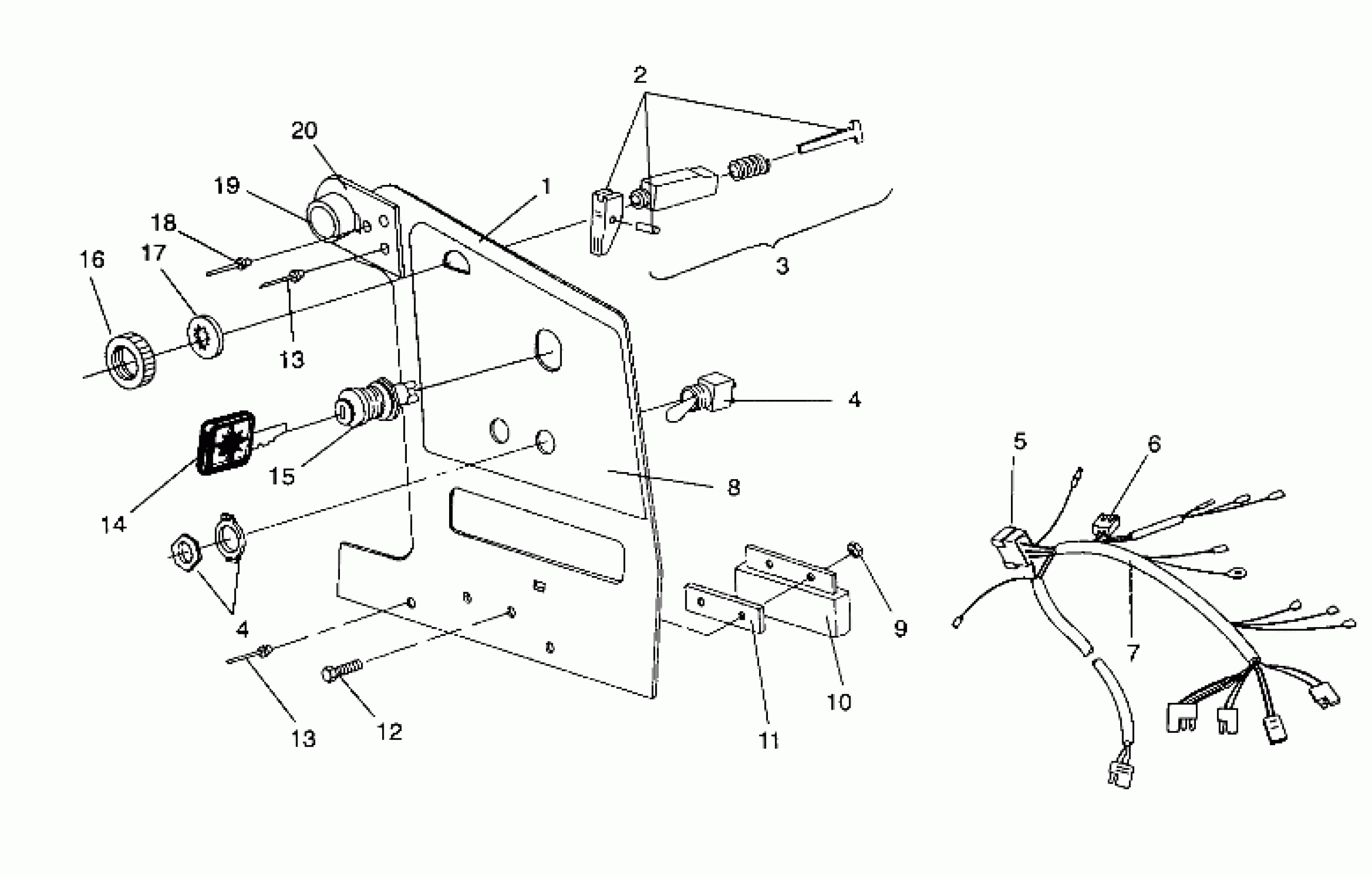

Polaris Widetrak GT - X932061 CONSOLE WIDETRAK GT / X932061 (4924722472009A) Diagram

CONSOLE,BLK(W'TRAK)

KIT-CHOKE CONTROL

Cable, Choke Control

SWITCH,H-BAR HEATER

SWITCH,H-BAR HEATER

Housing w/Receptacle

CONNECTOR, BRAKE SWITCH

HARNESS, WIRE

DECAL, CONSOLE [No Longer Available]

NUT(10)

REGULATOR, VOLTAGE

HEAT SINK

SCREW(10)

RIVET Substituted by 7661638

RIVET Substituted by 7661638

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

KIT,IGN. SWITCH (Incl.14)

Nut

WASHER-LOCK(10)

RIVET,(50)

GUIDE, RECOIL

BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console.
