CARBURETOR ASSEMBLY WIDETRAK GT / X932061 (4924722472031A)

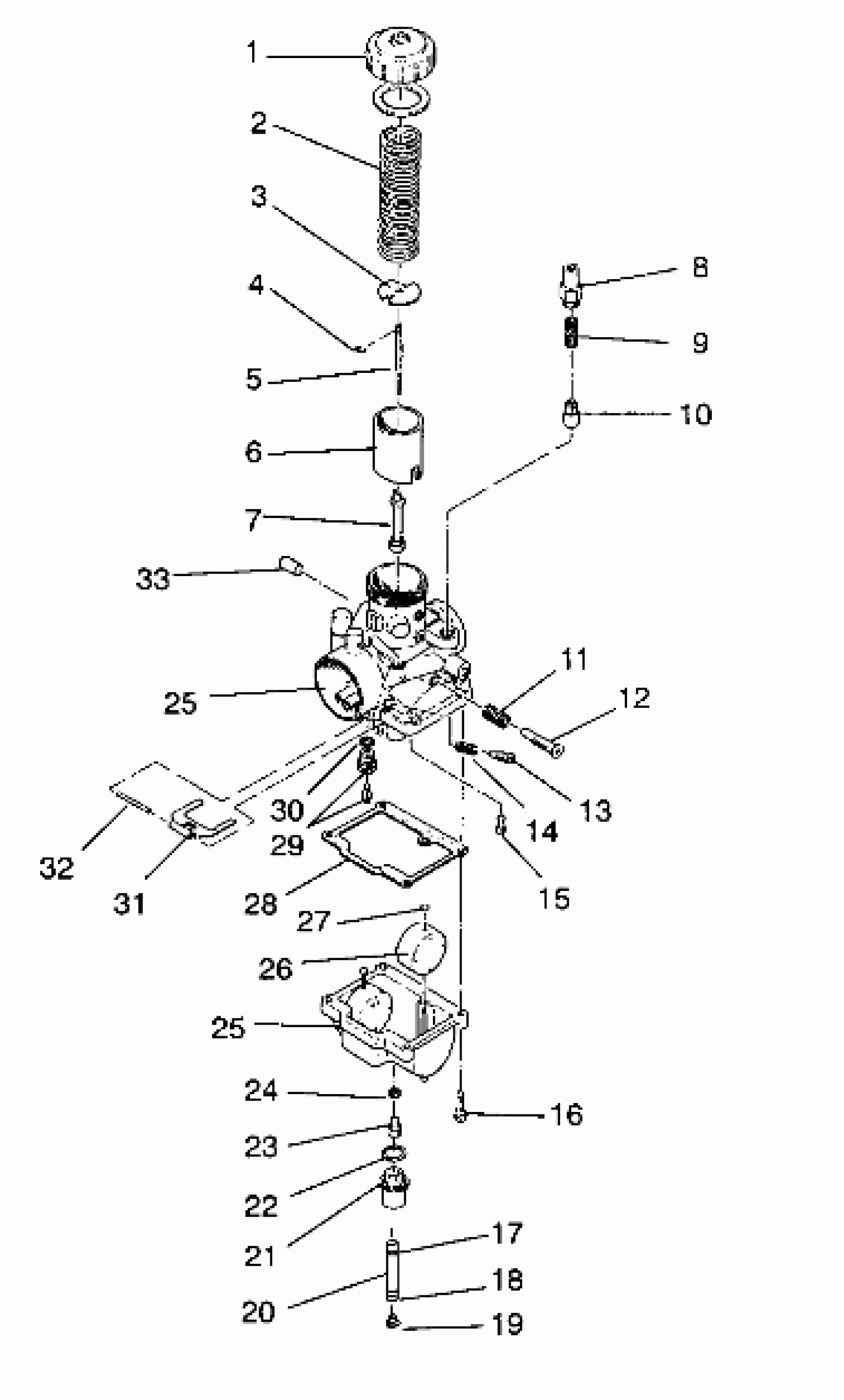

Polaris Widetrak GT - X932061 CARBURETOR ASSEMBLY WIDETRAK GT / X932061 (4924722472031A) Diagram
#
Description
Price
1
TOP ASM (Incl. Gasket)
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
JET NEEDLE (6DH7-3)
3130329
Unavailable
6
VALVE,THROTTLE,(3.0) (3.0)
3130372
$52.60
7
JET NEEDLE
3130160
$36.41
8
HOLDER,GUIDE
3130199
$28.32
9
SPRING,PLUNGER
3130006
$8.89
10
PLUNGER ASM, STARTER
3130328
$32.37
11
SPRING,THROTTLE ADJ.
3130010
$8.89
12
SCREW,THROTTLE STOP
3130009
$19.99
13
SCREW,AIR
3130011
$19.99
14
SPRING,AIR ADJUST
3130012
$8.89
15
JET,PILOT,#30(10) (#30)
3130065
$8.89
16
SCREW & WASHER(10)
3130025
$3.19
17
CLAMP-HOSE,(10)
7080236
$1.59
18
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
19
PLUG, TRAP Substituted by 5431893
5431001
Unavailable
20
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
21
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
22
O RING
3130239
Unavailable
23
JET,MAIN,HX.HD#200(10) (#200)
3130123
$7.27
24
WASHER (10)
3130014
$1.59
25
CARB. ASM. (Incl. 1-33)
3130410
Unavailable
25
CARB. ASM. (Incl. 1-33)
3130410
Unavailable
26
FLOAT ASM.
3130430
$43.56
27
CAP,(10)
3130237
$4.03
28
PACKING,FLOAT CHAMBER
3130020
$16.17
29
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
30
PACKING(10)
3130017
$4.03
31
ARM,FLOAT
3130018
$24.27
32
PIN, FLOAT Substituted by 3130361
3130235
$8.89
33
CAP
3130386
Unavailable
