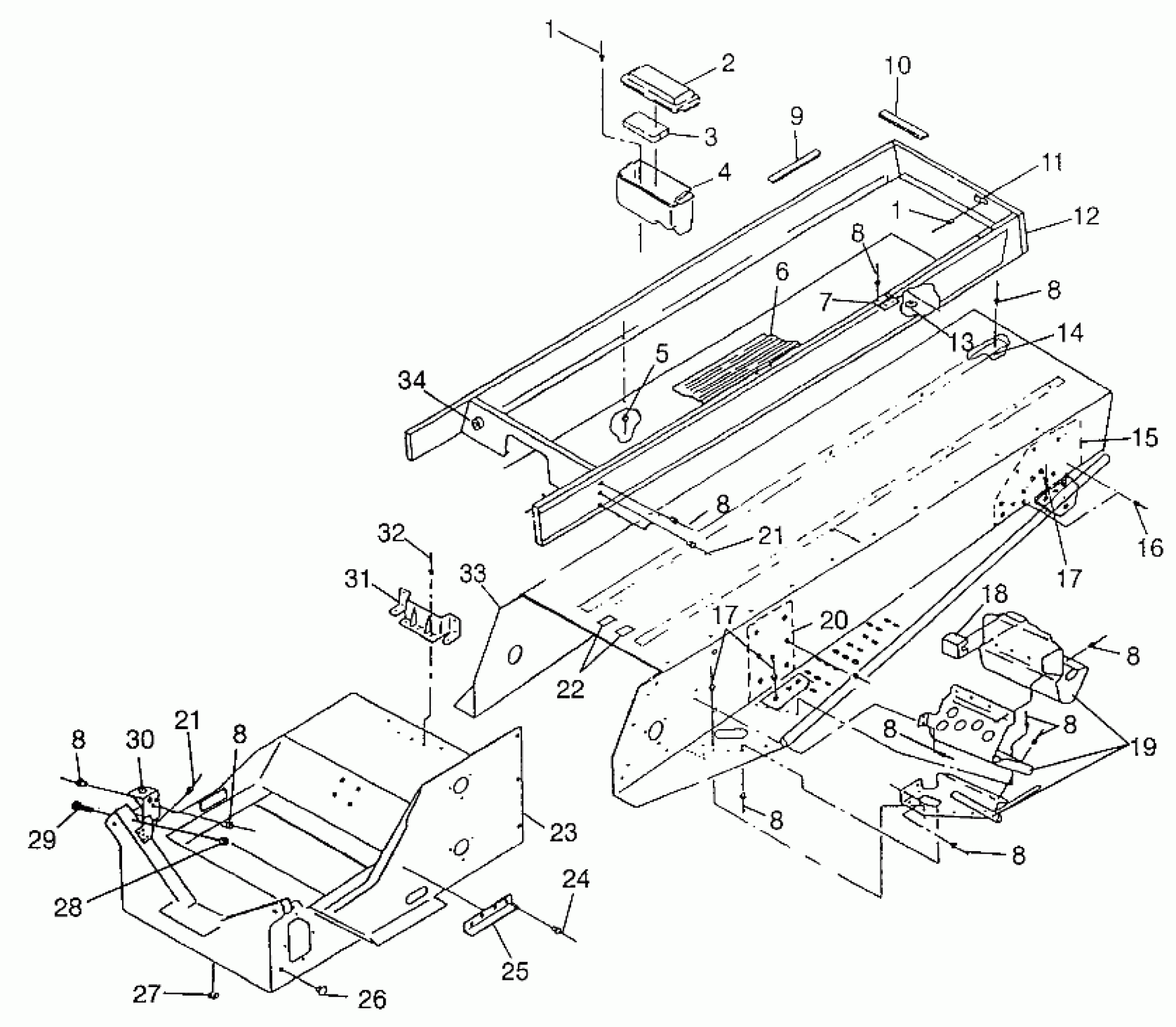

Polaris WIDETRAK GT - 0972061 TUNNEL - 0972061 (4938173817A005) Diagram
#
1
RIVET,3/16X.402(50)
7621432
$1.49
1
RIVET,3/16X.402(50)
7621432
$1.49
2
COVER,TOOL BOX
5430719
$28.32
3
FOAM,TOOLBOX
5811051
Unavailable
4
BOX-TOOL
5430716
$11.99
5
RIVET(50)
7621429
$1.49
6
Protector, Riser
5410561
$89.90
7
HINGE,FLAT(10)
7020023
$4.19
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
9
SEAL,SEAT RISER
5410562
$20.22
10
SEAL,SHORT,SEAT RISER
5410563
$7.73
11
CLIP, HALF(10)
7080393
$3.19
12
SEATRISER ASM,EMERALD Substituted by 1011947-067
1011947-210
$196.83
13
Grommet
5410437
$2.39
14
Strip, Wear
5510233
$23.99
15
PAD,LH,HD.SUSPENSION
1012387-067
$45.59
15
PAD,RH,HD.SUSPENSION
1012388-067
$45.59
16
RIVET ,(50)
7661837
$1.49
17
RIVET,SEMI-TUBE.,(50)
7661844
$1.49
17
RIVET,SEMI-TUBE.,(50)
7661844
$1.49
18
EXTRUSION,CLUTCHGUARD
5521238
$6.46
19
FOOTREST,LH,GT
1012526
Unavailable
19
FOOTREST,RH,GT
1012527
Unavailable
20
BRACKET,LH,SUSP.
5240820-067
Unavailable
20
BRACKET,RH,SUSP.
5240821-067
Unavailable
21
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
21
RIVET,INTERLOCK(50) Substituted by 7661130
7661639
Unavailable
22
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
23
BULKHEAD
1012032-067
Unavailable
24
RIVET-3/16-.090-.290
7661637
$1.49
25
GUARD,ADAPTER GUIDE
5222857
$12.94
26
PLUG, HOLE(10)
7080416
$5.65
27
PLUG-HOLE
7080398
$4.84
28
NUT LOCK(10)
7542321
$1.49
29
SCREW(10)
7512307
$3.99
30
SUPPORT,MUFFLER
1012079-067
$28.32
31
BRACKET, GASTANK
5221932-067
Unavailable
32
RIVET(50)
7621301
$3.99
33
TUNNEL,HD,(GT) (Incl. 15,20)
1012401
$366.65
34
BUSHING,(OPEN/CLOSE)(10)
7080392
$2.07
