STEERING WIDETRAK GT 0972061 and EUROPEAN WIDETRAK GT E972061 (4938173817B004)

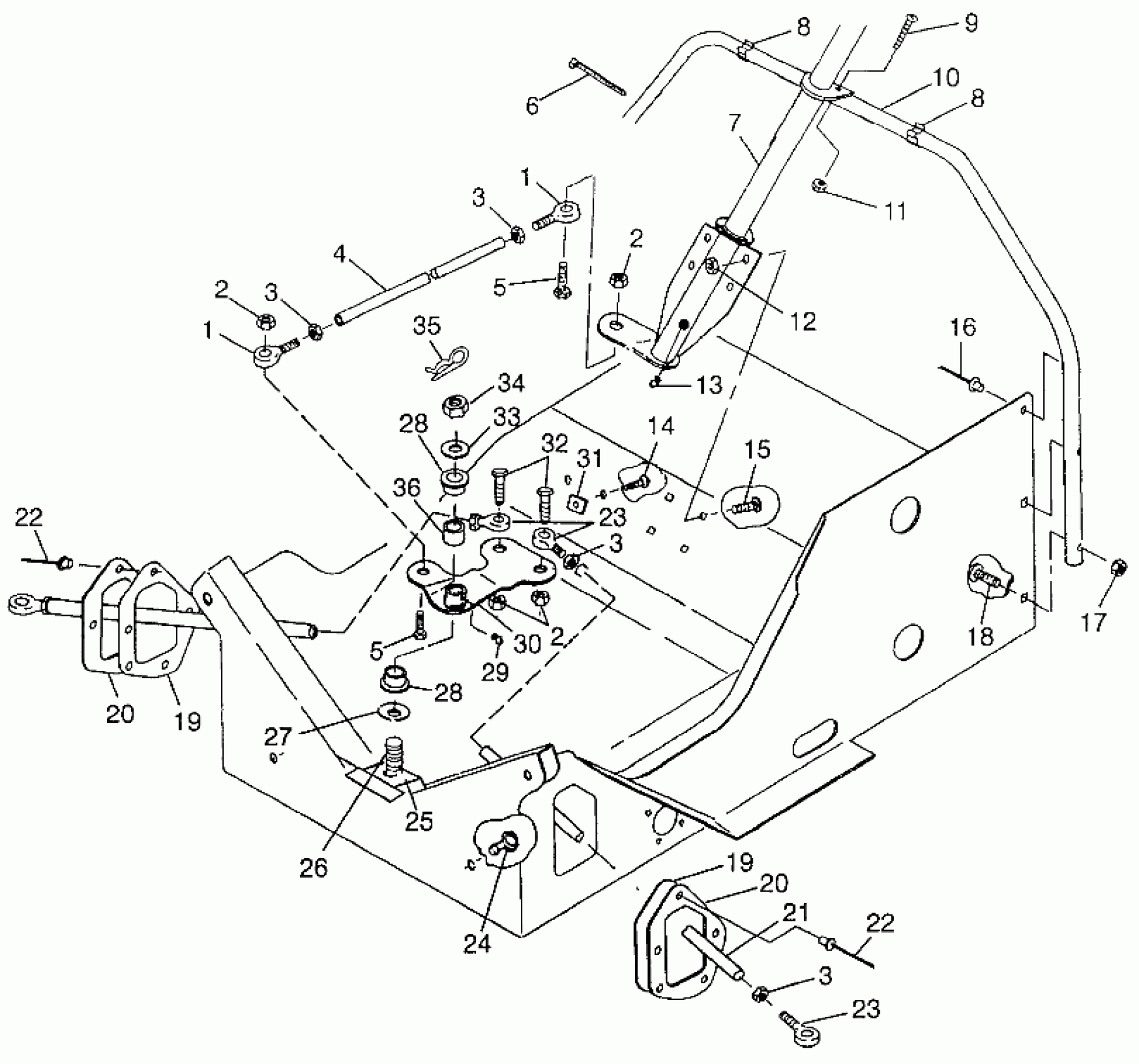

Polaris WIDETRAK GT - 0972061 STEERING WIDETRAK GT 0972061 and EUROPEAN WIDETRAK GT E972061 (4938173817B004) Diagram
#
1
ROD END,LH
7060166
$48.56
1
ROD END,RH
7060167
$48.56
1
ROD END,LH
7060166
$48.56
1
ROD END,RH
7060167
$48.56
2
NUT LOCK(10)
7542403
$3.99
2
NUT LOCK(10)
7542403
$3.99
2
NUT LOCK(10)
7542403
$3.99
3
NUT HEX(10)
7542401
$2.39
3
NUT
7542424
$1.49
3
NUT HEX(10)
7542401
$2.39
3
NUT
7542424
$1.49
3
NUT HEX(10)
7542401
$2.39
3
NUT
7542424
$1.49
3
NUT HEX(10)
7542401
$2.39
3
NUT
7542424
$1.49
4
ROD-DRAG LINK
5332712
Unavailable
5
BOLT(10)
7512404
$3.99
5
BOLT(10)
7512404
$3.99
6
STRAP, BLK
7080272
Unavailable
7
Steering Post (See Pg. A17, Ref. 23)
-------
Unavailable
8
CLIP(10)
7080278
$2.63
8
CLIP(10)
7080278
$2.63
9
Screw (See Pg. A17, Ref. 21)
-------
Unavailable
10
HOOP,STEERING,BLK.
1011819-067
Unavailable
11
Nut, Nylok (See Pg. A17, Ref. 22)
-------
Unavailable
12
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
FITTING,LUB/VEN(10)
7080561
$4.79
14
BOLT-CARRIAGE(10)
7512263
$3.99
15
BOLT(10) Substituted by 7512377
7512394
Unavailable
16
RIVET-3/16-.090-.290
7661637
$1.49
17
NUT-LOCK(10)
7542122
$1.49
18
BOLT-CARRIAGE(10)
7512275
$3.99
19
BOOT,TIEROD
5410761
$12.94
19
BOOT,TIEROD
5410761
$12.94
20
PLATE,BOOTSEAL,BLK.
5222942-067
$9.70
20
PLATE,BOOTSEAL,BLK.
5222942-067
$9.70
21
ROD,TIE,BLK
5020878-067
Unavailable
22
POP RIVET(50)
7621323
$1.49
22
POP RIVET(50)
7621323
$1.49
23
ROD END, LH.
7060164
$48.56
23
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
23
ROD END, LH.
7060164
$48.56
23
ROD-END,RH,3/8,HI-ANGLE
7060174
$48.56
24
CLIP, PLASTIC(10)
4020139
$4.79
25
BLOCK,STRG,(CAST)
5630563
$32.37
26
BOLT(10)
7512682
Unavailable
27
WASHER,WAVE(10)
7555735
$3.99
28
BUSHING
3563907
$3.99
28
BUSHING
3563907
$3.99
29
ZERK,FITTING,THREADED(10)
7080433
$1.49
30
STRG.ASM,CTR. (Incl. 28)
1822217
$56.65
31
SPEED NUT(10)
7670021
$6.99
32
BOLT(10)
7515528
$8.79
33
WASHER(10)
7555721
$1.49
34
NUT FLEX,(10)
7542703
Unavailable
35
PIN COTTER(10)
7661203
$1.49
36
BUSHING
5010322
Unavailable
