Description

Price

1

GASKET, GAS CAP

5810513

$8.89

2

CAP,GAS,W/GAUGE

2511246

$44.51

3

SEAT ASM,WT.2-UP (Incl. Cover & 10)

2681976

Unavailable

3

COVER,SEAT,WT.2-UP

2682102

Unavailable

4

SCREW(10)

7511989

Unavailable

5

WASHER(10)

7558203

$3.19

6

Pull, Seat

5810464

$12.30

7

TEENUT(10)

7541930

$2.06

8

HINGE,FLAT(10)

7020023

$4.19

9

SCREW(10)

7511990

Unavailable

10

PAD,SEAT,BOTTOM

5811339

$35.51

11

SEATBELT ASM,(W'TRAK) (Incl. 13)

2690086

Unavailable

12

RIVET, BLIND(50)

7621467

$1.49

13

Footman Loop (Supplied w/Strap)(See Ref. 11)

-------

Unavailable

14

RIVET,INTERLOCK,B(50)

7661638

$1.49

15

TANK,FUEL(WIDETRAK) Substituted by 2511186

5431143

Unavailable

16

FUELPICKUP,W/STRAINER

7052037

$12.94

17

RING, COMPRESSION(10)

7080402

$1.60

18

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

18

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

19

FITTING - OUTLET(10)

7052023

$24.99

20

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$1.49

21

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

22

FITTING,90 DEG,1/8,(10)

7052095

$4.79

23

SPRING,TANK,(10)

7042020

$13.75

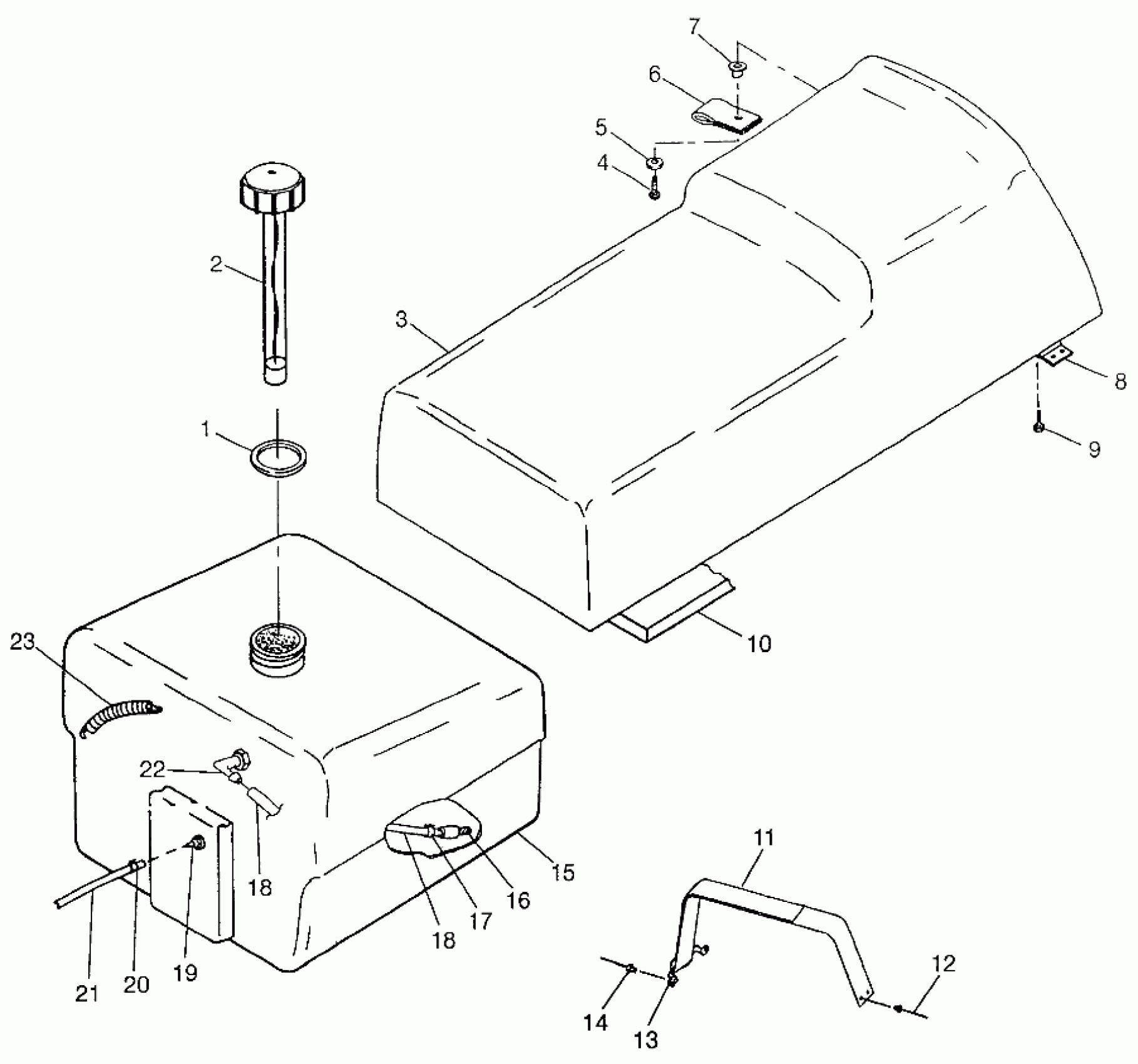

Polaris WIDETRAK GT - 0972061 SEAT and GAS TANK - 0972061 (4938173817A006) Diagram

GASKET, GAS CAP

CAP,GAS,W/GAUGE

SEAT ASM,WT.2-UP (Incl. Cover & 10)

COVER,SEAT,WT.2-UP

SCREW(10)

WASHER(10)

Pull, Seat

TEENUT(10)

HINGE,FLAT(10)

SCREW(10)

PAD,SEAT,BOTTOM

SEATBELT ASM,(W'TRAK) (Incl. 13)

RIVET, BLIND(50)

Footman Loop (Supplied w/Strap)(See Ref. 11)

RIVET,INTERLOCK,B(50)

TANK,FUEL(WIDETRAK) Substituted by 2511186

FUELPICKUP,W/STRAINER

RING, COMPRESSION(10)

FUEL LINE,1/4 ID(1525 CM.)

FUEL LINE,1/4 ID(1525 CM.)

FITTING - OUTLET(10)

CLAMP-HOSE, (LARGE GREEN) (Large Green)

FUEL LINE,1/8 ID,600 CM.

FITTING,90 DEG,1/8,(10)

SPRING,TANK,(10)
