- WIDETRAK GT - 0972061
RACK and TUNNEL EXTENSION - 0972061 (4938173817A013)

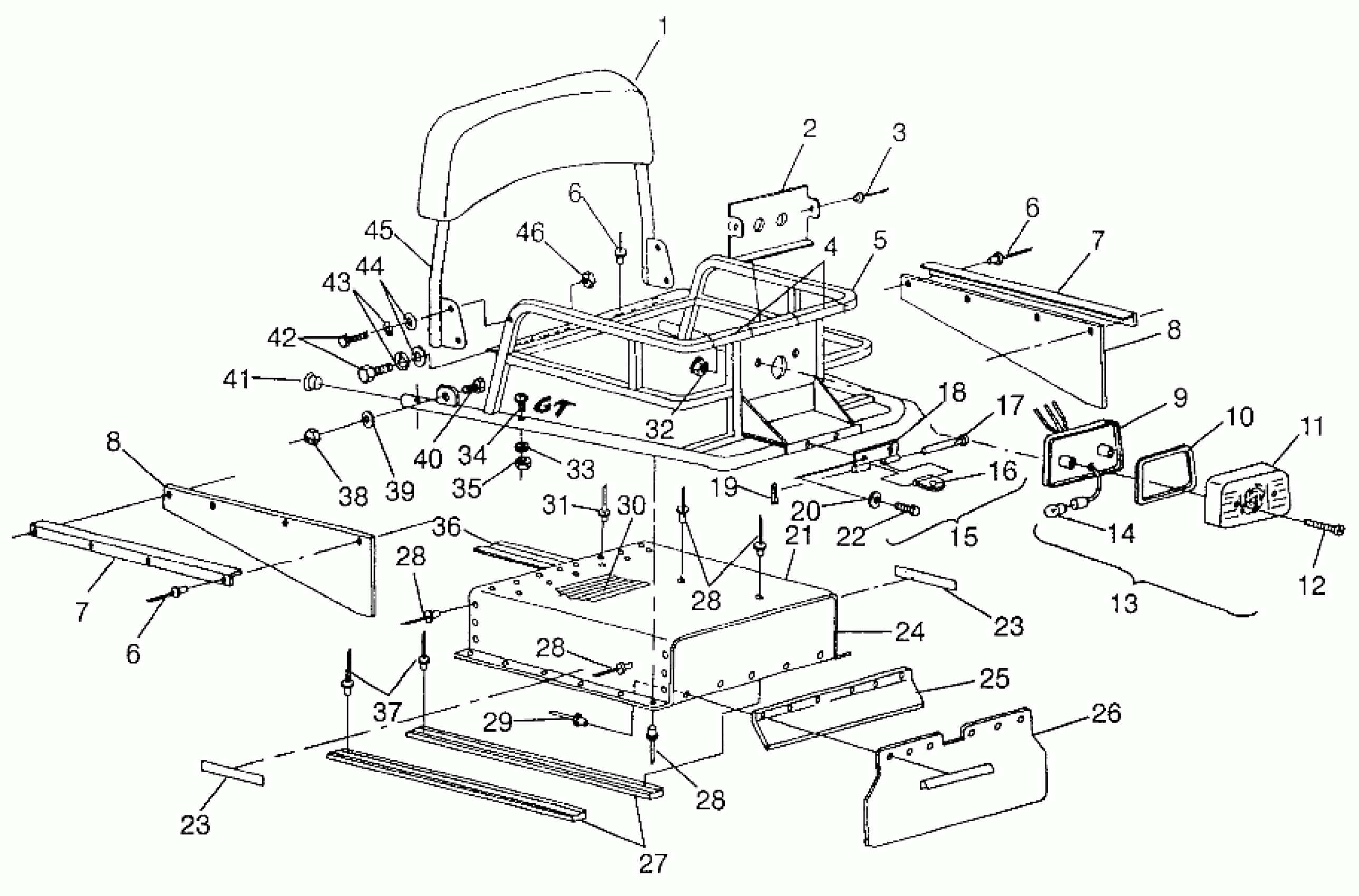

Polaris WIDETRAK GT - 0972061 RACK and TUNNEL EXTENSION - 0972061 (4938173817A013) Diagram
#
1
COVER,BACKREST
2682143
Unavailable
1
BACKREST ASM. (Incl. Cover & 45)
2682144
Unavailable
2
SHIELD, TAILLIGHT
5222960-067
$17.19
3
RIVET,INTERLOCK,B(50)
7661638
$1.49
4
Decal - Track/Seat, LH, English (See Pg. A11, Ref. 1)
-------
Unavailable
4
Decal - Track/Seat, RH, French (See Pg. A11, Ref. 1)
-------
Unavailable
5
RACK,BLK,'GT'
1012075-067
$164.99
6
RIVET(50)
7621462
$1.49
6
RIVET(50)
7621462
$1.49
6
RIVET(50)
7621462
$1.49
7
BRKT,SNOWFLAP,BLK.
5222929-067
Unavailable
7
BRKT,SNOWFLAP,BLK.
5222929-067
Unavailable
8
FLAP,SNOW,SIDE
5810809
Unavailable
8
FLAP,SNOW,SIDE
5810809
Unavailable
9
BASE&SOCKET,T/L
4032047
Unavailable
10
GASKET,TAILLIGHT
4032045
$4.03
11
LENS,TAILLIGHT
4032046
$32.37
12
Screw, Taillight
4032029
$4.79
13
TAILLIGHT ASM. (Incl. 9-14)
2432035
Unavailable
14
BULB,T/L,EXT.DUTY (Opt.)
4030063
$24.99
14
BULB,TAILLIGHT Substituted by 4030063
4030044
Unavailable
15
HITCHKIT,L.T./STARTRAK (Incl. 16-22)
2870708
Unavailable
16
HITCH WELD,BLK.(U.S.) (US Only)
1011518-067
$31.75
17
CLEVIS PIN(10) (US Only)
7662209
$9.59
18
HITCH WELD, BLK. Substituted by 2871178 (US Only)
1011624-067
Unavailable
19
COTTER PIN(10) (US Only)
7661401
$1.49
20
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
21
EXTENSION,R.TUNNEL,GT
5240515
$41.56
22
SCREW(10)
7512490
$3.99
23
REFLECTOR RED
2670070
$9.91
23
REFLECTOR RED
2670070
$9.91
24
PANEL,R.EXT,(GT)
5240535
Unavailable
25
PLATE, ANGLE
5222968
Unavailable
26
FLAP,SNOW,(20'')
5810802
Unavailable
27
EXT., WEAR STRIP
5211365
$12.43
28
RIVET-3/16-.090-.290
7661637
$1.49
28
RIVET-3/16-.090-.290
7661637
$1.49
28
RIVET-3/16-.090-.290
7661637
$1.49
28
RIVET-3/16-.090-.290
7661637
$1.49
29
RIVET(50)
7661641
Unavailable
30
PROTECTOR, BED
5410754
Unavailable
31
RIVET(50)
7621429
$1.49
32
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
33
WASHER(10) Substituted by 7558301
7555776
Unavailable
34
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
35
NUT(10)
7542124
Unavailable
36
BRKT,HARNESS PROTECTOR
5222933
Unavailable
37
RIVET(50)
7621449
$3.19
38
NUT(10)
7542458
$9.59
39
WASHER(10)
7552603
$1.49
40
BOLT(10)
7515522
$3.99
41
PLUG(10)
5430713
Unavailable
42
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
43
WASHER(10)
7552606
$4.79
44
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
45
DESC NOT_AVAILABLE
2681464
Unavailable
46
NUT-5/16-18 NYLOK-Y
7542324
$1.49
