OIL TANK / AIR BOX WIDETRAK GT 0972061 and EUROPEAN WIDETRAK GT E972061 (4938173817C003)

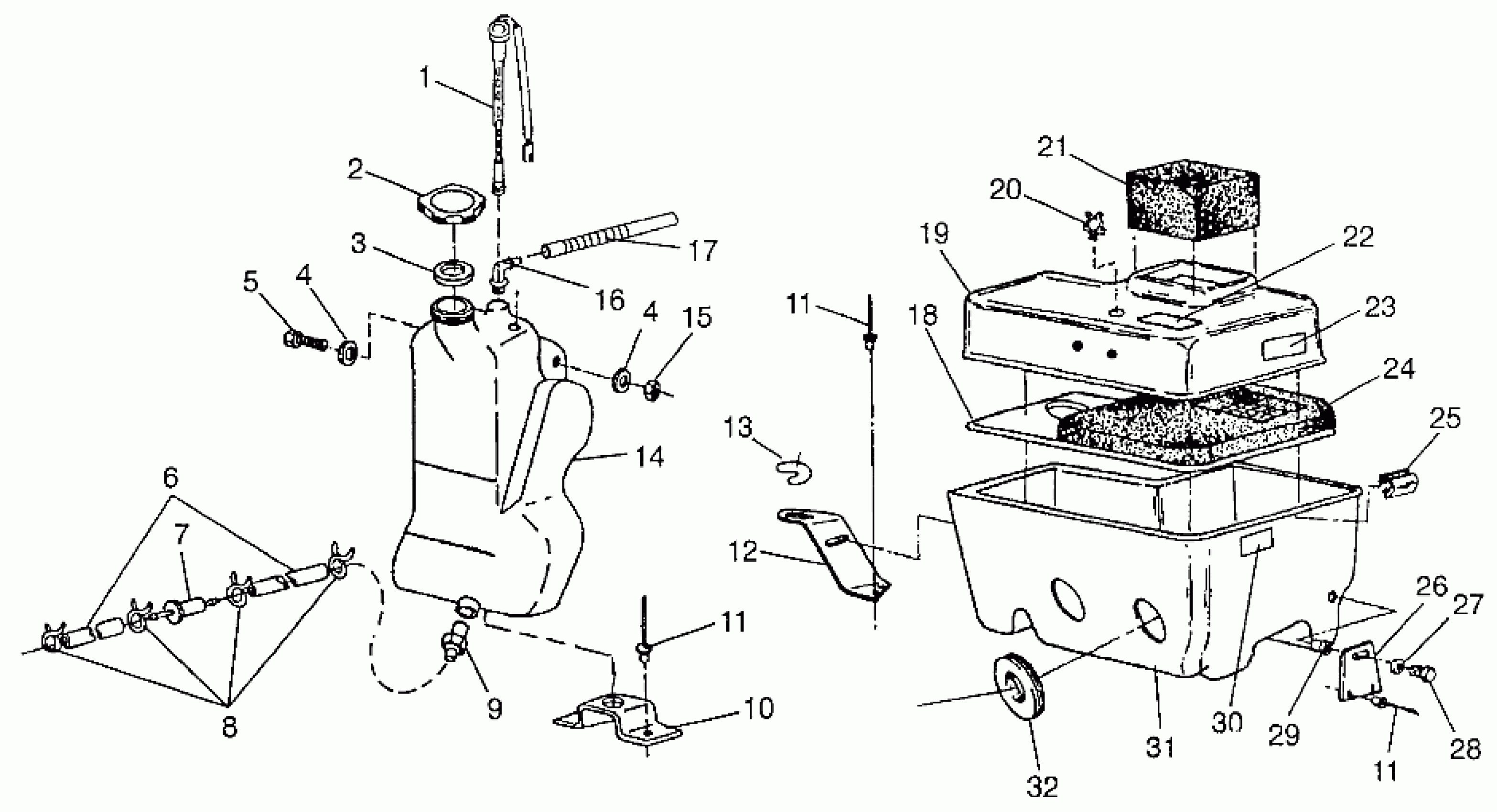

Polaris WIDETRAK GT - 0972061 OIL TANK / AIR BOX WIDETRAK GT 0972061 and EUROPEAN WIDETRAK GT E972061 (4938173817C003) Diagram
#
Description
Price
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
WASHER,WROUGHT(10)
7558302
$1.59
4
WASHER,WROUGHT(10)
7558302
$1.59
5
BOLT(10)
7512103
$3.19
6
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
7
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
8
CLAMP-HOSE, (LARGE GREEN) (Large Green)
7080307
$1.49
9
FITTING, OUTLET
7052042
$8.99
10
BRKT,OILTANK,COINED
5241334
$9.70
11
RIVET-3/16-.090-.290
7661637
$1.49
11
RIVET-3/16-.090-.290
7661637
$1.49
11
RIVET-3/16-.090-.290
7661637
$1.49
12
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
13
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
14
TANK, OIL
5430997
Unavailable
15
NUT-LOCK(10)
7542122
$1.49
16
FITTING,90 DEG,1/8,(10)
7052095
$4.79
17
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
17
SPRING,PROTECT.VENTHOSE
7041605
Unavailable
18
PLATE,AIR SILENCER
5850075
$24.27
19
COVER,SILENCER,DRILLED(ABS)
5432244
Unavailable
20
CLAMP,WIRE ROUTING(10)
7080409
$2.39
21
FOAM, INTAKE
5810470
Unavailable
22
DECAL,CAUTION,AIRBOX
7075351
Unavailable
23
DECAL, GREASING [No Longer Available]
7073426
$7.27
24
BAFFLE ASM. (Incl. 18)
1253102
$64.75
25
CLIP, AIR BOX,(10)
7670055
$7.99
26
BRACKET, SILENCER
5211274
$9.70
27
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
28
SCREW(10)
7512279
$1.49
29
NUT-WELL(10)
7541923
$5.59
30
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
31
SILENCER,INTAKE,MOD.
2620089
Unavailable
32
BOOT
5410403
$12.99
