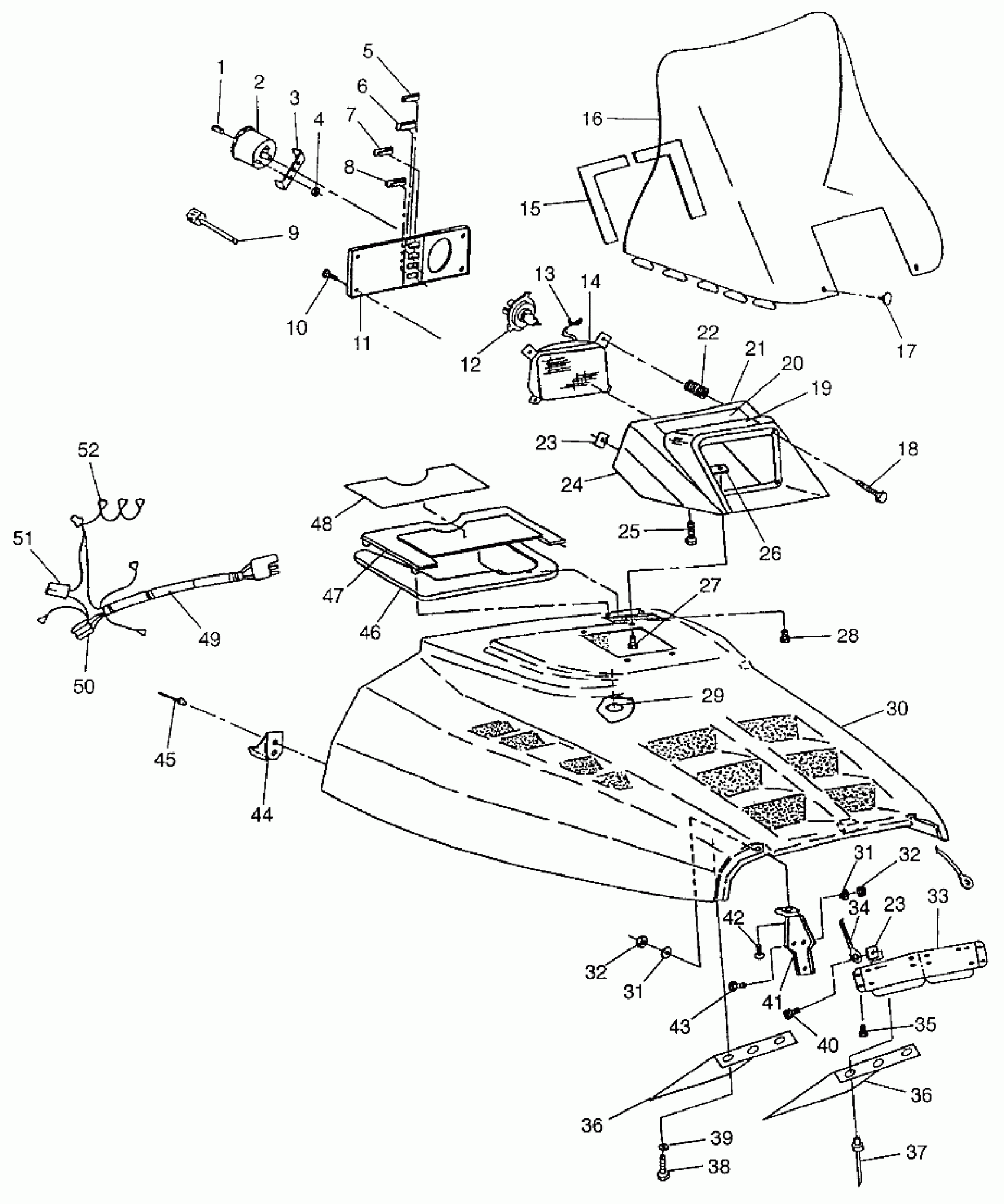

Polaris WIDETRAK GT - 0972061 HOOD - 0972061 (4938173817A009) Diagram
#
1
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
2
BULB TAILLIGHT(10)
4030015
$4.03
2
CUSHION,TACH/SPEEDO,RUBBER
3280151
Unavailable
2
SPEEDOMETER,BACKLIT (Incl. 1,3,4)
3280148
Unavailable
2
SPEEDO,KILOMETER (Incl. 1,3,4) (Euro)
3280159
$113.99
3
BRKT,SPEEDO/TACH
3280153
Unavailable
4
WASHER,FLAT,(10)
3280157
$2.39
4
Nut
3280158
Unavailable
4
WASHER,SPLIT LOCK
3280156
$1.49
5
INDICATOR'REVERSE'WARN.
4040019
$28.32
6
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
7
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
8
INDICATOR,'ACC'WARN.
4040014
Unavailable
9
CABLE,SPEEDO.
3280094
$60.70
10
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
11
BEZEL, INSTRUMENT
5431064
$16.67
12
BULB,QUARTZ.H/L,INDY
2870448
$24.99
13
RETAINER,H/L BULB
4032063
Unavailable
14
HEADLIGHT ASM. (Incl. 12,13)
4032040
Unavailable
15
PAD,W/S,LH,BLACK
5810437
Unavailable
15
PAD,W/S,RH,BLACK
5810438
$1.67
16
WINDSHIELD,CLR,X-HIGH
5431630
Unavailable
17
RIVET,PLASTI-LOC.(50)
7621509
$1.49
18
SCREW, ADJ.(10)
4032003
Unavailable
19
DECAL,POD WARN.TOP [No Longer Available]
7073111
Unavailable
20
DECAL,POD WARN.BOTT. [No Longer Available]
7073112
Unavailable
21
HSG,INST,TOP,BLK
5430923-070
Unavailable
22
SPRING-ADJ
4032002
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
23
NUT, SPEED(10)
7670056
Unavailable
24
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
25
SCREW(10)
7512009
Unavailable
26
NUT, SPEED(10)
7670057
$1.49
27
SCREW, SEMS(10)
7512283
$3.99
28
SCREW(10)
7511840
Unavailable
29
RETAINER,WINDSHIELD,(10)
5410970
$1.49
30
HOOD,EMERALD,W/TRK,F/C (Incl. Foam & Foil)
2631749-210
Unavailable
31
WASHER,WROUGHT(10)
7558302
$1.59
31
WASHER,WROUGHT(10)
7558302
$1.59
32
NUT-LOCK(10)
7542122
$1.49
32
NUT-LOCK(10)
7542122
$1.49
33
PLATE,RE-INF.,(HD.)
5222105
$49.51
34
CABLE,HD.RETAINER
7080360
$24.27
35
SCREW(10)
7511861
Unavailable
36
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
36
DEFLECTOR, AIR Substituted by 5243393
5222691
Unavailable
37
POP RIVET(50)
7621425
$1.49
38
SCREW(10)
7511858
$3.99
39
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
40
SCREW(10)
7511989
Unavailable
41
HINGE ASM,HD,BLK
2635005-067
$16.67
42
BOLT-CARRIAGE(10)
7512263
$3.99
43
BOLT(10)
7512193
$2.39
44
CUP, HOOD LATCH,(10)
5430733
$4.84
45
RIVET(50)
7621334
$1.49
46
SEAL, INTAKE
5810597
Unavailable
47
PANEL ASM,INTAKE,EMERALD (Incl. 48)
2620094-210
Unavailable
48
DECAL,DASH WARN.(PARK BRK) Substituted by 7075457
7075440
Unavailable
49
HARNESS,H/L POD
2460552
$22.06
50
HOUSING
4020052
Unavailable
51
Housing
4020115
$1.59
52
HOUSING
4020114
Unavailable
