GEARCASE WIDETRAK GT 0972061 and EUROPEAN WIDETRAK GT E972061 (4938173817B009)

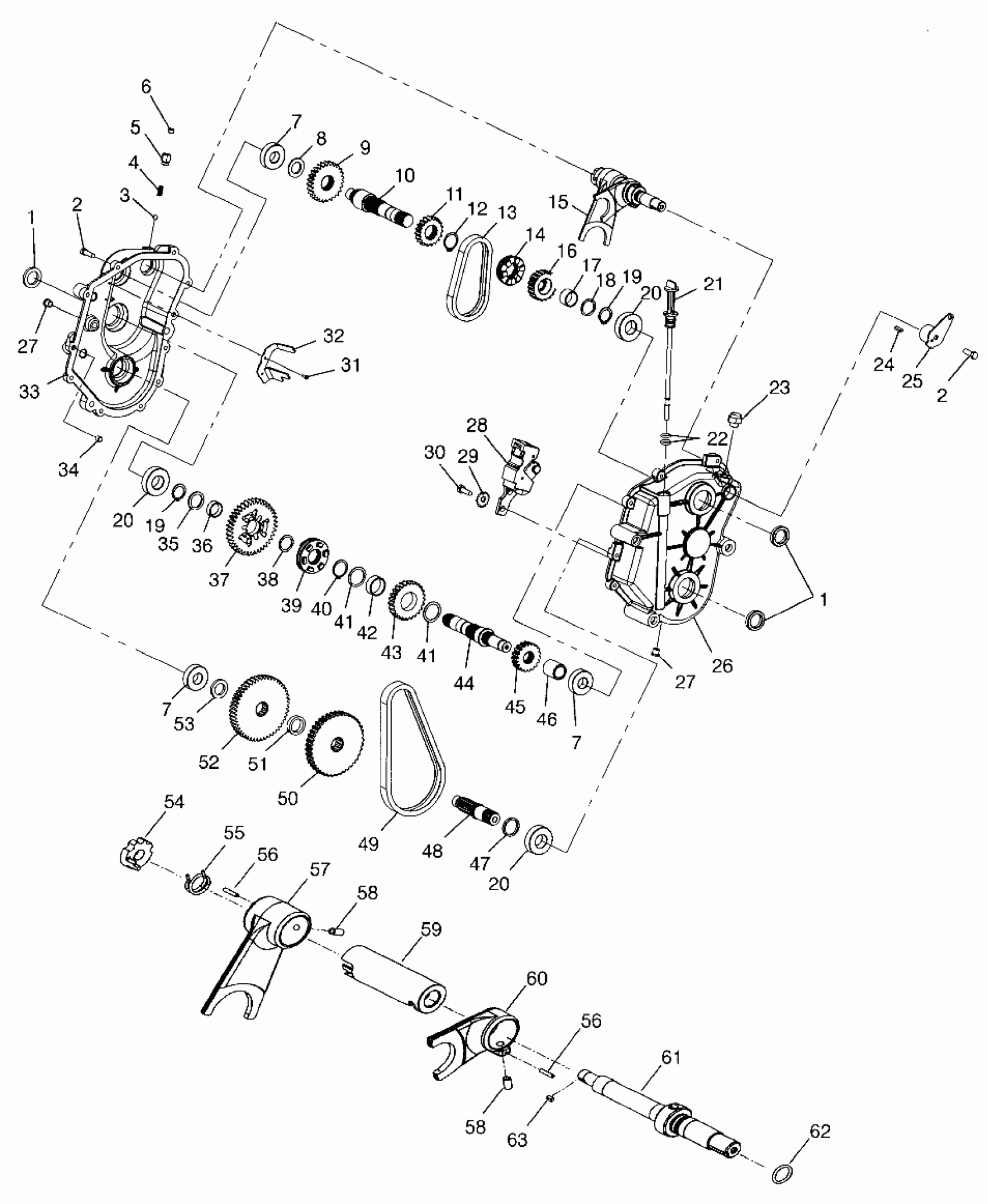

Polaris WIDETRAK GT - 0972061 GEARCASE WIDETRAK GT 0972061 and EUROPEAN WIDETRAK GT E972061 (4938173817B009) Diagram
#
-
GEARCASE ASM,BASIC,W.T. Substituted by 1341233 (Incl. 1-32)
1341190
Unavailable
1
SEAL, DUAL LIP
3610134
$49.99
1
SEAL, DUAL LIP
3610134
$49.99
2
Screw
3233026
$6.46
2
Screw
3233026
$6.46
3
BALL, DETENT
7080310
$5.99
4
SPRING,SHIFTER DETENT
7041483
$40.46
5
DETENT,EXTENSION
3233405
$11.43
6
SCREW,SET
3233374
$1.49
7
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
7
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
7
BEARING-BALL,6307 C3,35X80X21
3233018
$27.99
8
Spacer
3233416
$5.75
9
GEAR,27T
3233419
$119.99
10
SHAFT,INPUT
3233420
Unavailable
11
SPKT,19T,WTD
3233423
Unavailable
12
RING,RETAINING
3233424
Unavailable
13
CHAIN,SILENT,40P,11W (11W)
3233408
$95.99
14
DOG,ENGAGE,HIGH NOTE: Must be ordered with Ref. 16
3233470
$91.99
15
SHAFT DRUM ASM.
3233425
Unavailable
16
SPROCKET,19T NOTE: Must be ordered with Ref. 14
3233471
Unavailable
17
BEARING,NEEDLE
3233383
Unavailable
18
WASHER,THRUST
3233468
$16.79
19
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
$5.59
19
RING,RETAINING BASIC,EXTERNAL 0.984
3233106
$5.59
20
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
20
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
20
BEARING, BALL, 6205 C3 25X52X15
3233019
$31.99
21
DIPSTICK Substituted by 1332143
5431419
Unavailable
22
O-RING
5410675
$1.60
23
Switch
3233410
$27.99
24
KEY, (3/16 X 1/4)
3233414
$1.59
25
BELLCRANK,WTD
3233393
$59.03
26
GEARCASE,LH,MACH
3233388
Unavailable
27
PLUG(10)
7052115
$5.65
27
PLUG(10)
7052115
$5.65
28
SUBASM,CHAIN TENSIONER
3233467
Unavailable
29
WASHER, LOCK
3233272
Unavailable
30
Screw
3233252
$5.27
31
SCREW Substituted by 3233747
3233033
Unavailable
32
DEFLECTOR,OIL
3233406
Unavailable
33
GEARCASE,RH,MACH
3233387
Unavailable
34
PIPE, KNOCK
3233021
Unavailable
35
WASHER
3233099
Unavailable
36
BEARING, NEEDLE
3233103
$31.99
37
GEAR,39T
3233398
Unavailable
38
Washer
3233105
$7.19
39
DOG,ENGAGE,L/R
3233472
$109.99
40
RING,RETAINING
3233377
$3.19
41
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
$9.59
41
WASHER,THRUST,1.187 X 1.500 X .0600
3233378
$9.59
42
BEARING,NEEDLE
3233384
$31.99
43
SPKT,25T
3233400
Unavailable
44
SHAFT,REVERSE
3233421
Unavailable
45
GEAR,19T,WTD
3233422
Unavailable
46
SPACER
3233417
Unavailable
47
Spacer
3233418
Unavailable
48
SHAFT,OUTPUT
3233399
Unavailable
49
CHAIN,66P,(13W),SILENT (13W)
3224051
Unavailable
50
SPKT,41T,13W,15 SPLINE
3222092
$37.66
51
SPACER
3233379
Unavailable
52
GEAR,49T
3233397
Unavailable
53
SPACER
3233380
Unavailable
54
INDEX,SHIFT
3233402
$36.47
55
SPRING,TORSION Substituted by 3233474
3233386
Unavailable
56
PIN,SPRING
3233376
Unavailable
56
PIN,SPRING
3233376
Unavailable
57
SHIFTFORK,L/R,MACH
3233390
Unavailable
58
PIN,DOWELL
3233375
$6.59
58
PIN,DOWELL
3233375
$6.59
59
DRUM,SHIFT
3233404
Unavailable
60
SHIFTFORK,HI,MACH.
3233389
Unavailable
61
SHAFT,SHIFT
3233403
$195.22
62
O RING(10)
5410440
$4.84
63
KEY, (1/8 X 1/4)
3233415
Unavailable
