CARBURETOR WIDETRAK GT 0972061 and EUROPEAN WIDETRAK GT E972061 (4938173817C008)

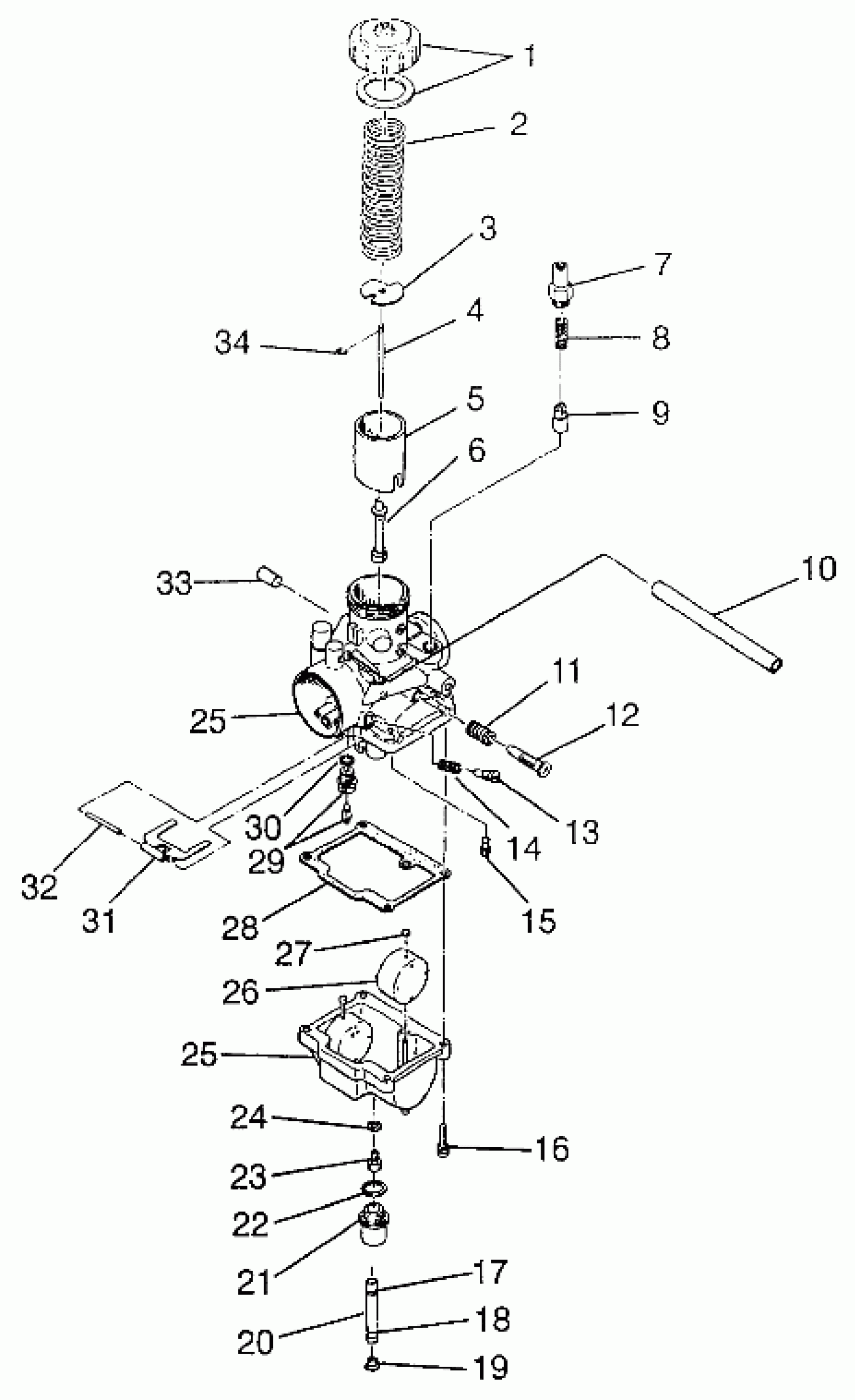

Polaris WIDETRAK GT - 0972061 CARBURETOR WIDETRAK GT 0972061 and EUROPEAN WIDETRAK GT E972061 (4938173817C008) Diagram
#
Description
Price
1
TOP ASM (Incl. Gasket)
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
JET NEEDLE (6DH7-3)
3130329
Unavailable
5
VALVE,THROTTLE,(3.0) (3.0)
3130372
$52.60
6
JET NEEDLE (166)
3130160
$36.41
7
HOLDER,GUIDE
3130199
$28.32
8
SPRING,PLUNGER
3130006
$8.89
9
PLUNGER ASM, STARTER
3130328
$32.37
10
FUEL LINE,1/8 ID,600 CM.
8360009-600
$40.46
11
SPRING,THROTTLE ADJ.
3130010
$8.89
12
SCREW,THROTTLE STOP
3130009
$19.99
13
SCREW,AIR
3130011
$19.99
14
SPRING,AIR ADJUST
3130012
$8.89
15
JET,PILOT,#30(10) (#30)
3130065
$8.89
16
SCREW & WASHER(10)
3130025
$3.19
17
CLAMP,SPRING,(10)
7080534
$1.59
18
CLAMP,HOSE(10)
7080544
Unavailable
19
NIPPLE
3130573
$32.37
20
FUEL LINE, 5 FT.
8450045-153
$99.99
21
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
22
O RING
3130239
Unavailable
23
JET,MAIN,HX.HD#210(10) (#210)
3130124
$7.27
24
WASHER (10)
3130014
$1.59
25
CARBURETOR (Incl. 1-16, 21-34)
3130722
Unavailable
25
CARBURETOR (Incl. 1-16, 21-34)
3130722
Unavailable
26
FLOAT ASM.
3130430
$43.56
27
CAP,(10)
3130237
$4.03
28
PACKING,FLOAT CHAMBER
3130020
$16.17
29
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
30
PACKING(10)
3130017
$4.03
31
ARM,FLOAT
3130018
$24.27
32
PIN, FLOAT
3130361
$8.89
33
CAP
3130479
$14.56
34
E RING(10) Substituted by 3130508
3130003
Unavailable
