STEERING ASSEMBLY WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E952064 (4928942894B005)

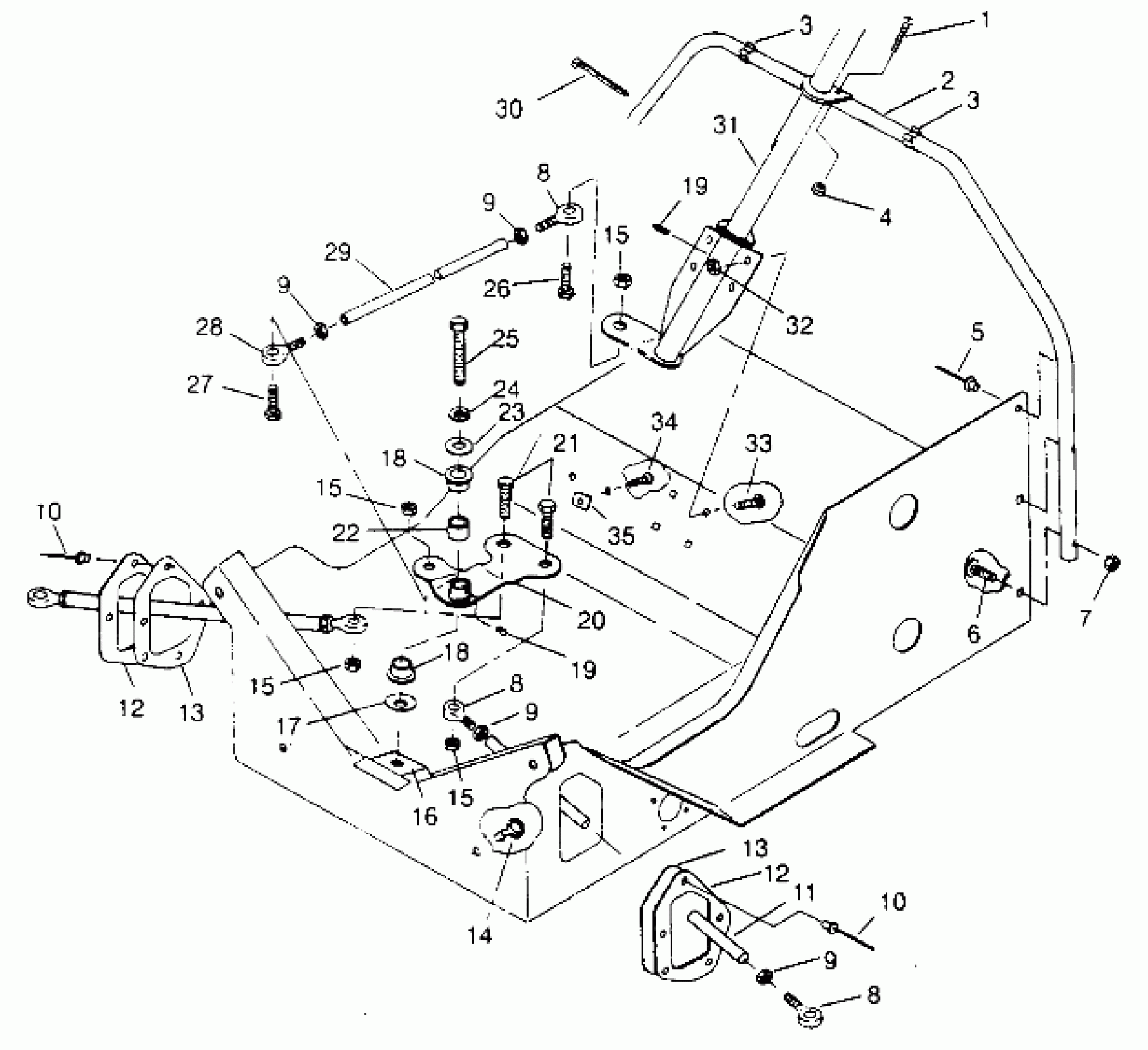

Polaris WIDE TRAK LX - 0952064 STEERING ASSEMBLY WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E952064 (4928942894B005) Diagram
#
1
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
2
HOOP,STEERING,BLK.
1011819-067
Unavailable
3
CLIP(10)
7080278
$2.63
3
CLIP(10)
7080278
$2.63
4
NUT(10)
7542124
Unavailable
5
RIVET-3/16-.090-.290
7661637
$1.49
6
BOLT-CARRIAGE(10)
7512275
$3.99
7
NUT, LOCK(10)
7542103
$5.59
8
ROD END,LH Substituted by 7060164
7060124
$48.56
8
ROD END RH Substituted by 7060165
7060125
$48.56
8
ROD END,LH Substituted by 7060164
7060124
$48.56
8
ROD END RH Substituted by 7060165
7060125
$48.56
8
ROD END,LH Substituted by 7060164
7060124
$48.56
8
ROD END RH Substituted by 7060165
7060125
$48.56
9
NUT HEX(10)
7542401
$2.39
9
NUT
7542424
$1.49
9
NUT HEX(10)
7542401
$2.39
9
NUT
7542424
$1.49
9
NUT HEX(10)
7542401
$2.39
9
NUT
7542424
$1.49
9
NUT HEX(10)
7542401
$2.39
9
NUT
7542424
$1.49
10
POP RIVET(50)
7621323
$1.49
10
POP RIVET(50)
7621323
$1.49
11
TIEROD
5020636-067
Unavailable
12
PLATE,BOOTSEAL,BLK.
5222942-067
$9.70
12
PLATE,BOOTSEAL,BLK.
5222942-067
$9.70
13
BOOT,TIEROD
5410761
$12.94
13
BOOT,TIEROD
5410761
$12.94
14
CLIP, PLASTIC(10)
4020139
$4.79
15
NUT LOCK(10)
7542403
$3.99
15
NUT LOCK(10)
7542403
$3.99
15
NUT LOCK(10)
7542403
$3.99
15
NUT LOCK(10)
7542403
$3.99
16
BLOCK, CTR.STRG.
5130889
$139.68
17
WASHER,WAVE(10)
7555735
$3.99
18
BUSHING
3563907
$3.99
18
BUSHING
3563907
$3.99
19
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
19
FITTING-LUBE.(10) Substituted by 7080561
7080220
$4.76
20
STRG.ASM,CTR.
1822217
$56.65
21
BOLT(10)
7515528
$8.79
22
BUSHING
5010322
Unavailable
23
WASHER(10)
7555721
$1.49
24
LOCK WASHER(10)
7553201
$3.99
25
BOLT(10)
7512681
Unavailable
26
BOLT(10) Substituted by 7515492
7512410
Unavailable
27
BOLT(10)
7512404
$3.99
29
ROD,DRAG LINK
5333372
Unavailable
30
STRAP, BLK
7080272
Unavailable
31
Weld., Steering Post (See Pg., Ref.)
-------
Unavailable
32
NUT-5/16-18 NYLOK-Y
7542324
$1.49
33
BOLT(10) Substituted by 7512377
7512394
Unavailable
34
BOLT-CARRIAGE(10)
7512263
$3.99
35
SPEED NUT(10)
7670021
$6.99
