RACK and TUNNEL EXTENSION ASSEMBLY WIDETRAK LX 0952064 and EUROPEAN WIDETR (4928942894B001)

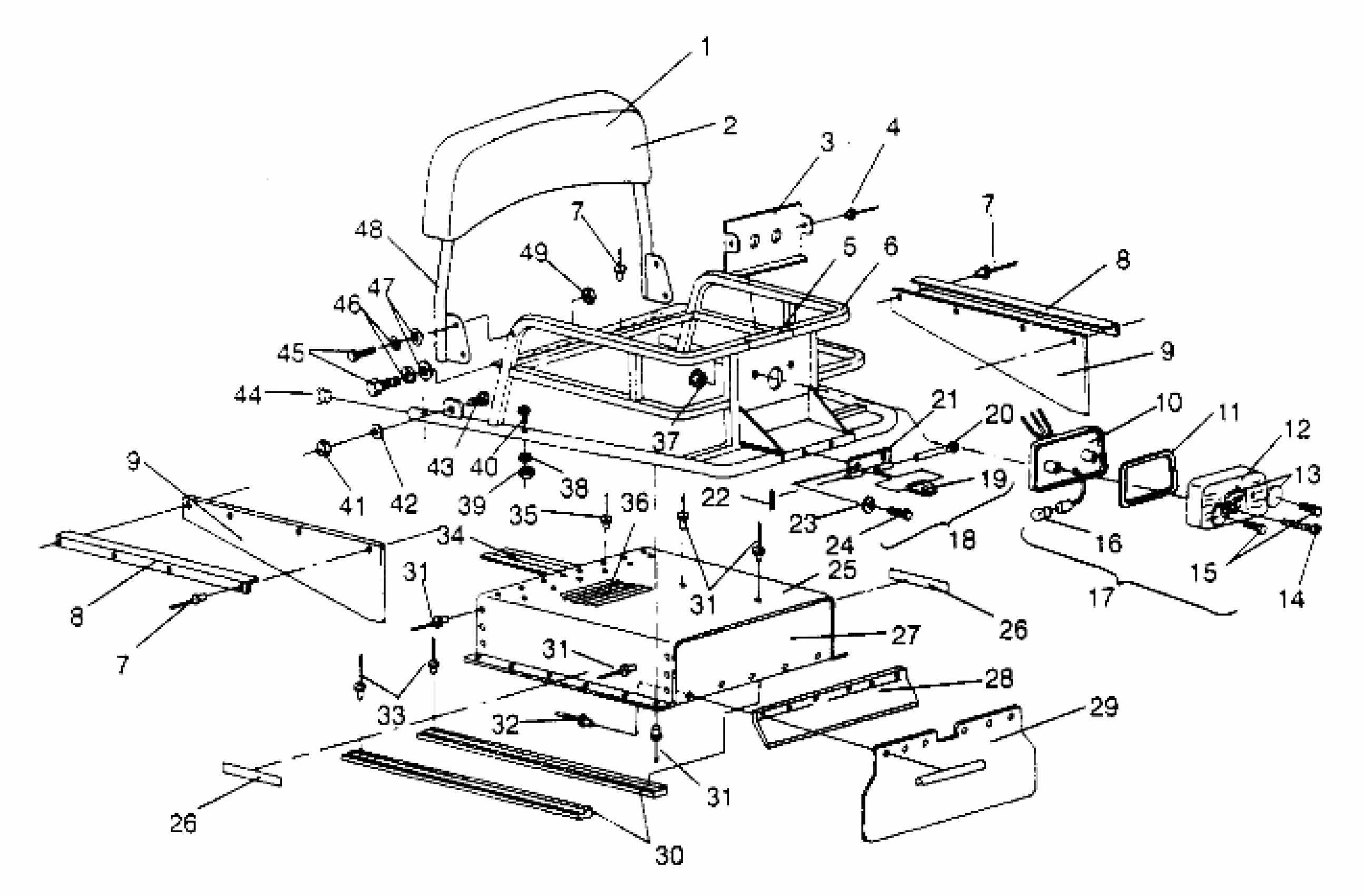

Polaris WIDE TRAK LX - 0952064 RACK and TUNNEL EXTENSION ASSEMBLY WIDETRAK LX 0952064 and EUROPEAN WIDETR (4928942894B001) Diagram
#
1
BACKREST ASM. (Incl. 2, 48)
2681465
Unavailable
2
COVER, BACKREST
2681265
$257.13
3
SHIELD,TAILLIGHT
5222868-067
$20.63
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
DECAL,TRACK/SEAT(CPSC)
7074255
Unavailable
6
RACK,BLK,'LX'
1012076-067
$258.99
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
8
BRKT,SNOW-FLAP
5220497-067
$12.39
8
BRKT,SNOW-FLAP
5220497-067
$12.39
9
SNOW FLAP-SIDE
5810222
Unavailable
9
SNOW FLAP-SIDE
5810222
Unavailable
10
BASE&SOCKET,T/L
4032047
Unavailable
11
GASKET,TAILLIGHT
4032045
$4.03
12
LENS,TAILLIGHT
4032046
$32.37
13
REFLECTOR (Euro)
5430781
Unavailable
14
Screw, Taillight
4032029
$4.79
15
SCREW(10) (Euro)
7511856
Unavailable
16
BULB,TAILLIGHT Substituted by 4030063
4030044
Unavailable
17
TAILLIGHT ASM. (Incl. 10-16)
2432035
Unavailable
18
HITCHKIT,L.T./STARTRAK (Incl. 19-24)
2870708
Unavailable
19
HITCH WELD, BLK. Substituted by 2871178 (US Only)
1011624-067
Unavailable
20
CLEVIS PIN(10) (US Only)
7662209
$9.59
21
HITCH WELD,BLK.(U.S.) (US Only)
1011518-067
$31.75
22
COTTER PIN(10) (US Only)
7661401
$1.49
23
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
24
SCREW(10) Substituted by 7512490
7512402
Unavailable
25
EXTENSION,TUNNEL,REAR,LX
5240516
$68.08
26
REFLECTOR RED
2670070
$9.91
26
REFLECTOR RED
2670070
$9.91
27
PANEL,R.EXTENSION
5240530
$34.08
28
PLATE, ANGLE
5222968
Unavailable
29
FLAP, SNOW
5410553
Unavailable
30
STRIP, WEAR, EXT.
5222448
$17.46
31
RIVET-3/16-.090-.290
7661637
$1.49
31
RIVET-3/16-.090-.290
7661637
$1.49
31
RIVET-3/16-.090-.290
7661637
$1.49
31
RIVET-3/16-.090-.290
7661637
$1.49
32
POP RIVET(50)
7621418
$1.49
33
RIVET(50)
7621449
$3.19
34
BRKT,HARNESS PROTECTOR
5222323
$24.27
35
RIVET(50)
7621429
$1.49
36
PROTECTOR, BED
5410560
$51.99
37
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
38
WASHER(10) Substituted by 7558301
7555776
Unavailable
39
NUT(10)
7542124
Unavailable
40
BOLT(10)
7512281
$3.99
41
NUT(10)
7542458
$9.59
42
WASHER(10)
7552603
$1.49
43
BOLT(10)
7515522
$3.99
44
PLUG(10)
5430713
Unavailable
45
SCREW(10)
7515355
Unavailable
46
WASHER(10)
7552606
$4.79
47
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
48
BACKREST, BLK. Substituted by 2681465
1011781-067
$27.92
49
NUT-5/16-18 NYLOK-Y
7542324
$1.49
