OIL TANK / AIR BOX ASSEMBLY WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E (4928942894C005)

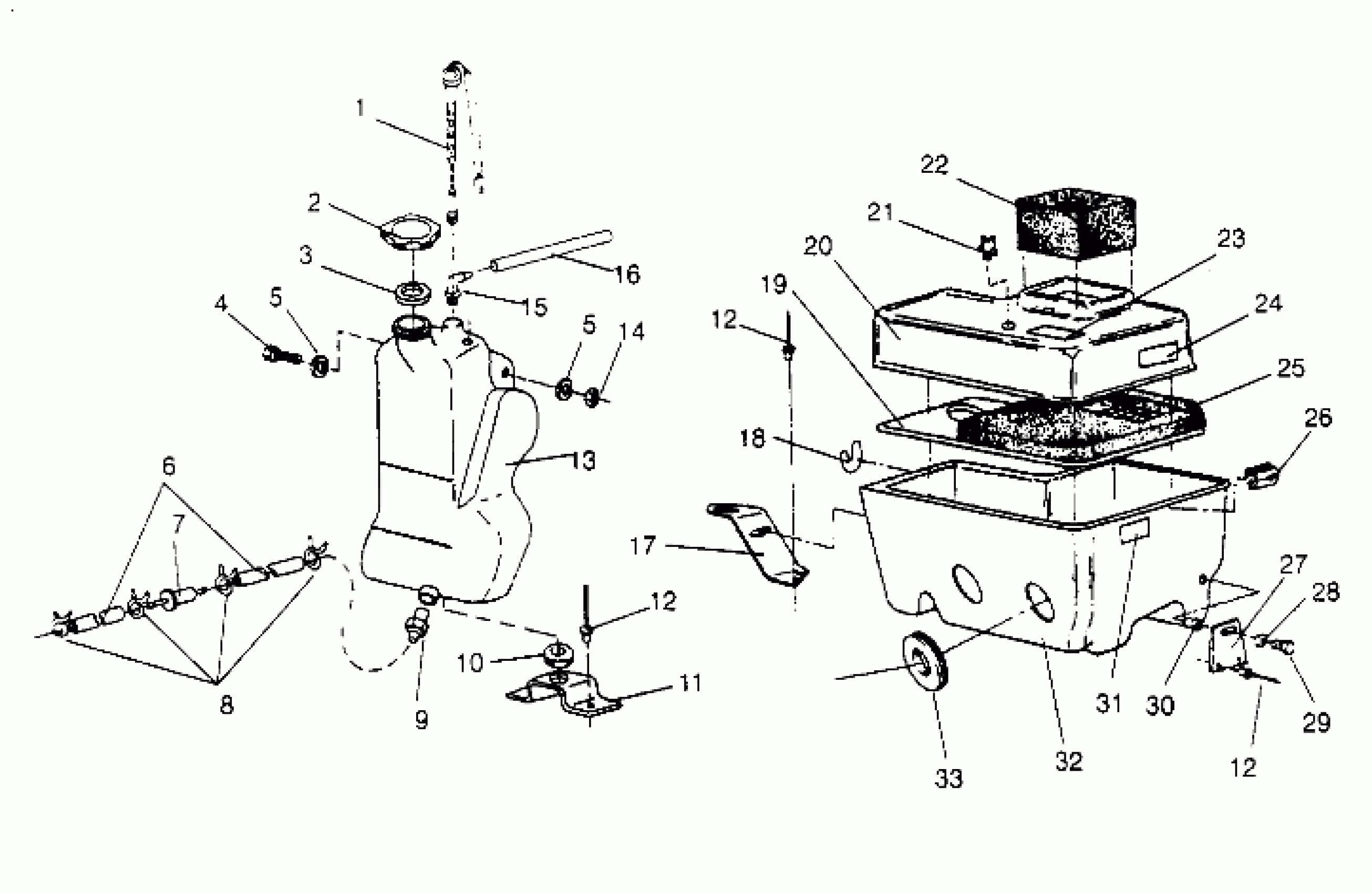

Polaris WIDE TRAK LX - 0952064 OIL TANK / AIR BOX ASSEMBLY WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E (4928942894C005) Diagram
#
Description
Price
1
SENSOR,OIL LEVEL,W/CONN.
4040040
$72.84
2
CAP,OIL TANK
5430779
$14.56
3
GASKET-OIL CAP
5810141
$2.39
4
BOLT(10)
7512103
$3.19
5
WASHER,WROUGHT(10)
7558302
$1.59
5
WASHER,WROUGHT(10)
7558302
$1.59
6
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
7
FILTER,SMALL,IN-LINE,(10)
2530009
$5.65
8
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
9
FITTING, OUTLET
7052042
$8.99
10
GROMMET RUBBER
5410021
Unavailable
11
BRACKET
5223985
Unavailable
12
RIVET-3/16-.090-.290
7661637
$1.49
12
RIVET-3/16-.090-.290
7661637
$1.49
12
RIVET-3/16-.090-.290
7661637
$1.49
13
PANEL, IGNITION
5430995
Unavailable
14
NUT-LOCK(10)
7542122
$1.49
15
FITTING,90 DEG,1/8,(10)
7052095
$4.79
16
KIT-TANK VENT
2200190
Unavailable
17
BRKT,AIR SILENCER,BLK.
5223973-067
Unavailable
18
DECAL,SHUT-OFF VALVE [No Longer Available]
7072151
Unavailable
19
PLATE,AIR SILENCER
5850075
$24.27
20
COVER, SILENCER
5431169
Unavailable
21
CLAMP,WIRE ROUTING(10)
7080409
$2.39
22
FOAM, INTAKE
5810470
Unavailable
23
DECAL,CAUTION(AIR BOX) [No Longer Available]
7072891
Unavailable
24
DECAL, GREASING [No Longer Available]
7073426
$7.27
25
BAFFLE ASM.
1253102
$64.75
26
CLIP, AIR BOX,(10)
7670055
$7.99
27
BRACKET, SILENCER
5211274
$9.70
28
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
29
SCREW(10)
7512279
$1.49
30
NUT-WELL(10)
7541923
$5.59
31
DECAL,ADJ.DRIVEN CLUTCH
7073820
Unavailable
32
SILENCER ASM,INTAKE,DRILL
2620090
Unavailable
33
BOOT
5410403
$12.99
