- WIDE TRAK LX - 0952064

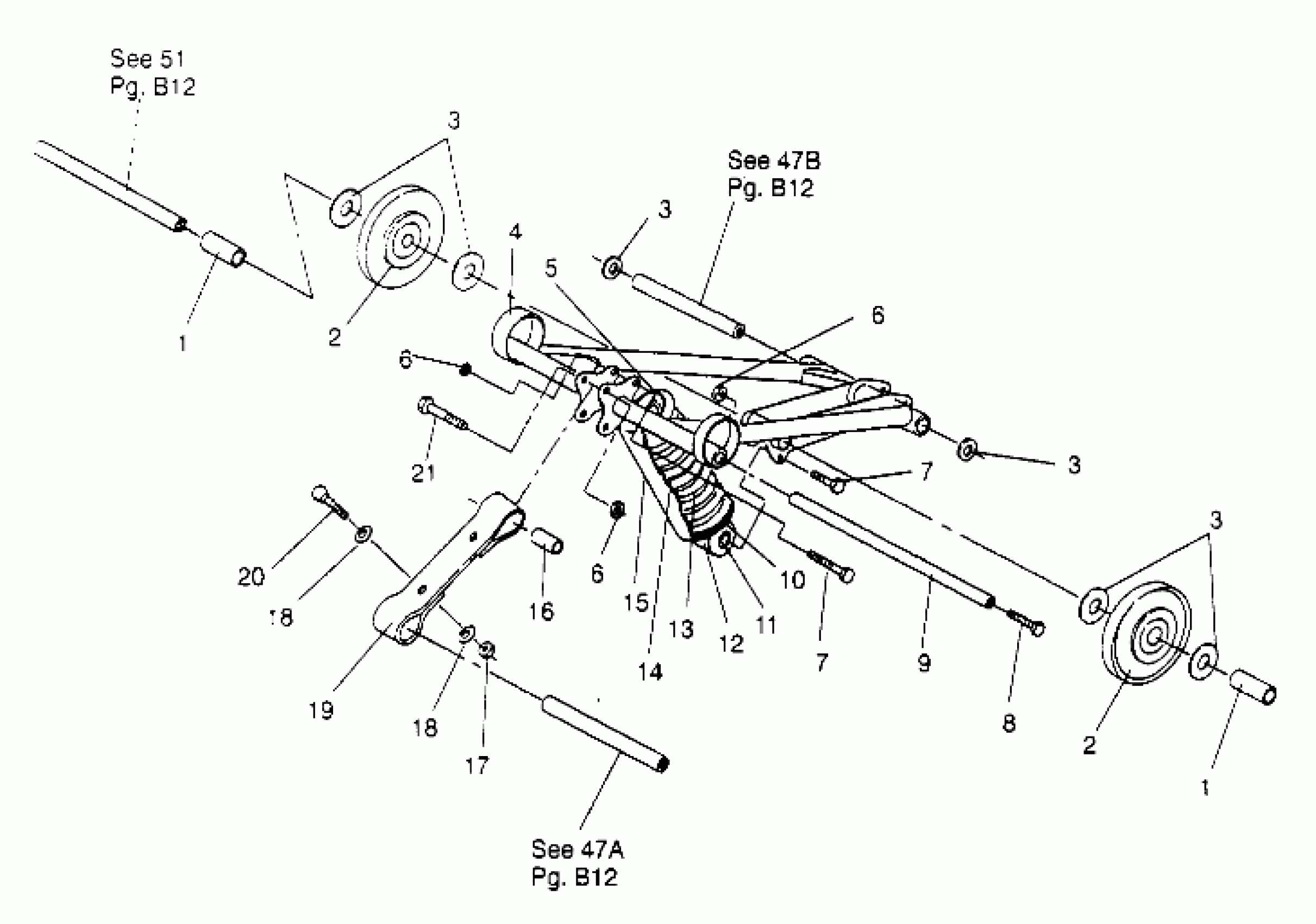

FRONT TORQUE ARM ASSEMBLY WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E95 (4928942894B013)
Polaris WIDE TRAK LX - 0952064 FRONT TORQUE ARM ASSEMBLY WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E95 (4928942894B013) Diagram
#
Description
Price
1
TUBE,OUTER SPACER
5333012
$12.99
1
TUBE,OUTER SPACER
5333012
$12.99
2
Asm., Bogie Wheel (See Pg. A22, Ref. 32)
-------
Unavailable
2
Asm., Bogie Wheel (See Pg. A22, Ref. 32)
-------
Unavailable
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
3
MACHINERY BUSHING(10)
7556301
$3.19
4
ARM,FR.TORQUE,BLK. Substituted by 1541044-067
1540649-067
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
NUT-LOCK(10)
7542439
$1.49
6
NUT-LOCK(10)
7542439
$1.49
6
NUT-LOCK(10)
7542439
$1.49
7
BOLT(10)
7515415
$1.49
7
BOLT(10)
7515415
$1.49
8
BOLT(10)
7515432
Unavailable
9
SHAFT, MOUNTING
5020554
Unavailable
10
CAM,ADJUSTING SPRING
5630334
$32.37
11
SHOCK,CTR.SUSP.
7041281
Unavailable
12
SPACER,SHOCK RETAINER(10)
5210953
$6.39
13
SPRING-SHOCK SUSP
7041140
Unavailable
14
SLEEVE,SPRING PROTECTOR
5431032
$31.99
15
SHIELD-SPRING
5430671
$24.27
16
BUSHING,SUSPENSION
5010212
Unavailable
17
NUT-5/16-18 NYLOK-Y
7542324
$1.49
18
WASHER(10)
7555716
$1.59
18
WASHER(10)
7555716
$1.59
19
STRAP, LIMITER
5410397
Unavailable
20
BOLT(10)
7515307
$3.99
21
BOLT(10)
7515438
$4.79
