FRONT SUSPENSION and SKI WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E952 (4928942894B002)

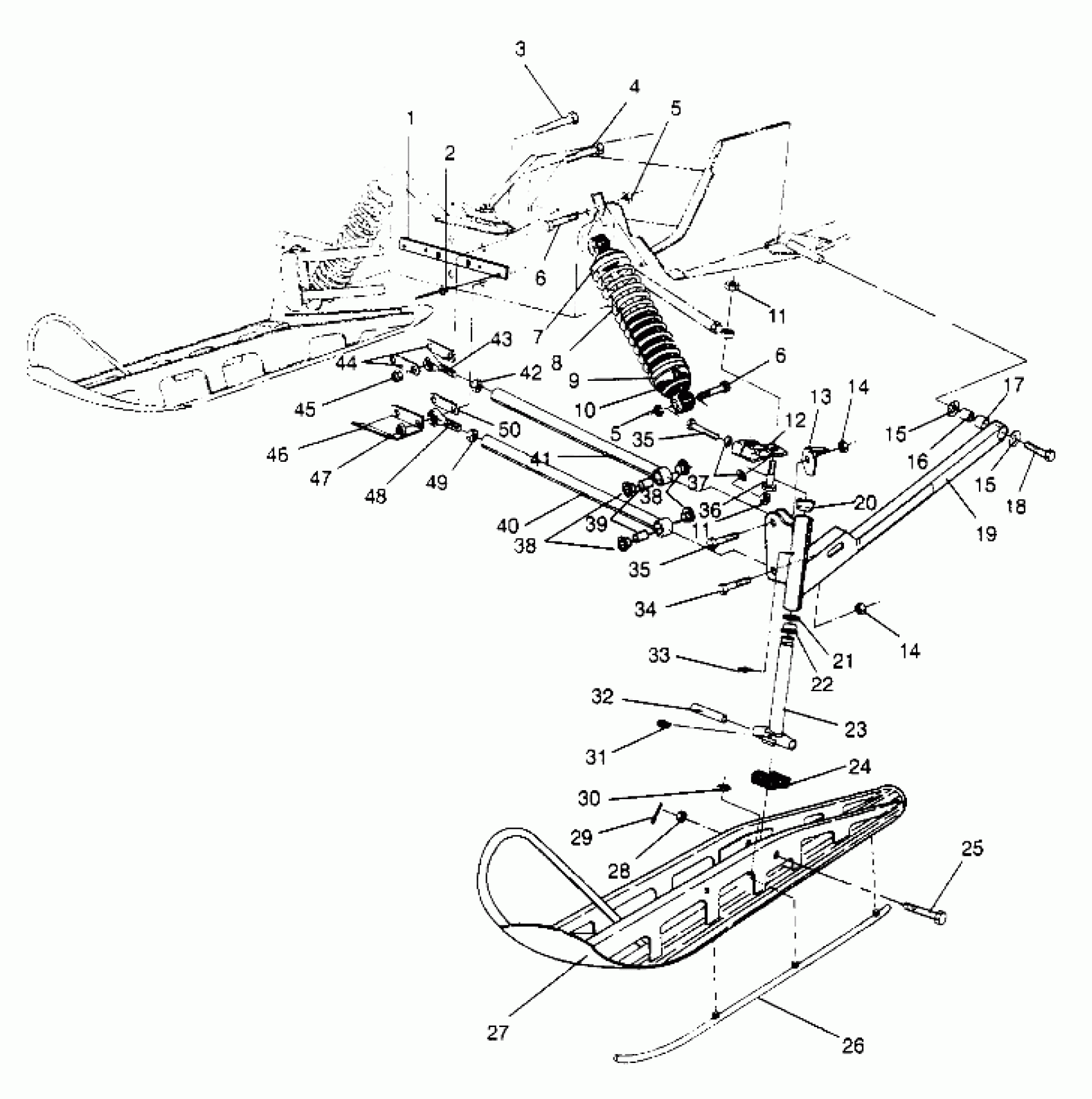

Polaris WIDE TRAK LX - 0952064 FRONT SUSPENSION and SKI WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E952 (4928942894B002) Diagram
#
1
BRACE,BULKHEAD
5240349-067
$6.63
2
RIVET-3/16-.090-.290
7661637
$1.49
3
BOLT(10)
7512551
Unavailable
4
BOLT(10)
7512656
$6.23
5
NUT, NYLOC(10)
7542453
Unavailable
5
NUT, NYLOC(10)
7542453
Unavailable
6
BOLT(10) Substituted by 7515415
7515515
Unavailable
6
BOLT(10) Substituted by 7515415
7515515
Unavailable
7
RETAINER-TOP
5220225
$10.39
8
SPRING,COMP.,BLK.
7041261-067
$164.99
9
SPACER,SHOCK RETAINER(10)
5210953
$6.39
10
SHOCK,FR.SUSP.
7041284
Unavailable
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
11
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
12
ARM,STEERING,BLK. Substituted by 1012423-067
5222873-067
Unavailable
13
STOP,STRG,RH,BLK.
5222875-067
Unavailable
13
STOP,STRG,LH,BLK.
5222874-067
Unavailable
14
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
14
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
15
WASHER(10)
7555721
$1.49
15
WASHER(10)
7555721
$1.49
16
TUBE,TRAILING ARM
5010187
Unavailable
17
PIVOT-TRAILING ARM
5410382
Unavailable
18
BOLT(10)
7512557
$7.60
19
ARM,TRAIL,LH.
1822187
Unavailable
19
ARM,TRAIL,RH.
1822188
Unavailable
20
BUSHING-FLANGE
3573909
$2.39
21
WASHER SPECIAL(10)
7556509
$1.59
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
SPINDLE, BLK.
6230073-067
Unavailable
24
STOP, RUBBER
5521276
Unavailable
25
BOLT(10)
7515462
$8.79
26
SKAG,PR.,CARBIDE (Pair)
2870693
$69.99
27
SKI WELD, BLK
1820332-067
Unavailable
28
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
29
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
30
NUT-5/16-18 NYLOK-Y
7542324
$1.49
31
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
32
BUSHING,PIVOT,(10)
5010158
$19.99
33
ZERK,FITTING,THREADED(10)
7080433
$1.49
34
BOLT(10) Substituted by 7515540
7515492
$4.62
35
BOLT(10) Substituted by 7517583
7515491
Unavailable
35
BOLT(10) Substituted by 7517583
7515491
Unavailable
36
BOLT(10)
7512404
$3.99
37
WASHER(10) Substituted by 7555832
7555851
Unavailable
38
BUSHING-RADIUS ROD,(10)
5010127
$7.99
38
BUSHING-RADIUS ROD,(10)
5010127
$7.99
39
BUSH,RAD.ROD PIVOT,OUT.
5431486
$3.19
40
ROD,RAD.LOW.
1822123-067
Unavailable
41
ROD,RAD.UP.
1822121-067
Unavailable
42
NUT JAM(10)
7542520
$2.39
43
ROD END, RH Substituted by 7061010
7060155
Unavailable
44
STRAP,SPACER TOP
5211344
$7.27
45
NUT, LOCK,(10)
7542503
$10.39
46
BRACE, PAN
5223997-067
Unavailable
47
NUT FLEX,(10)
7542703
Unavailable
48
ROD END,RH Substituted by 7061011
7060156
Unavailable
49
NUT-JAM(10)
7542711
$2.39
50
STRAP,SPACER BOTTOM
5211345
$12.99
