COOLING SYSTEM WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E952064 (4928942894C006)

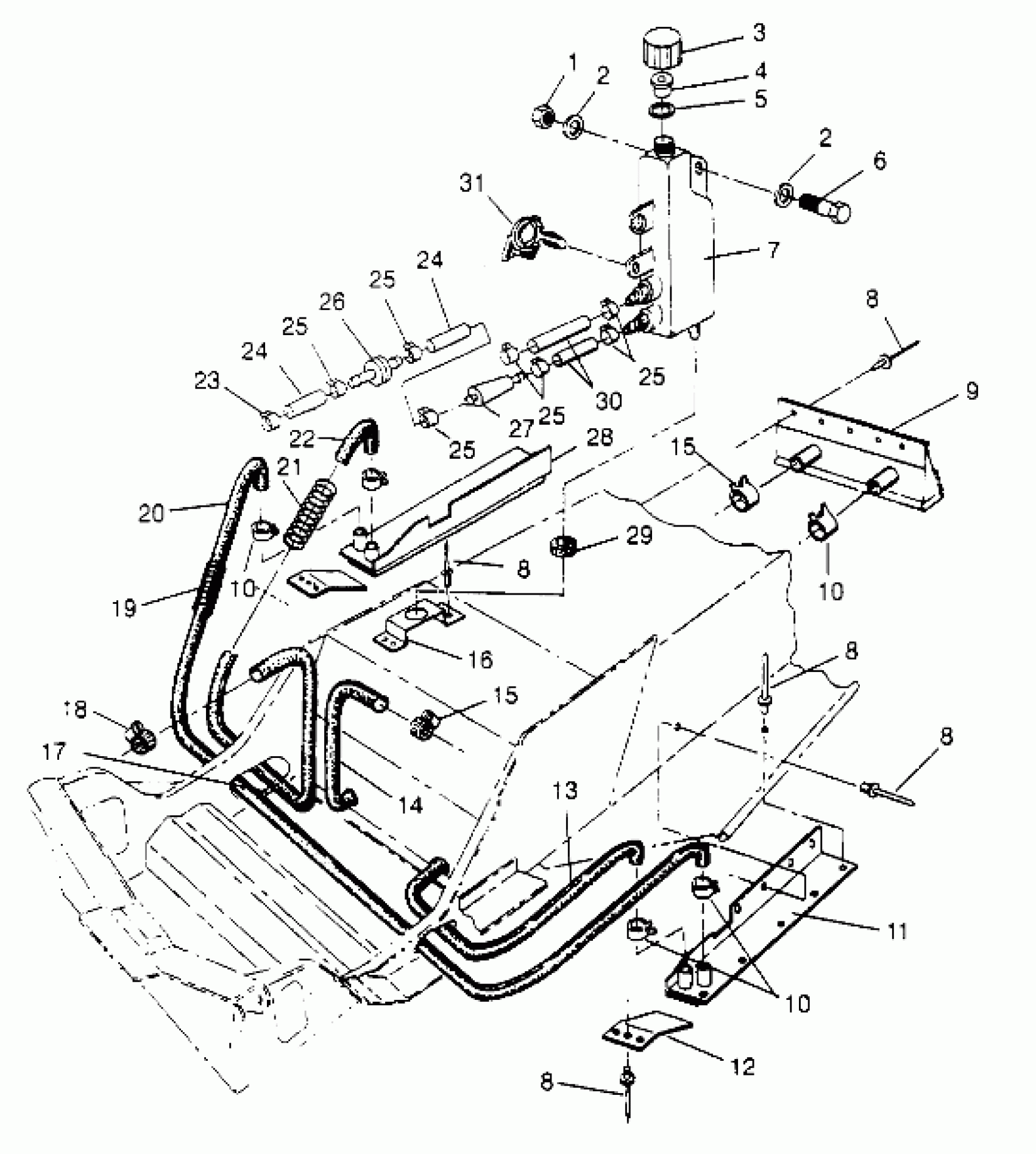

Polaris WIDE TRAK LX - 0952064 COOLING SYSTEM WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E952064 (4928942894C006) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXT,CTR.COOLING
2511187
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
10
CLAMP,HOSE,SIL,27MM.(10) Substituted by 7080841
7080562
Unavailable
11
EXT.,LH COOLING Substituted by 2511257
2511228
Unavailable
12
GUARD,COOL.EXT.
5240555
$11.59
13
HOSE,CROSSOVER,SHORT (Short)
5410558
$19.68
14
HOSE
5410398
Unavailable
15
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
15
CLAMP,HOSE,GRY,35MM.(10) Substituted by 7080844
7080564
$10.32
16
BRACKET
5223985
Unavailable
17
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
18
CLAMP,HOSE,BLK,29MM.(10) Substituted by 7080842
7080563
Unavailable
19
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
20
HOSE,CROSSOVER
5410557
Unavailable
21
SPRING,HOSE RETAINER
7041079
$4.95
22
HOSE,PUMP INLET
5410559
Unavailable
23
CLAMP-HOSE(10)
7080134
Unavailable
24
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
24
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
25
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
25
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
25
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
25
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
25
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
26
VALVE, CHECK
7052038
$10.51
27
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
28
EXT.,RH.COOLING. Substituted by 2511258
2511229
Unavailable
29
GROMMET RUBBER
5410021
Unavailable
30
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
31
CLIP, PLASTIC(10)
4020139
$4.79
