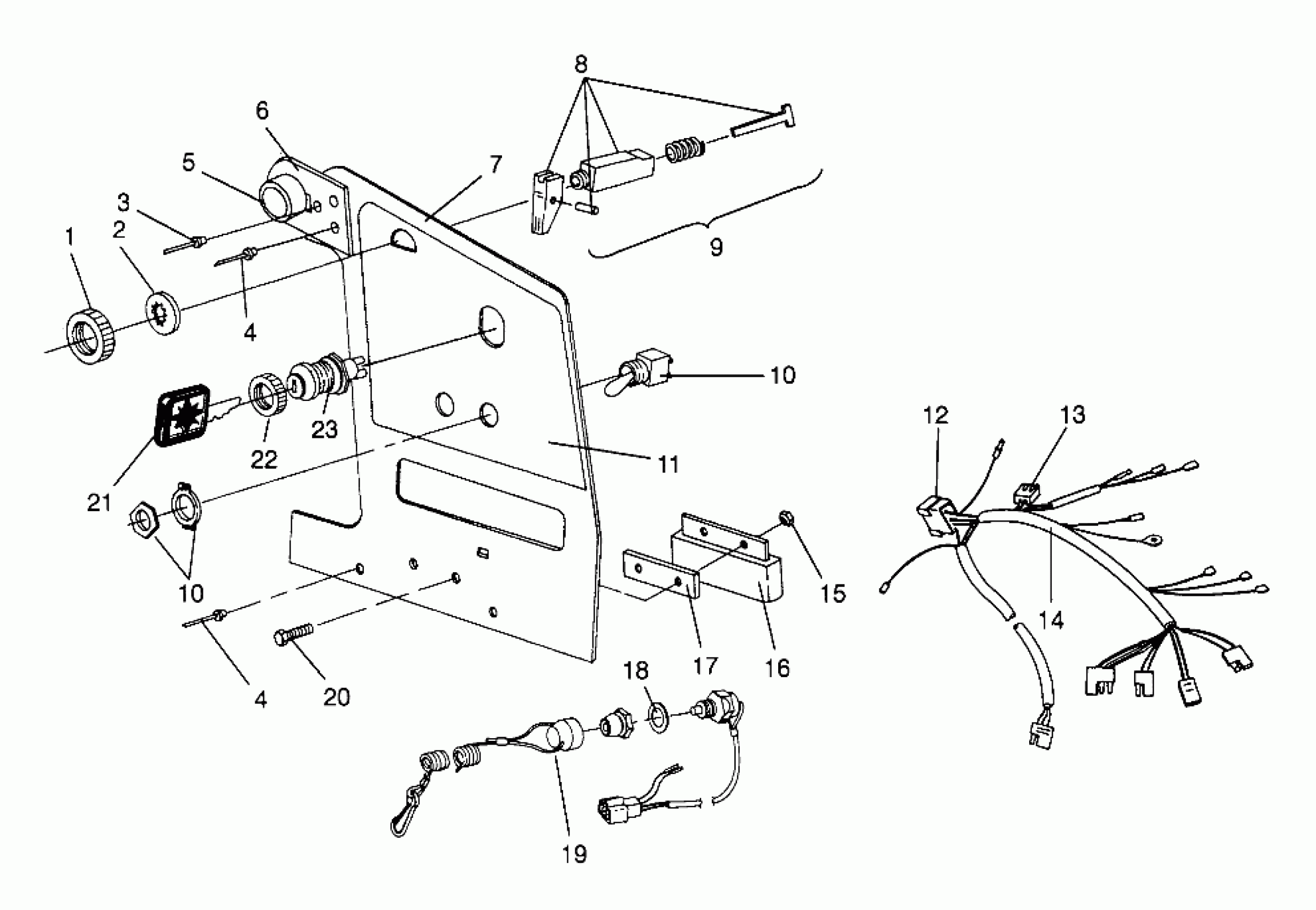

Polaris WIDE TRAK LX - 0952064 CONSOLE WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E952064 (4928942894A014) Diagram

Nut

7080229

$19.99

WASHER-LOCK(10)

7571610

$3.99

RIVET,(50)

7621477

$1.19

RIVET,INTERLOCK,B(50)

7661638

$1.49

RIVET,INTERLOCK,B(50)

7661638

$1.49

GUIDE, RECOIL

5431385

$10.51

BRKT,ROPE GUIDE,BLK.

5222682-067

Unavailable

CONSOLE,BLK(W'TRAK)

5222680-067

Unavailable

KIT-CHOKE CONTROL

2200188

$24.27

Cable, Choke Control

7080290

$105.22

SWITCH,H-BAR HEATER

4110066

Unavailable

SWITCH,H-BAR HEATER

4110066

Unavailable

DECAL, CONSOLE [No Longer Available]

7072973

Unavailable

Housing w/Receptacle

4020057

$3.51

CONNECTOR, BRAKE SWITCH

4020112

Unavailable

HARNESS, WIRE

2460333

Unavailable

HARNESS,MAIN WIRE,(EUR) (Euro)

2460519

Unavailable

NUT(10)

7541925

$1.49

REGULATOR,14 VAC.LR-9

4060122

Unavailable

SPACER,REGULATOR

5211573

Unavailable

WASHER(10)

7555817

Unavailable

SWITCH,TETHER Substituted by 2870668 (EURO)

4110156

$84.99

BOLT(10)

7512031

$2.23

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

5410611

Unavailable

NUT, IGN.SWITCH(10)

7543101

Unavailable

KIT,IGN. SWITCH (Incl. 21) NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A, B, C, D, or E switch. Letter code will be labeled on underside of switch body behind console. K

2200357

Unavailable
