CARBURETOR ASSEMBLY WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E952064 (4928942894C012)

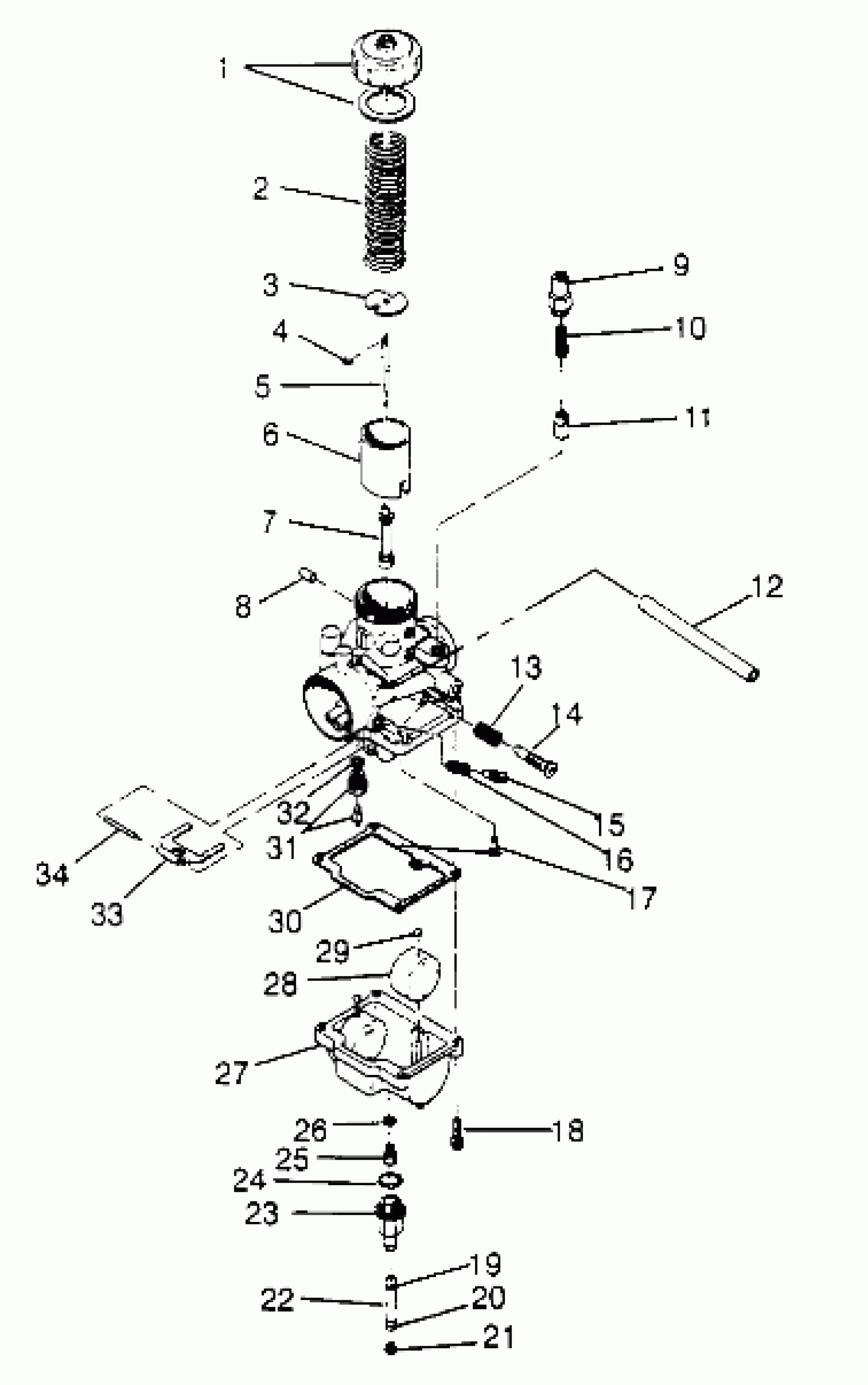

Polaris WIDE TRAK LX - 0952064 CARBURETOR ASSEMBLY WIDETRAK LX 0952064 and EUROPEAN WIDETRAK LX E952064 (4928942894C012) Diagram
#
Description
Price
1
TOP ASM (Incl. Gasket)
3130184
$32.37
2
SPRING, THROTTLE
3130318
$20.22
3
PLATE
3130027
$9.70
4
E RING(10) Substituted by 3130508
3130003
Unavailable
5
NEEDLE,JET,(6EJ26) (6EJ26-2)
3130423
$20.22
6
VALVE,THROTTLE,(3.0) (3.0)
3130372
$52.60
7
JET NEEDLE (166)
3130160
$36.41
8
CAP
3130479
$14.56
9
HOLDER,GUIDE
3130199
$28.32
10
SPRING,PLUNGER
3130006
$8.89
11
PLUNGER ASM, STARTER
3130328
$32.37
12
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
13
SPRING,THROTTLE ADJ.
3130010
$8.89
14
SCREW,THROTTLE STOP
3130009
$19.99
15
SCREW,AIR
3130011
$19.99
16
SPRING,AIR ADJUST
3130012
$8.89
17
JET,PILOT,#35(10) (#35)
3130066
$8.89
18
SCREW & WASHER(10)
3130025
$3.19
19
CLAMP,SPRING,(10)
7080534
$1.59
20
CLAMP,HOSE(10)
7080544
Unavailable
21
PLUG,TRAP
5431893
$12.94
22
DESC NOT_AVAILABLE
8450045-600
Unavailable
23
FITTING,SEDIMENT Substituted by 3130573
5020476
$10.63
24
O RING
3130239
Unavailable
25
JET,MAIN,HX.HD#190(10) (#190)
3130121
Unavailable
26
WASHER (10)
3130014
$1.59
27
CARBURETOR (Incl. 1-18, 24-34)
3130457
Unavailable
28
FLOAT ASM.
3130430
$43.56
29
CAP,(10)
3130237
$4.03
30
PACKING,FLOAT CHAMBER
3130020
$16.17
31
VALVE,NEEDLE Substituted by 3131146 (1.5)
3130016
$48.56
32
PACKING(10)
3130017
$4.03
33
ARM,FLOAT
3130018
$24.27
34
PIN, FLOAT NOTE: All qyt's. are per carb.
3130361
$8.89
