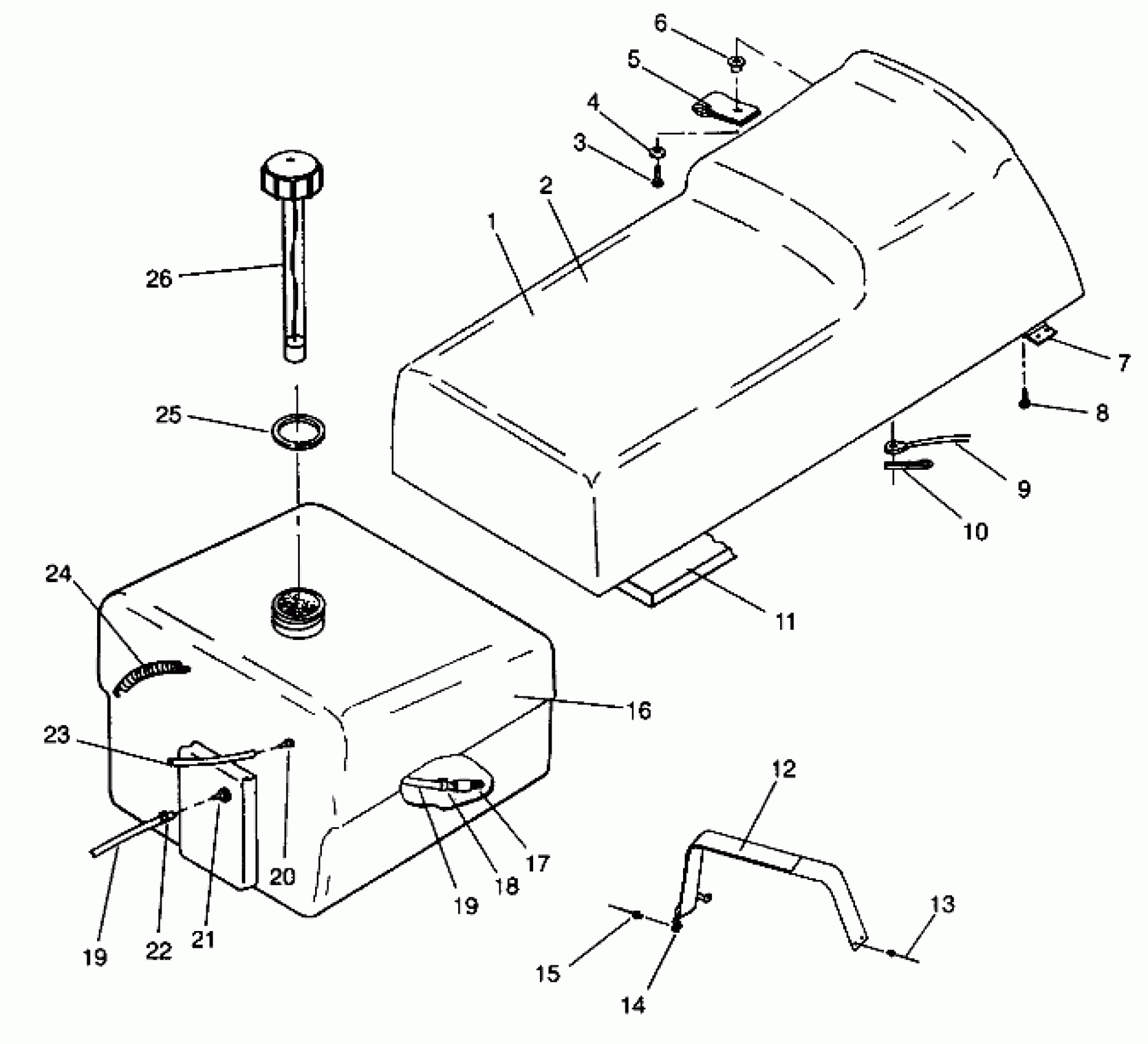

Polaris WIDE TRAK LX - 0942064 SEAT and GAS TANK ASSEMBLY WIDETRAK LX 0942064 (49250425040002) Diagram

SEAT ASM, 2-UP

2681651

Unavailable

COVER,SEAT

2681429

Unavailable

SCREW(10)

7511989

Unavailable

WASHER(10)

7558203

$3.19

Pull, Seat

5810464

$12.30

TEENUT(10)

7541930

$2.06

HINGE,FLAT(10)

7020023

$4.19

SCREW(10)

7511990

Unavailable

CABLE, HOOD

7080284

Unavailable

COTTER PIN(10)

7661401

$1.49

PAD, BOTTOM SEAT [No Longer Available]

5810446

Unavailable

SEATBELT ASM,(W'TRAK) (Incl. 14)

2690086

Unavailable

RIVET, BLIND(50)

7621467

$1.49

Footman Loop (Supplied w/Strap) (See Ref. 12)

-------

Unavailable

RIVET,INTERLOCK,B(50)

7661638

$1.49

TANK,FUEL(WIDETRAK) Substituted by 2511186

5431143

Unavailable

FUELPICKUP,W/STRAINER

7052037

$12.94

RING, COMPRESSION(10)

7080402

$1.60

DESC NOT_AVAILABLE

8450003-153

Unavailable

DESC NOT_AVAILABLE

8450003-153

Unavailable

FITTING,90 DEG,1/8,(10)

7052095

$4.79

FITTING - OUTLET(10)

7052023

$24.99

CLAMP-HOSE, (LARGE GREEN) (Green)

7080307

$1.49

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

SPRING,TANK,(10)

7042020

$13.75

GASKET-GAS CAP Substituted by 5810513

5810142

Unavailable

GAUGE,GAS Substituted by 2511246

2511149

Unavailable
