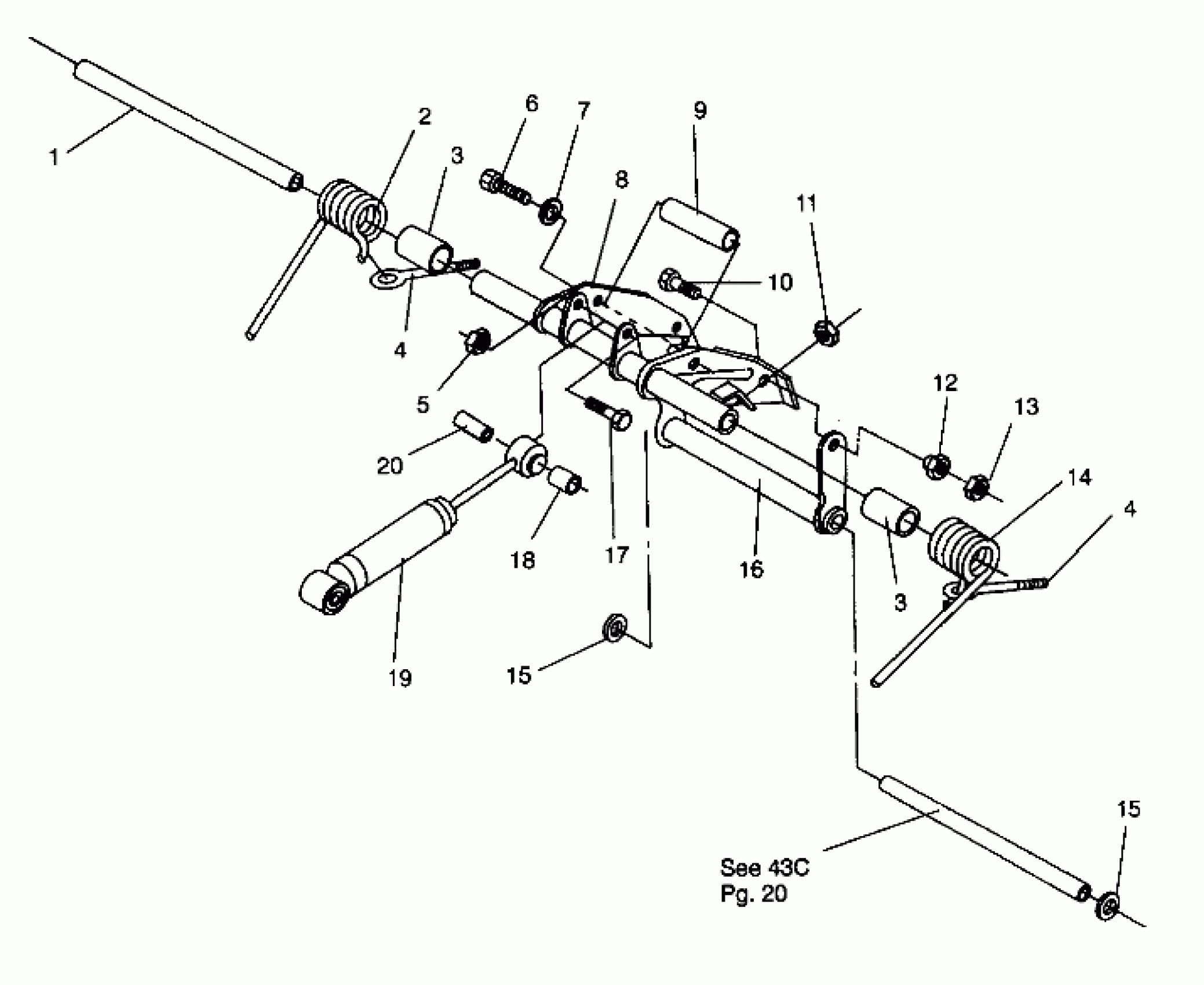

Polaris WIDE TRAK LX - 0942064 REAR TORQUE ARM ASSEMBLY WIDETRAK LX 0942064 (49250425040022) Diagram

#

Description
Price

1

SHAFT, MOUNTING

5020554

Unavailable

2

SPRING,RH,R.SUSP,BLK.

7041240-067

$94.99

3

SPACER, SPRING

5521277

$23.99

3

SPACER, SPRING

5521277

$23.99

4

BOLT-EYE, SPRING ADJ.(10)

7080221

$9.59

4

BOLT-EYE, SPRING ADJ.(10)

7080221

$9.59

5

NUT-5/16-18 NYLOK-Y

7542324

$1.49

6

BOLT(10)

7515415

$1.49

7

WASHER(10)

7552603

$1.49

8

ARM,R.TORQUE,BLK.

1540761-067

Unavailable

9

TUBE,SPACER,R.TORQUE

5010305

$15.67

10

BOLT(10)

7515317

$4.79

11

NUT-LOCK(10)

7542439

$1.49

12

NUT, SHOULDER(10)

7542326

$19.99

13

NUT LOCK(10)

7542302

$3.99

14

SPRING,LH,R.SUSP,BLK.

7041239-067

$130.70

15

MACHINERY BUSHING(10)

7556301

$3.19

15

MACHINERY BUSHING(10)

7556301

$3.19

16

ARM,R.PIVOT,BLK.

1540652-067

$74.99

17

BOLT(10)

7512329

$3.99

18

SPACER

5332631

$6.39

19

SHOCK

7041232

Unavailable

20

BUSHING

5430537

$3.99
