RACK and TUNNEL EXTENSION ASSEMBLY WIDETRAK LX 0942064 (49250425040010)

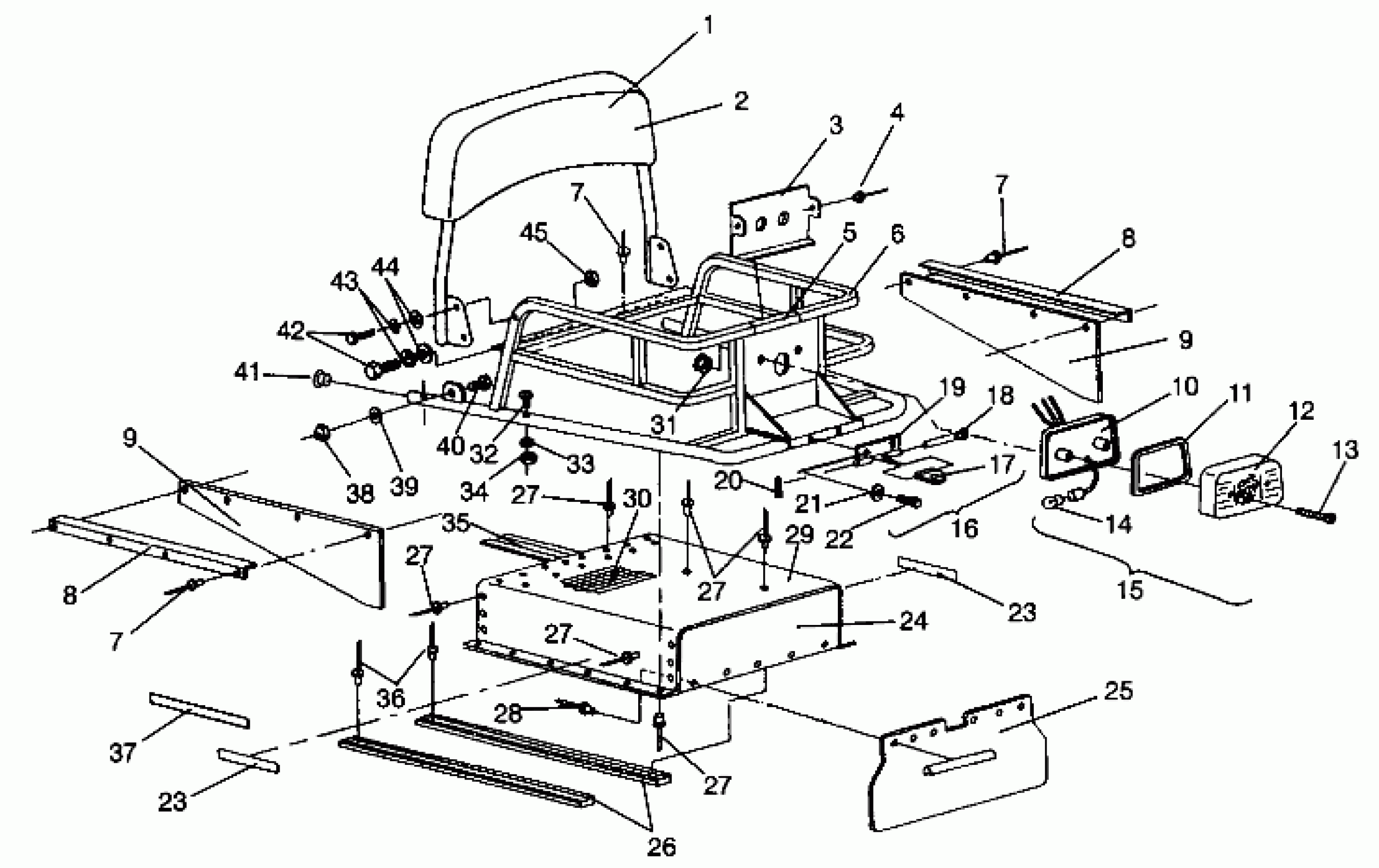

Polaris WIDE TRAK LX - 0942064 RACK and TUNNEL EXTENSION ASSEMBLY WIDETRAK LX 0942064 (49250425040010) Diagram
#
1
BACKREST ASM. (Incl. 2)
2681465
Unavailable
2
COVER, BACKREST
2681265
$257.13
3
SHIELD,TAILLIGHT
5222868-067
$20.63
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
DECAL,TRACK/SEAT,SILVER [No Longer Available]
7073123
Unavailable
6
RACK,BLK,(W'TRAK)
1011758-067
Unavailable
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
8
BRKT,SNOW-FLAP
5220497-067
$12.39
8
BRKT,SNOW-FLAP
5220497-067
$12.39
9
SNOW FLAP-SIDE
5810222
Unavailable
9
SNOW FLAP-SIDE
5810222
Unavailable
10
BASE&SOCKET,T/L
4032047
Unavailable
11
GASKET,TAILLIGHT
4032045
$4.03
12
LENS,TAILLIGHT
4032046
$32.37
13
Screw, Taillight
4032029
$4.79
14
BULB,TAILLIGHT Substituted by 4030063
4030044
Unavailable
15
TAILLIGHT ASM. (Incl. 10-14)
2432035
Unavailable
16
HITCHKIT,L.T./STARTRAK (Incl. 17-22)
2870708
Unavailable
17
HITCH WELD, BLK. Substituted by 2871178
1011624-067
Unavailable
18
CLEVIS PIN(10)
7662209
$9.59
19
HITCH WELD,BLK.(U.S.)
1011518-067
$31.75
20
COTTER PIN(10)
7661401
$1.49
21
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
22
SCREW(10) Substituted by 7512490
7512402
Unavailable
23
REFLECTOR RED
2670070
$9.91
23
REFLECTOR RED
2670070
$9.91
24
PANEL,TUNNEL,BACK
5222325
$24.16
25
FLAP,SNOW(WIDETRAK)
5410553
Unavailable
26
STRIP, WEAR, EXT.
5222448
$17.46
27
RIVET-3/16-.090-.290
7661637
$1.49
27
RIVET-3/16-.090-.290
7661637
$1.49
27
RIVET-3/16-.090-.290
7661637
$1.49
27
RIVET-3/16-.090-.290
7661637
$1.49
28
POP RIVET(50)
7621418
$1.49
29
TUNNEL, EXT.
5222324
$405.94
30
PROTECTOR, BED
5410560
$51.99
31
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
32
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
33
WASHER(10) Substituted by 7558301
7555776
Unavailable
34
NUT(10)
7542124
Unavailable
35
BRKT,HARNESS PROTECTOR
5222323
$24.27
36
RIVET(50)
7621449
$3.19
37
Decal - Reverse/Low Range (See Pg. A9, Ref. 1)
-------
Unavailable
38
NUT(10)
7542458
$9.59
39
WASHER(10) Substituted by 7555832
7555851
Unavailable
40
BOLT(10)
7515522
$3.99
41
PLUG(10)
5430713
Unavailable
42
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
43
WASHER(10)
7552606
$4.79
44
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
45
NUT-5/16-18 NYLOK-Y
7542324
$1.49
