HOOD ASSEMBLY WIDETRAK LX 0942064 (49250425040005)

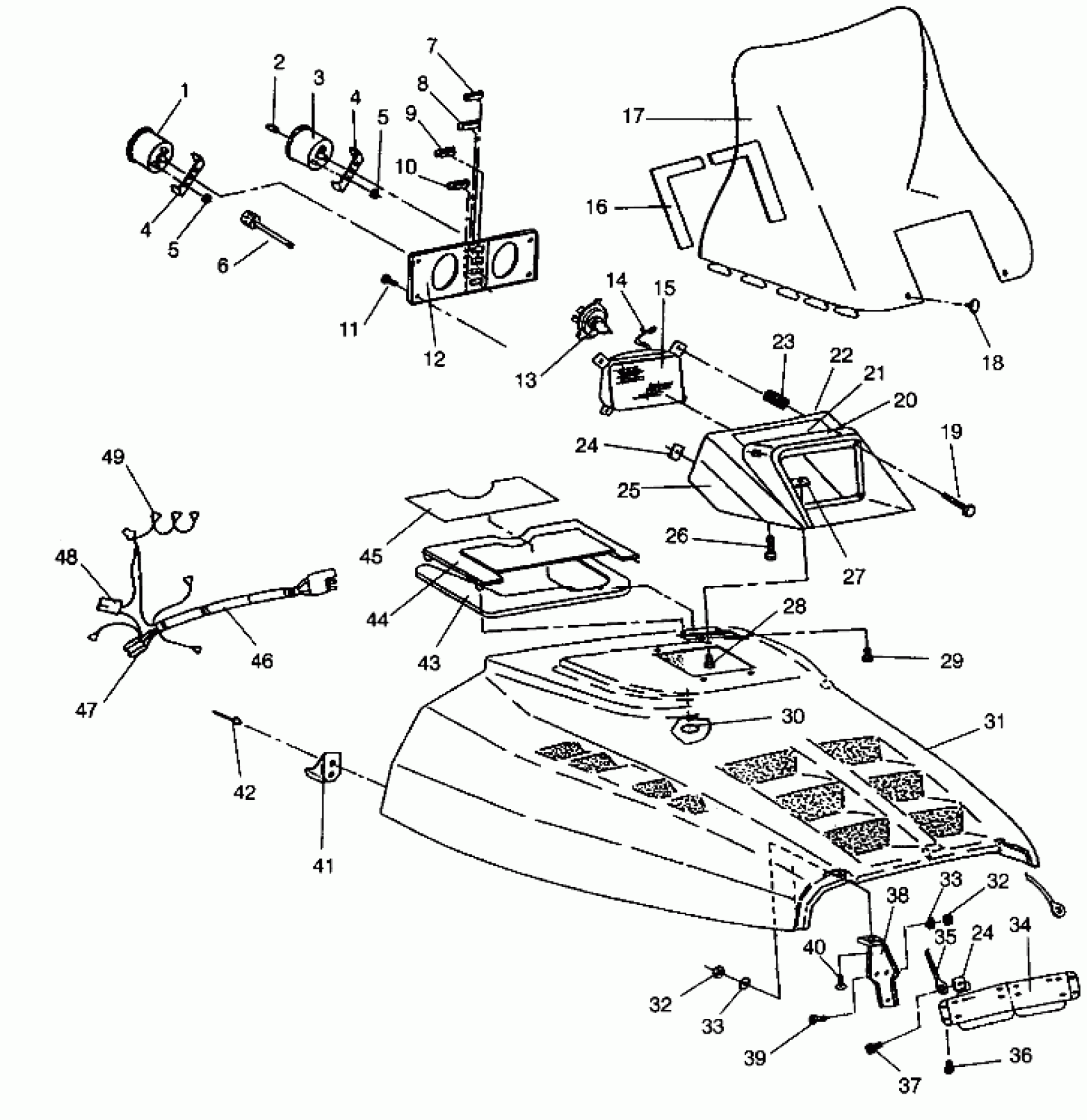

Polaris WIDE TRAK LX - 0942064 HOOD ASSEMBLY WIDETRAK LX 0942064 (49250425040005) Diagram
#
1
TACHOMETER (Incl. 4,5)
3280093
Unavailable
2
KNOB,TRIP ODOMETER,LH THD.
3280186
$9.70
3
SPEEDOMETER (Incl. 4,5)
3280092
$111.99
4
BRACKET
3280098
Unavailable
4
BRACKET
3280098
Unavailable
5
Nut
3280158
Unavailable
5
WASHER,SPLIT LOCK
3280156
$1.49
5
Nut
3280158
Unavailable
5
WASHER,SPLIT LOCK
3280156
$1.49
6
CABLE,SPEEDO.
3280094
$60.70
7
INDICATOR'TEMP'WARN.
4040011
$32.37
8
INDICATOR'LOW-OIL'WARN.
4040012
Unavailable
9
INDICATOR'HI-BEAM'WARN.
4040013
Unavailable
10
INDICATOR'REVERSE'WARN.
4040019
$28.32
11
SCREW,SCKT.HD.CAP(10)
7512008
Unavailable
12
BEZEL, INST.
5430924
Unavailable
13
BULB,QUARTZ.H/L,INDY
2870448
$24.99
14
RETAINER,H/L BULB
4032063
Unavailable
15
HEADLIGHT ASM.
4032040
Unavailable
16
PAD,W/S,LH,BLACK
5810437
Unavailable
16
PAD,W/S,RH,BLACK
5810438
$1.67
17
WINDSHIELD,CLR,X-HIGH
5431630
Unavailable
18
RIVET,(PLASTIC LOK)(50) Substituted by 7621509
7621505
$1.19
19
SCREW, ADJ.(10)
4032003
Unavailable
20
DECAL,POD WARN.TOP [No Longer Available]
7073111
Unavailable
21
DECAL,POD WARN.BOTT. [No Longer Available]
7073112
Unavailable
22
HSG,INST,TOP,BLK
5430923-070
Unavailable
23
SPRING-ADJ
4032002
Unavailable
24
NUT, SPEED(10)
7670056
Unavailable
24
NUT, SPEED(10)
7670056
Unavailable
25
HSG,INST.BOTT.BLK.
5430922-070
Unavailable
26
SCREW(10)
7512009
Unavailable
27
NUT, SPEED(10)
7670057
$1.49
28
SCREW, SEMS(10)
7512283
$3.99
29
SCREW(10)
7511840
Unavailable
30
O RING,(HEAVY),(10) Substituted by 5410970
5410387
$1.19
31
HOOD ASM,(WT.LX'94) (Incl. Foam & Foil)
2631581-136
Unavailable
32
NUT-LOCK(10)
7542122
$1.49
32
NUT-LOCK(10)
7542122
$1.49
33
WASHER,WROUGHT(10)
7558302
$1.59
33
WASHER,WROUGHT(10)
7558302
$1.59
34
PLATE,RE-INF.,(HD.)
5222105
$49.51
35
CABLE,HD.RETAINER
7080360
$24.27
36
SCREW(10)
7511861
Unavailable
37
SCREW(10)
7511989
Unavailable
38
HINGE ASM,HD,RED Substituted by 2635005-067
2635005-093
Unavailable
39
BOLT(10)
7512193
$2.39
40
BOLT-CARRIAGE(10)
7512263
$3.99
41
CUP, HOOD LATCH,(10)
5430733
$4.84
42
RIVET(50)
7621334
$1.49
43
SEAL, INTAKE
5810597
Unavailable
44
PANEL ASM,INTAKE,RED
2620078-136
$87.30
45
DECAL,DASH WARNING [No Longer Available]
7072870
Unavailable
46
HARNESS, HEADLIGHT Substituted by 2460552
2460332
Unavailable
47
HOUSING
4020052
Unavailable
48
Housing
4020115
$1.59
49
HOUSING
4020114
Unavailable
