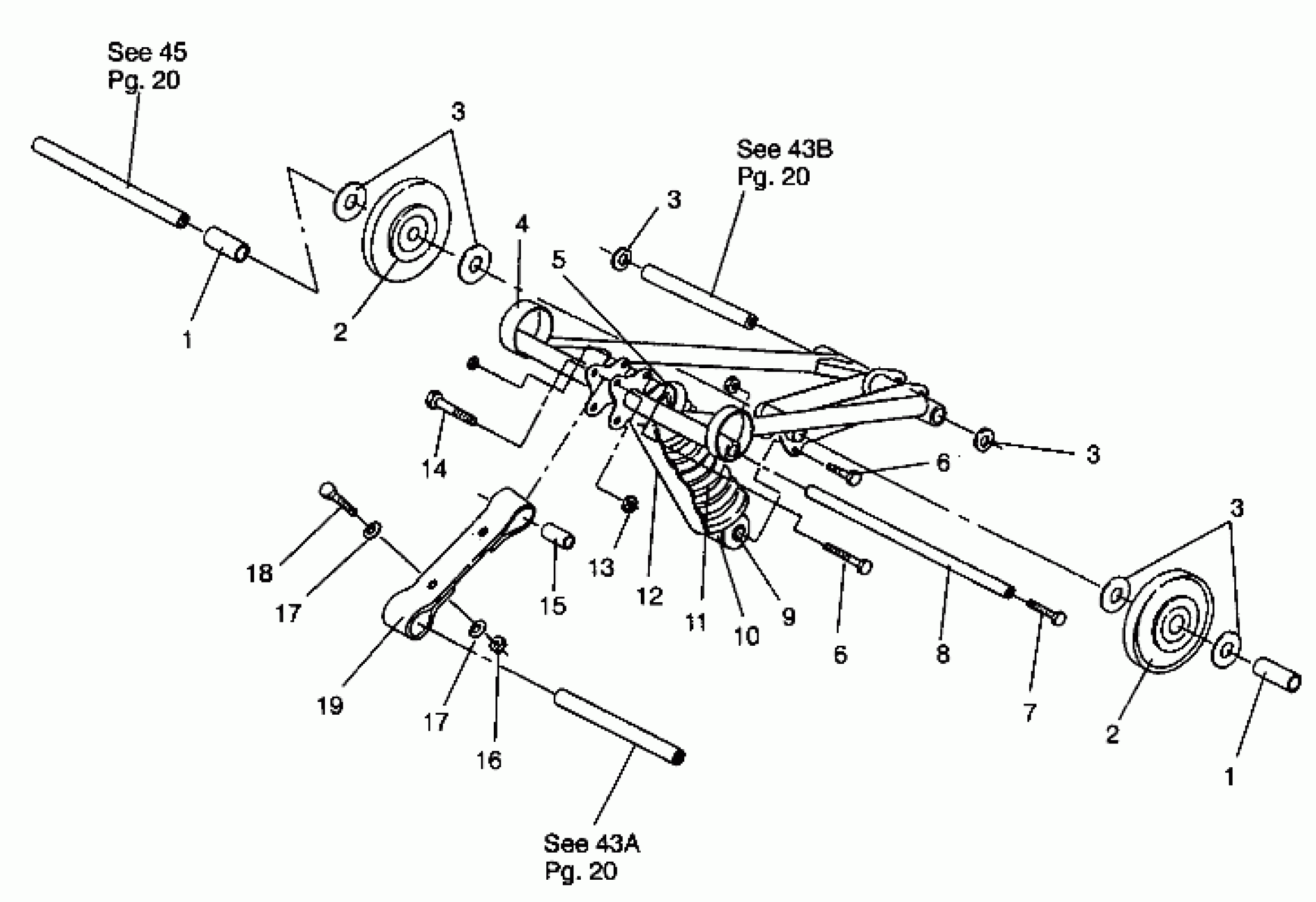

Polaris WIDE TRAK LX - 0942064 FRONT TORQUE ARM ASSEMBLY WIDETRAK LX 0942064 (49250425040021) Diagram

#

Description
Price

1

TUBE,OUTER SPACER

5333012

$12.99

1

TUBE,OUTER SPACER

5333012

$12.99

2

Asm., Bogie Wheel (See Pg. A20, Ref. 32)

-------

Unavailable

2

Asm., Bogie Wheel (See Pg. A20, Ref. 32)

-------

Unavailable

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

3

MACHINERY BUSHING(10)

7556301

$3.19

4

ARM,FR.TORQUE,BLK. Substituted by 1541044-067

1540649-067

Unavailable

5

RETAINER-TOP

5220225

$10.39

6

BOLT(10)

7515415

$1.49

6

BOLT(10)

7515415

$1.49

7

BOLT(10)

7515432

Unavailable

8

SHAFT, MOUNTING

5020554

Unavailable

9

SHOCK,CTR.SUSP.

7041281

Unavailable

10

SPACER,SHOCK RETAINER(10)

5210953

$6.39

11

SPRING-SHOCK SUSP

7041140

Unavailable

12

SHIELD-SPRING

5430671

$24.27

13

NUT-LOCK(10)

7542439

$1.49

14

BOLT(10)

7515438

$4.79

15

BUSHING,SUSPENSION

5010212

Unavailable

16

NUT-5/16-18 NYLOK-Y

7542324

$1.49

17

WASHER(10)

7555716

$1.59

17

WASHER(10)

7555716

$1.59

18

BOLT(10)

7515307

$3.99

19

STRAP, LIMITER

5410397

Unavailable
