ENGINE MOUNTING WIDETRAK LX 0942064 (49250425040025)

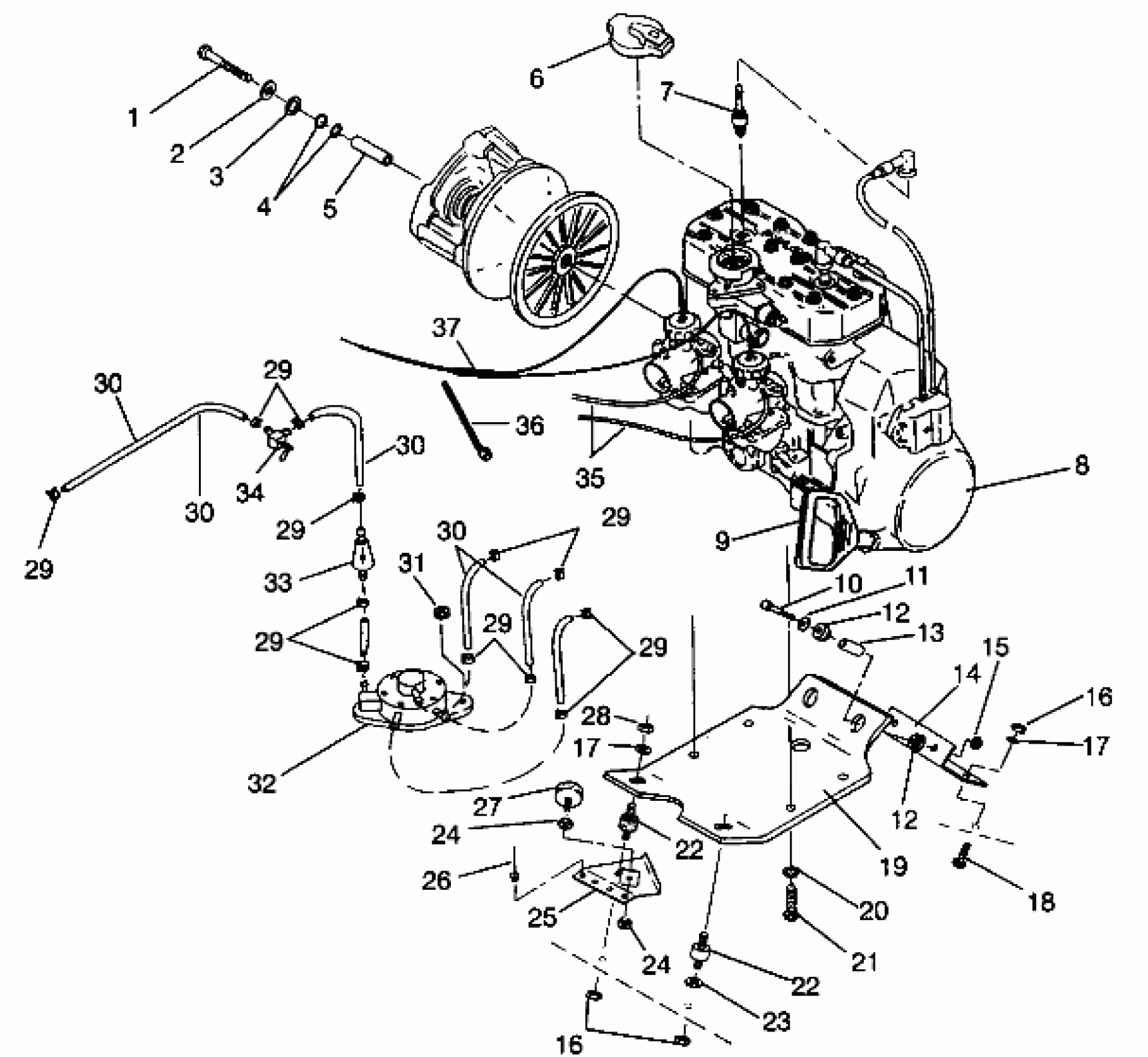

Polaris WIDE TRAK LX - 0942064 ENGINE MOUNTING WIDETRAK LX 0942064 (49250425040025) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
CAP, PRESSURE
2511155
Unavailable
7
SPARKPLUG, RN3C(8)
3070166
$3.99
8
DESC NOT_AVAILABLE
1211485
Unavailable
8
ENG.(S.B.)EC50PL-05 [No Longer Available]
3084621
Unavailable
9
HANDLE-RECOIL
5430520
Unavailable
10
SCREW(10)
7512533
$1.75
11
WASHER(10)
7555740
$1.59
12
MOUNT, ENGINE
5410390
Unavailable
12
MOUNT, ENGINE
5410390
Unavailable
13
SPACER, (MTR.MT.)
5332778
Unavailable
14
MOUNT, MOTOR [No Longer Available]
1011761-067
Unavailable
15
NUT, LOCK,(10)
7542503
$10.39
16
NUT-LOCK(10)
7542439
$1.49
16
NUT-LOCK(10)
7542439
$1.49
17
WASHER(10) Substituted by 7555806
7555720
$0.79
17
WASHER(10) Substituted by 7555806
7555720
$0.79
18
BOLT(10) Substituted by 7512457
7512491
Unavailable
19
PLATE, MTR.MT.
5222333
$53.17
20
WASHER LOCK(10)
7553101
$3.99
21
BOLT(10)
7512539
$3.99
22
MOUNT
3110022
Unavailable
22
MOUNT
3110022
Unavailable
23
WASHER(10)
7555721
$1.49
24
NUT, JAM(10)
7542432
$3.99
24
NUT, JAM(10)
7542432
$3.99
25
LIMITER,TORQUE,BLK.
1012048-067
$38.71
26
RIVET-3/16-.090-.290
7661637
$1.49
27
STOP
3110023
Unavailable
28
NUT LOCK(10)
7542411
$3.19
29
HOSE CLAMP, RED
7080003
$1.49
29
HOSE CLAMP, RED
7080003
$1.49
29
HOSE CLAMP, RED
7080003
$1.49
29
HOSE CLAMP, RED
7080003
$1.49
29
HOSE CLAMP, RED
7080003
$1.49
29
HOSE CLAMP, RED
7080003
$1.49
29
HOSE CLAMP, RED
7080003
$1.49
30
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
30
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
30
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
30
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
31
NUT-LOCK(10)
7542122
$1.49
32
Fuel Pump (See Pg. A36, Ref. 1)
-------
Unavailable
33
FILTER FUEL,(10)
2530008
$4.84
34
VALVE,FUEL SHUT-OFF
7052039
Unavailable
35
FUEL LINE,1/8 ID,600 CM.
8360009-600
Unavailable
36
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
37
CABLE,THROTTLE,W/OIL
7080554
$64.75
