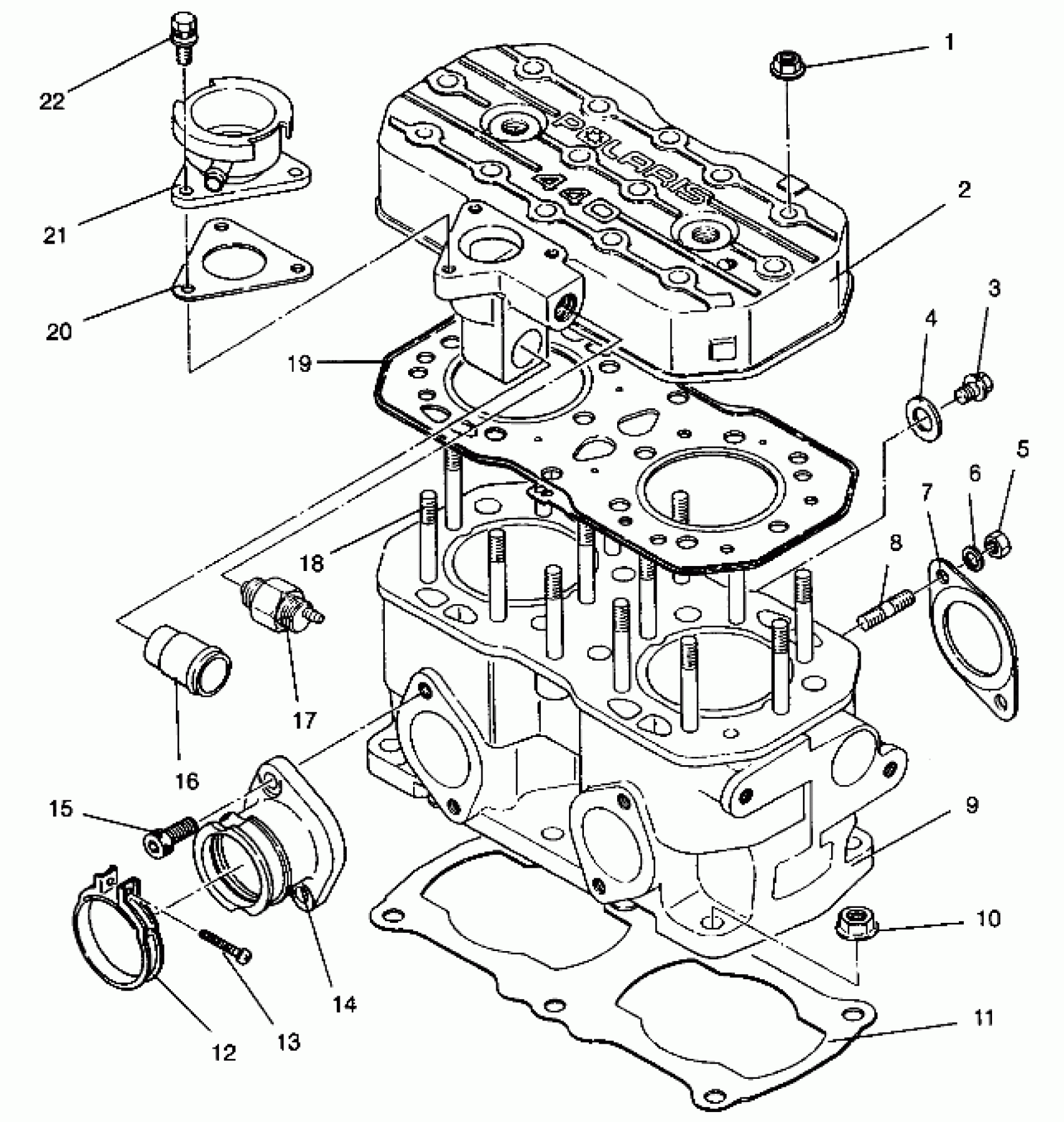

Polaris WIDE TRAK LX - 0942064 CYLINDER ASSEMBLY WIDETRAK LX 0942064 (49250425040031) Diagram

#

Description
Price

1

NUT-FLANGE(10)

3082910

$2.39

2

HEAD, CYLINDER (Incl. 16)

3083960

$354.99

3

Plug

3084491

Unavailable

4

Gasket, Aluminum

3084492

$4.03

5

NUT(10)

3080285

Unavailable

6

WASHER LOCK ,(10)

3080530

$3.19

7

GASKET,EXHAUST,NA(10) Substituted by 3086757

3084439

Unavailable

8

STUD (10)

3080016

$5.75

9

CYLINDER (Incl. 8,18)

3083958

$609.99

10

NUT-FLANGE(10)

3082911

$1.99

11

GASKET, CYL.,NA. Substituted by 3084768 (Cylinder) Non-Asbestos

3084029

Unavailable

12

BAND ASM. (Incl. 13)

3083166

$19.84

13

SCREW Substituted by 3081497

3083086

Unavailable

14

MOUNT, CARBURETOR Substituted by 3085044

3083306

Unavailable

15

Bolt, Allen

3081330

$3.99

16

Pipe, Water

3083452

Unavailable

17

SWITCH,THERMAL,IOS

3084284

Unavailable

18

STUD

3083360

Unavailable

19

GASKET, HEAD

3084332

Unavailable

20

GASKET, FILLER NECK

3083340

Unavailable

21

NECK, FILLER

3083398

Unavailable

22

BOLT&WASHER ASM.

3083361

Unavailable
