COOLING SYSTEM WIDETRAK LX 0942064 (49250425040028)

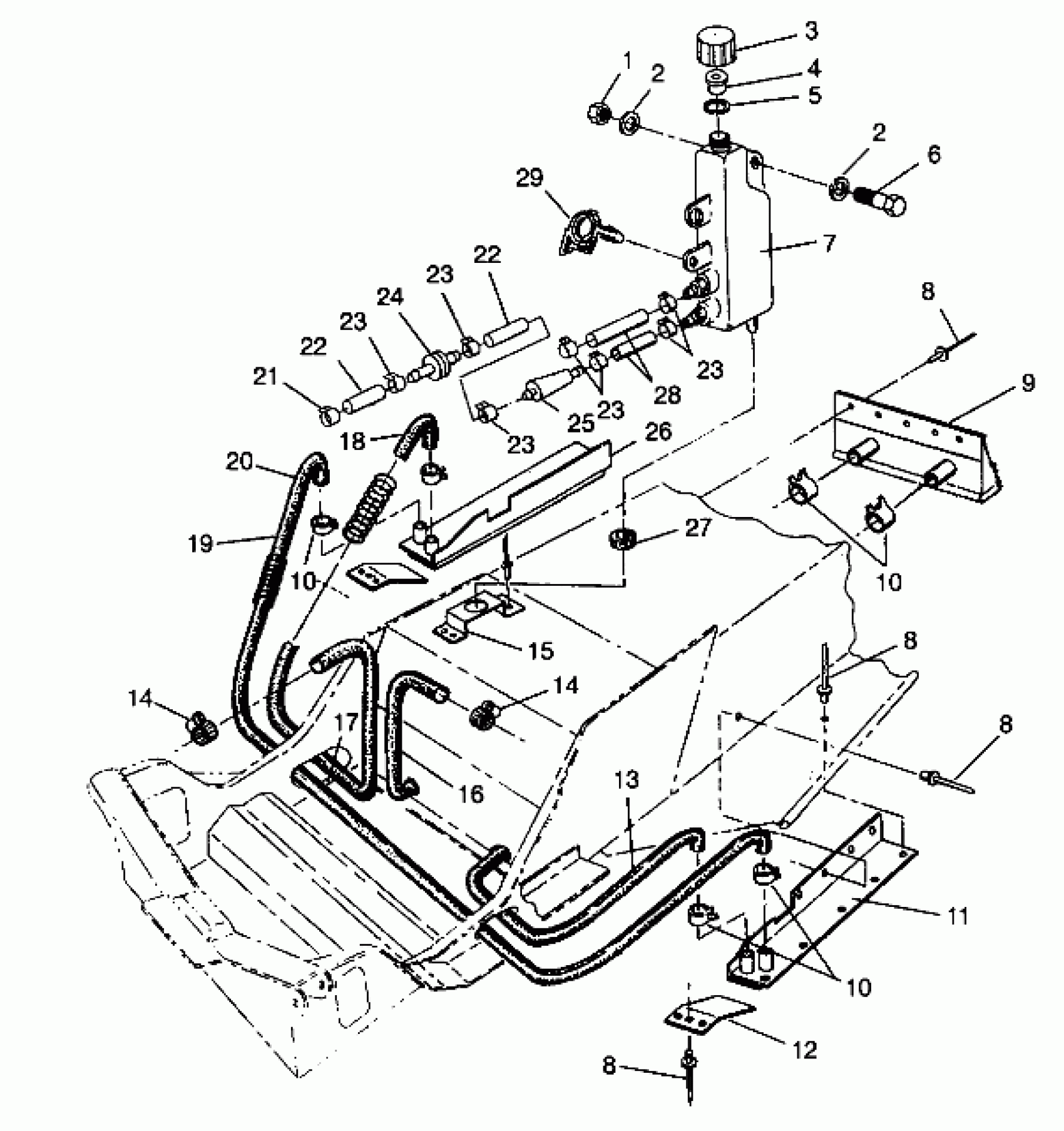

Polaris WIDE TRAK LX - 0942064 COOLING SYSTEM WIDETRAK LX 0942064 (49250425040028) Diagram
#
Description
Price
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXT,CTR.COOLING
2511187
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
11
EXT.,LH COOLING
2511202
Unavailable
12
GUARD,COOLING EXT
5240101
Unavailable
13
HOSE,CROSSOVER,SHORT (Short)
5410558
$19.68
14
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
14
CLAMP-HOSE,(10) Substituted by 7080475
7080233
$10.32
15
BRACKET
5223985
Unavailable
16
HOSE
5410398
Unavailable
17
TRIM,EDGE,6FT,BLACK [No Longer Available]
5521131
Unavailable
18
HOSE,PUMP INLET
5410559
Unavailable
19
HOSE,CROSSOVER
5410557
Unavailable
20
SPRING,HOSE RETAINER
7041079
$4.95
21
CLAMP-HOSE(10)
7080134
Unavailable
22
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
22
TAPE,FOIL,1.50 X 7.50
5810831
Unavailable
23
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
23
CLAMP-HOSE, (LARGE GREEN) (Green)
7080307
$1.49
24
VALVE, CHECK
7052038
$10.51
25
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
26
EXT.,RH COOLING
2511203
Unavailable
27
GROMMET RUBBER
5410021
Unavailable
28
FUEL LINE-50FT.PKG. Substituted by 8450003-1525
2870563
Unavailable
29
CLIP, PLASTIC(10)
4020139
$4.79
