TUNNEL ASSEMBLY WIDETRAK GT 0952061 and EUROPEAN WIDETRAK GT E952061 (4928962896A006)

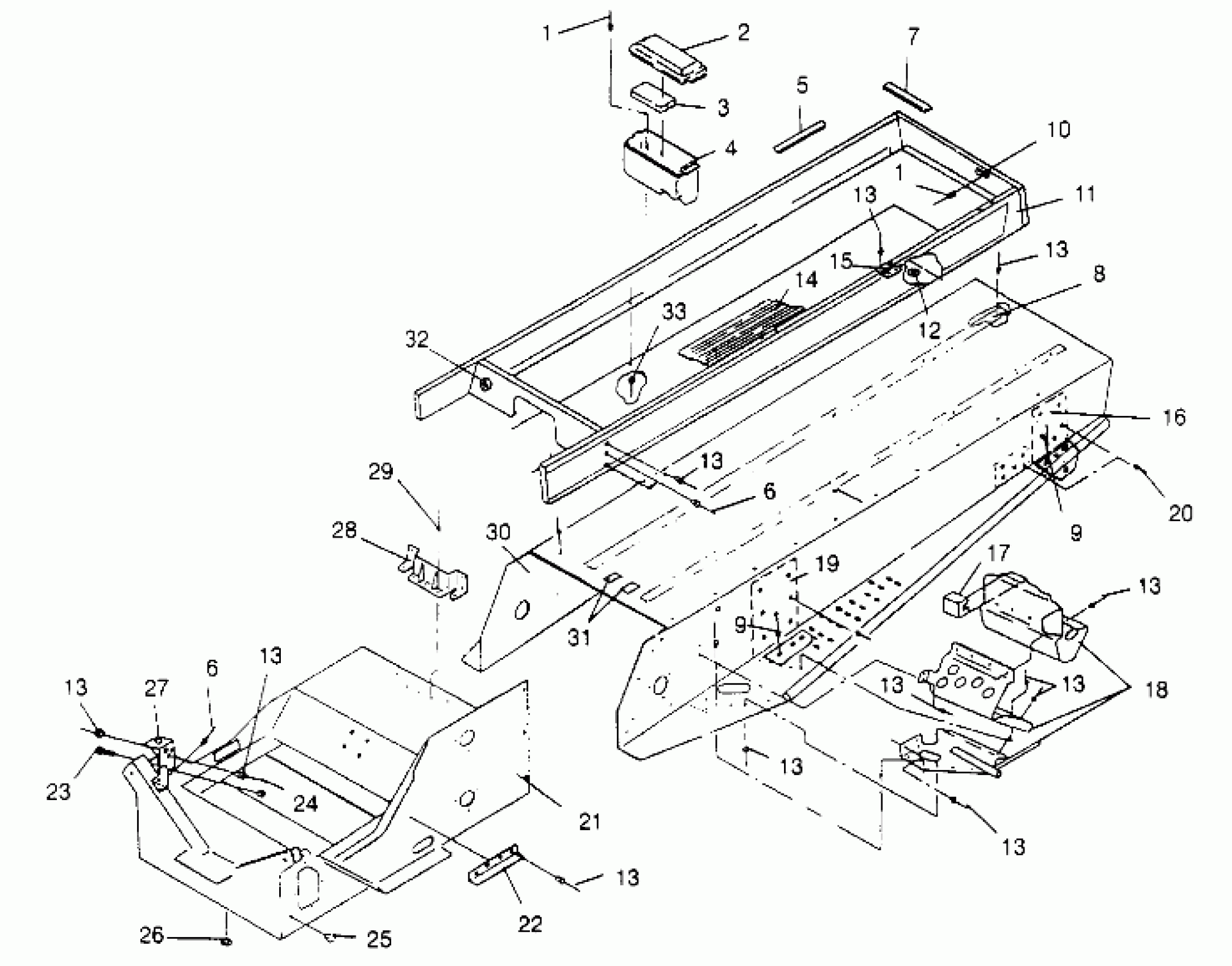

Polaris WIDE TRAK GT - 0952061 TUNNEL ASSEMBLY WIDETRAK GT 0952061 and EUROPEAN WIDETRAK GT E952061 (4928962896A006) Diagram
#
1
RIVET,3/16X.402(50)
7621432
$1.49
1
RIVET,3/16X.402(50)
7621432
$1.49
2
COVER,TOOL BOX
5430719
$28.32
3
FOAM,TOOLBOX
5811051
Unavailable
4
BOX-TOOL
5430716
$11.99
5
SEAL,SEAT RISER
5410562
$20.22
6
DESC NOT_AVAILABLE
7621638
Unavailable
6
DESC NOT_AVAILABLE
7621638
Unavailable
7
SEAL,SHORT,SEAT RISER
5410563
$7.73
8
Strip, Wear
5510233
$23.99
9
RIVET ,(50)
7661836
$0.63
9
RIVET ,(50)
7661836
$0.63
10
CLIP, HALF(10)
7080393
$3.19
11
RISER, SEAT ASM.
1011947-067
$196.83
12
Grommet
5410437
$2.39
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
13
RIVET-3/16-.090-.290
7661637
$1.49
14
Protector, Riser
5410561
$89.90
15
HINGE,FLAT(10)
7020023
$4.19
16
BRKT,RH,R.SUSP.
1011858-067
Unavailable
16
BRKT,LH,R.SUSP
1011857-067
Unavailable
17
EXTRUSION,CLUTCHGUARD
5521238
$6.46
18
FOOTREST ASM,LH,(GT)
1012071
Unavailable
18
FOOTREST ASM,RH,(GT)
1012072
Unavailable
19
BRACKET,LH,SUSP.
5240820-067
Unavailable
19
BRACKET,RH,SUSP.
5240821-067
Unavailable
20
RIVET ,(50)
7661837
$1.49
21
BULKHEAD,'GT' Substituted by 1012032-067
1012032
Unavailable
22
GUARD
5223789
Unavailable
23
SCREW(10)
7512307
$3.99
24
NUT LOCK(10)
7542321
$1.49
25
PLUG, HOLE(10)
7080416
$5.65
26
PLUG-HOLE
7080398
$4.84
27
SUPPORT,MUFFLER
1012079-067
$28.32
28
BRACKET, GASTANK
5221932-067
Unavailable
29
RIVET(50)
7621301
$3.99
30
TUNNEL ASM,'GT' Substituted by 1012402 (Incl. 16, 19)
1012081
$497.60
31
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
32
BUSHING,(OPEN/CLOSE)(10)
7080392
$2.07
33
RIVET(50)
7621429
$1.49
