- Partiron
- OEM Parts
- Polaris
- SNOW
- SNO
- 1995
- WIDE TRAK GT - 0952061
SUSPENSION ASSEMBLY WIDETRAK GT 0952061 and EUROPEAN WIDETRAK GT E952061 (4928962896B007)

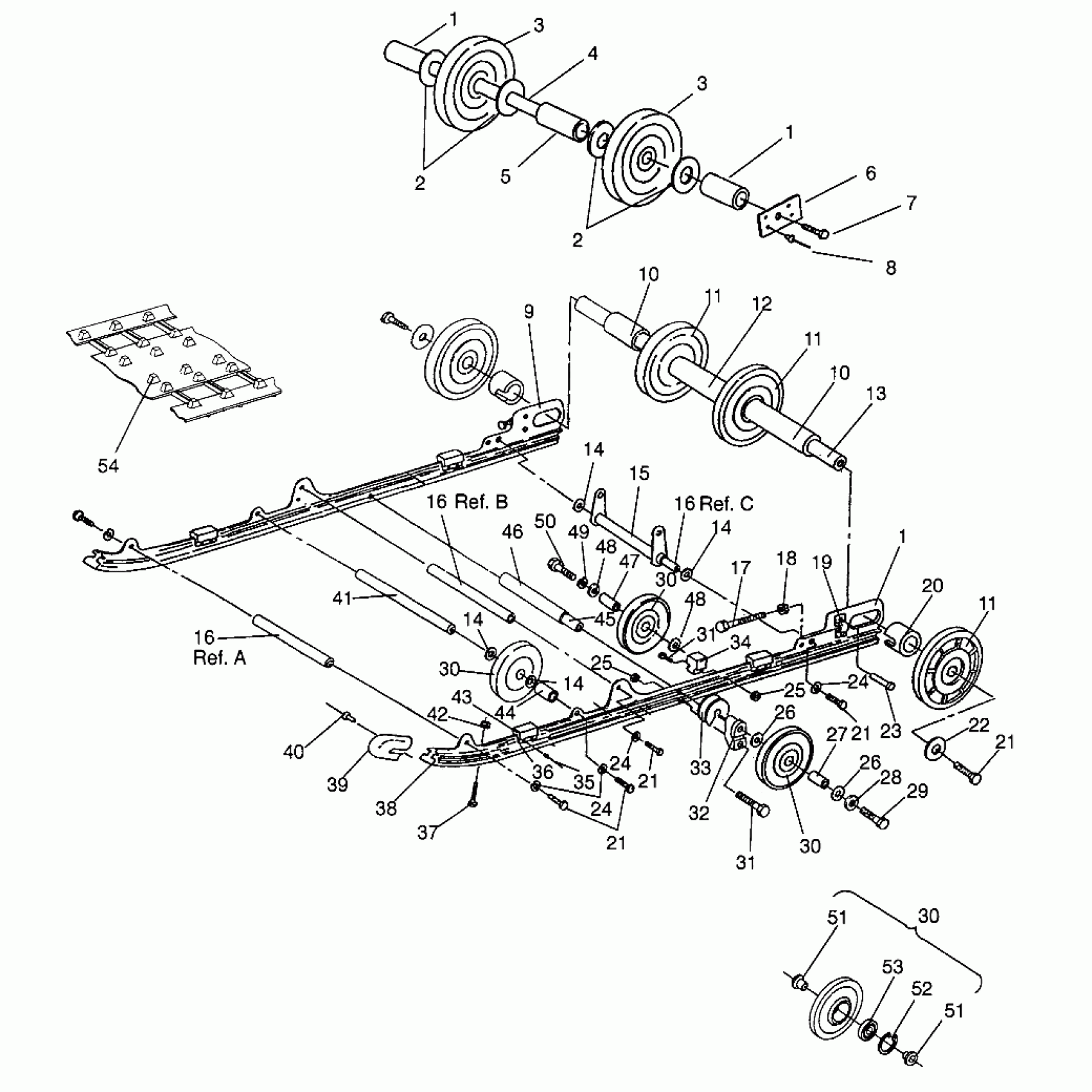

Polaris WIDE TRAK GT - 0952061 SUSPENSION ASSEMBLY WIDETRAK GT 0952061 and EUROPEAN WIDETRAK GT E952061 (4928962896B007) Diagram
#
1
SPACER, OUTER
5333019-067
$15.99
1
SPACER, OUTER
5333019-067
$15.99
1
SPACER, OUTER
5333019-067
$15.99
2
WASHER(10)
7555726
$1.59
2
WASHER(10)
7555726
$1.59
3
WHEEL, CARRIER
1543021
Unavailable
3
WHEEL, CARRIER
1543021
Unavailable
4
SHAFT,MTG. (Part of PN 2200622: Kit - Heavy Duty Tunnel Reinforcement)
5020836
$32.37
4
SHAFT,MTG,CARRIER
5020558
Unavailable
5
SPACER,BLK,IN.CARRIER
5333020-067
$24.99
6
PLATE, TUNNEL Substituted by 5211220-067
5211220
Unavailable
7
BOLT(10)
7515432
Unavailable
8
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
9
RAIL ASM,LH,141"(W'TRAK>) Substituted by 1541126 (Incl. 19, 36, 39, 43)
1540771
Unavailable
9
RAIL ASM,RH,141"(W'TRAK>) Substituted by 1541127 (Incl. 19, 36, 39, 43)
1540772
Unavailable
10
SPACER,R.IDLER SIDE
5333037
Unavailable
10
SPACER,R.IDLER SIDE
5333037
Unavailable
11
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
11
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
11
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
12
SPACER,R.IDLER,INNER
5333013
Unavailable
13
SHAFT,IDLER,REAR
5020717
Unavailable
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
15
ARM,R.PIVOT,BLK.
1540652-067
$74.99
16
SHAFT,PIVOT ARM,FRT. (A)
5020718
Unavailable
16
SHAFT,PIVOT ARM,FR. Substituted by 5020718 (B)
5020551
Unavailable
16
SHAFT,PIVOT ARM,FRT. (A)
5020718
Unavailable
16
SHAFT,PIVOT ARM,FR. Substituted by 5020718 (B)
5020551
Unavailable
16
SHAFT,PIVOT ARM,FRT. (A)
5020718
Unavailable
16
SHAFT,PIVOT ARM,FR. Substituted by 5020718 (B)
5020551
Unavailable
17
BOLT, ADJUSTER(10)
7515455
$29.99
18
NUT(10)
7542440
Unavailable
19
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
20
SPACER-IDLER-OUTER
5332641
Unavailable
21
BOLT(10)
7515526
$1.19
21
BOLT(10)
7515526
$1.19
21
BOLT(10)
7515526
$1.19
21
BOLT(10)
7515526
$1.19
22
WASHER(10) Substituted by 7556130
7571629
Unavailable
23
RIVET,(50)
7621501
$2.39
24
WASHER(10)
7552603
$1.49
24
WASHER(10)
7552603
$1.49
24
WASHER(10)
7552603
$1.49
25
NUT LOCK(10)
7542403
$3.99
25
NUT LOCK(10)
7542403
$3.99
26
WASHER, FLAT(10)
7555852
$2.39
26
WASHER, FLAT(10)
7555852
$2.39
27
SPACER, WHEEL
5333116
$7.99
28
WASHER LOCK(10)
7553101
$3.99
29
BOLT(10)
7512538
$6.39
30
WHEEL, IDLER (Incl. 51-53)
1543018
$56.65
30
WHEEL, IDLER (Incl. 51-53)
1543018
$56.65
30
WHEEL, IDLER (Incl. 51-53)
1543018
$56.65
30
WHEEL, IDLER (Incl. 51-53)
1543018
$56.65
31
BOLT(10)
7512404
$3.99
31
BOLT(10)
7512404
$3.99
32
SPACER
5630399
$11.99
33
ROLLER, SPRING
5431366
$10.51
34
BRACKET,BOGIE WHEEL
5130570
$48.56
35
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
36
REINF., BUMPER
5222629
$13.75
37
SCREW(10)
7512227
$3.19
38
SLIDER,BLK. Substituted by 5521320
5521296
Unavailable
39
COVER-RAIL TIP
5430627
$32.37
40
RIVET(50)
7621435
$1.49
41
SHAFT,SPANNER
5020720
$34.99
42
NUT-LOCK(10)
7542122
$1.49
43
BUMPER, RAIL
5810554
$7.27
44
TUBE,OUTER SPACER
5333012
$12.99
45
SHAFT,REAR SHOCK Substituted by 5020719
5020651
Unavailable
46
SPACER,R.SHOCK
5333138
$39.99
47
SPACER
5332786
$7.99
48
WASHER(10)
7555804
$3.99
48
WASHER(10)
7555804
$3.99
49
LOCK WASHER(10)
7553201
$3.99
50
BOLT(10)
7512659
$7.99
51
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
51
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
52
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
53
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
54
TRACK,141 IN.(W'TRAK)
5410748
Unavailable
