GEARCASE ASSEMBLY WIDETRAK GT 0952061 and EUROPEAN WIDETRAK GT E952061 (4928962896B005)

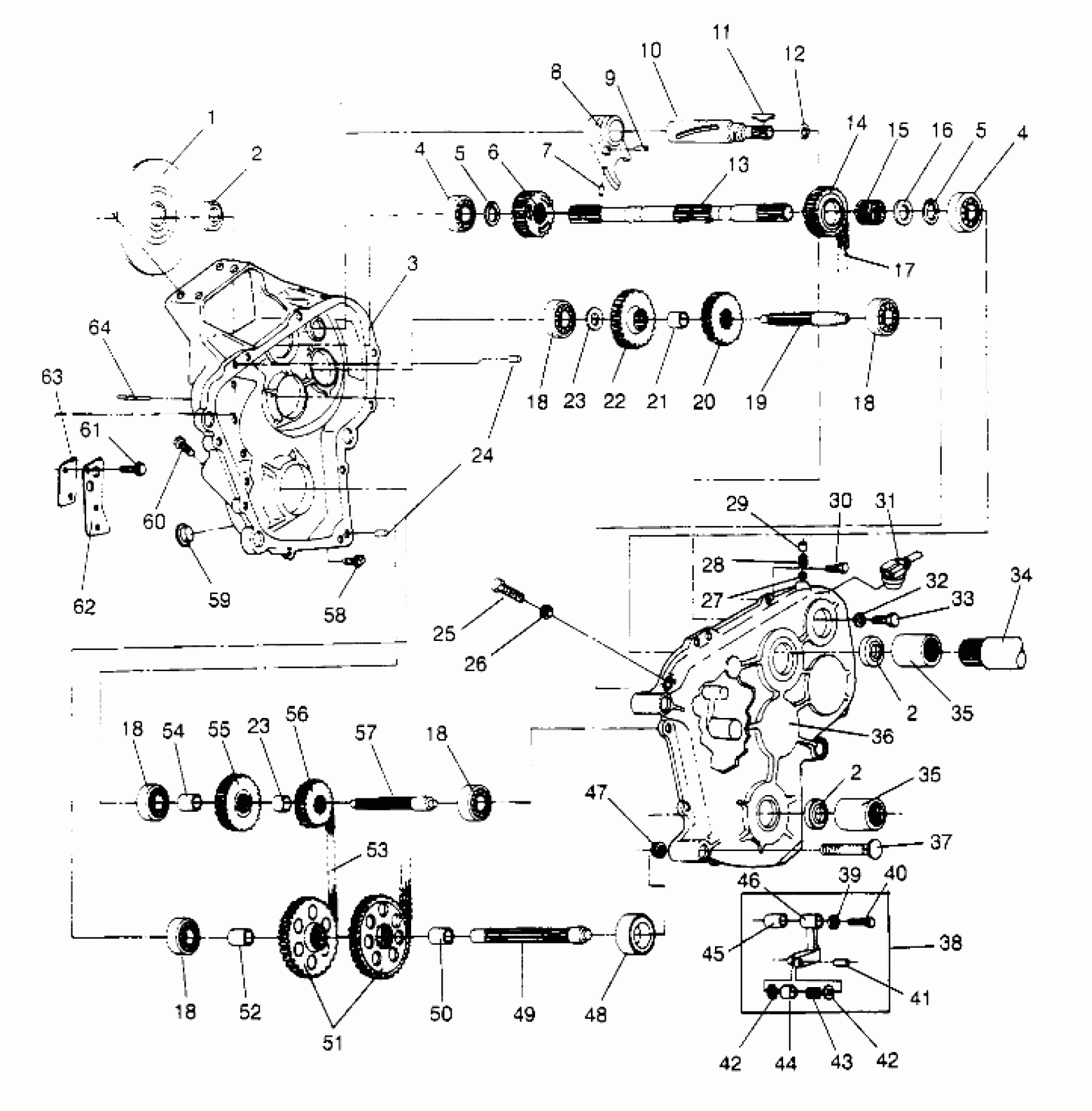

Polaris WIDE TRAK GT - 0952061 GEARCASE ASSEMBLY WIDETRAK GT 0952061 and EUROPEAN WIDETRAK GT E952061 (4928962896B005) Diagram
#
1
DISC BRAKE WELD.
1910027
Unavailable
2
SEAL, OIL
3610015
Unavailable
2
SEAL, OIL
3610015
Unavailable
2
SEAL, OIL
3610015
Unavailable
3
GEARCASE,RH,MACH.
5130755
Unavailable
4
BEARING,205,W/O SEAL
3514304
$15.99
4
BEARING,205,W/O SEAL
3514304
$15.99
5
RING, RET.(10)
7710411
Unavailable
5
RING, RET.(10)
7710411
Unavailable
6
PINION, REVERSE
5130667
Unavailable
7
PIN, SPRING(10)
7661206
Unavailable
8
FORK, SHIFT
5130662
$134.99
9
PIN, DOWEL(10)
7661819
Unavailable
10
SHAFT, SHIFT
5130802
Unavailable
11
WEIGHT, KEY(10)
7721112
Unavailable
12
O RING(10)
5410440
$4.84
13
SHAFT, INPUT
5020508
Unavailable
14
GEAR,19T,FWD.
5130697
Unavailable
15
BEARING, NEEDLE
3554503
Unavailable
16
WASHER(10)
7555751
Unavailable
17
CHAIN 66 PITCH
3224024
Unavailable
18
BEARING, BALL
3514001
$19.99
18
BEARING, BALL
3514001
$19.99
18
BEARING, BALL
3514001
$19.99
18
BEARING, BALL
3514001
$19.99
18
BEARING, BALL
3514001
$19.99
19
SHAFT,LOW RANGE
5020481
Unavailable
20
GEAR, 24T
5130607
Unavailable
21
SPACER
5010260
Unavailable
22
GEAR,30T,LOW RANGE (Low Range Shaft)
5130758
Unavailable
23
SPACER,REV.SHAFT
5010225
Unavailable
23
SPACER,REV.SHAFT
5010225
Unavailable
24
PIN, DOWEL(10)
7661904
Unavailable
25
SCREW(10)
7512470
Unavailable
26
NUT(10)
7542404
$1.59
27
BALL, DETENT
7080310
$5.99
28
SPRING,SHIFTER DETENT Substituted by 7041483
7041187
Unavailable
29
SCREW, SET(10)
7515473
Unavailable
30
SCREW(10)
7512225
$3.99
31
SW,REV./NEUT.INDIC.
4110062
$32.37
32
WASHER-1/4X1/2X.025 EXT TTH-Y
7552604
$1.59
33
SCREW(10)
7512144
Unavailable
34
JACKSHAFT,BLK,(WIDETRAK) Substituted by 6230095-067
6230074-067
Unavailable
35
COUPLER, GREASEABLE
1341096
Unavailable
35
COUPLER, GREASEABLE
1341096
Unavailable
36
GEARCASE,LH MACH.
5130628
Unavailable
37
BOLT(10)
7515474
$3.33
38
TIGHTENER ASM,GEARCASE Substituted by 1332213
1332096
$159.99
39
WASHER EXT LOCK Substituted by 7577909
7575004
Unavailable
40
BOLT(10)
7512329
$3.99
41
PIN,CHAIN TIGHTENER
7662210
Unavailable
42
WASHER THRUST(10)
7558702
$1.59
42
WASHER THRUST(10)
7558702
$1.59
43
BEARING
3553002
$11.99
44
WHEEL,C/C IDLER
5630123
Unavailable
45
BUSHING
5010217
Unavailable
46
BLOCK,TIGHTENER [No Longer Available]
5630122
Unavailable
47
NUT(10)
7542423
$3.99
48
BEARING,CHAINCASE
3514305
$19.99
49
SHAFT, OUTPUT
6230065
Unavailable
50
SPACER,OUTPUT SHAFT
5010227
Unavailable
51
SPROCKET-41T
3222037
Unavailable
52
SPACER,OUTPUT
5020480
Unavailable
53
CHAIN, SILENT
3224037
Unavailable
54
SPACER
5010261
Unavailable
55
GEAR,30T,REVERSE (Reverse Shaft)
5130757
Unavailable
56
SPKT, 18T
3221042
$68.48
57
SHAFT, REVERSE
5020446
Unavailable
58
PLUG, PIPE
7051513
Unavailable
59
PLUG, PIPE(10)
7051519
Unavailable
60
PLUG, PIPE(10)
7051511
Unavailable
61
SCREW(10)
7512252
Unavailable
62
PLATE, VENT
5211036
Unavailable
63
GASKET, VENT
5810305
Unavailable
64
PIN-SPIRAL(10)
7661504
$1.27
