ENGINE MOUNTING WIDETRAK GT 0952061 and EUROPEAN WIDETRAK GT E952061 (4928962896C004)

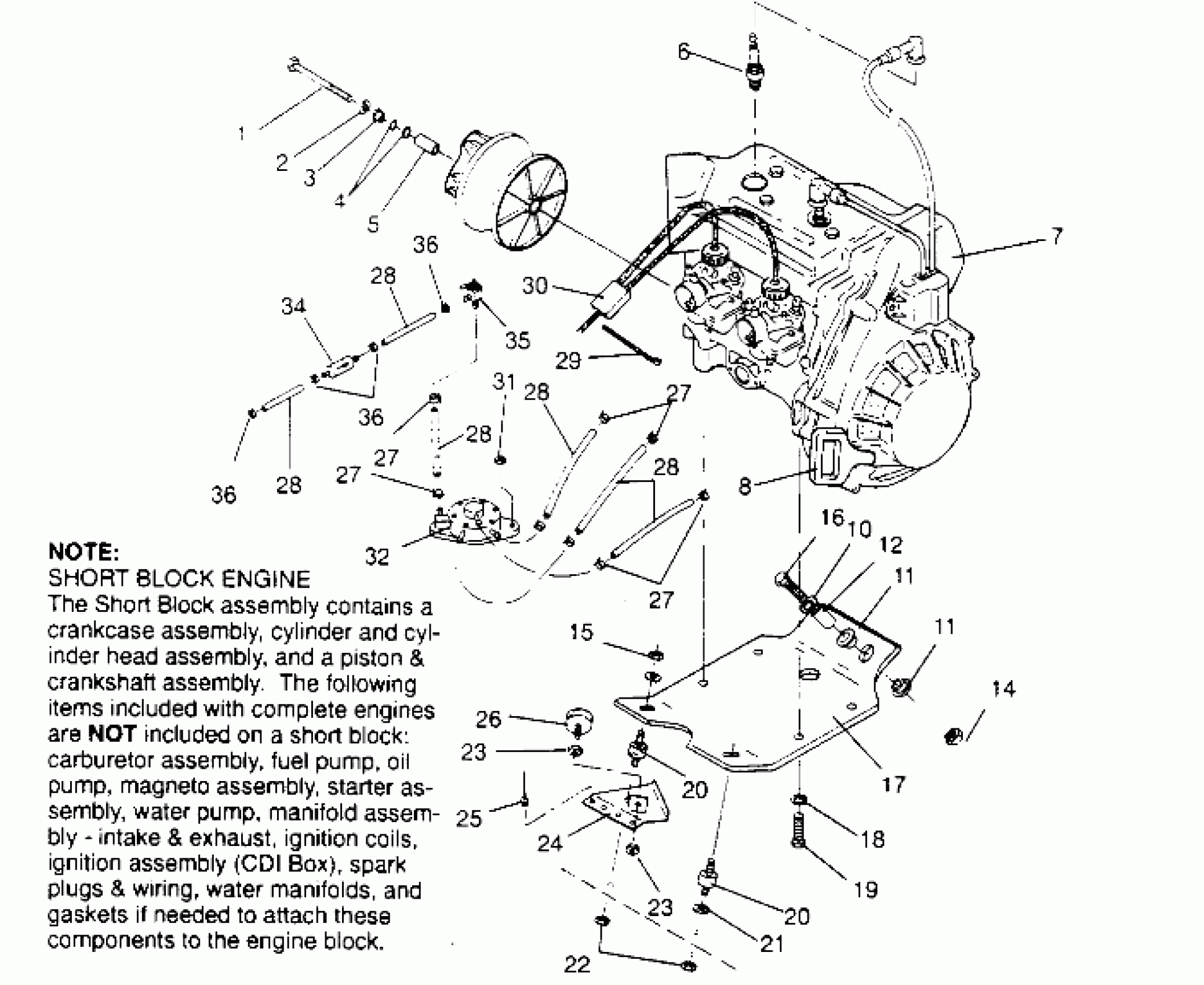

Polaris WIDE TRAK GT - 0952061 ENGINE MOUNTING WIDETRAK GT 0952061 and EUROPEAN WIDETRAK GT E952061 (4928962896C004) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
SPARKPLUG (10)
3070156
$3.99
7
ENG.(S.B.)EC50PM-03 [No Longer Available]
3084618
Unavailable
8
HANDLE-RECOIL
5430520
Unavailable
10
WASHER(10)
7555740
$1.59
11
MOUNT, ENGINE
5410390
Unavailable
11
MOUNT, ENGINE
5410390
Unavailable
12
TUBE,SPACER
5333354
Unavailable
14
NUT,FLANGE(10)
7542522
$5.59
15
NUT-LOCK(10)
7542439
$1.49
16
SCREW(10)
7512530
$5.59
17
PLATE,MOTOR MT.
5240263
Unavailable
18
WASHER LOCK(10)
7553101
$3.99
19
BOLT(10)
7512539
$3.99
20
MOUNT
3110022
Unavailable
20
MOUNT
3110022
Unavailable
21
WASHER(10)
7555721
$1.49
22
NUT LOCK(10)
7542411
$3.19
23
NUT, JAM(10)
7542432
$3.99
23
NUT, JAM(10)
7542432
$3.99
24
LIMITER,TORQUE,BLK.
1012048-067
$38.71
25
RIVET-3/16-.090-.290
7661637
$1.49
26
STOP
3110023
Unavailable
27
HOSE CLAMP, RED
7080003
$1.49
27
HOSE CLAMP, RED
7080003
$1.49
27
HOSE CLAMP, RED
7080003
$1.49
27
HOSE CLAMP, RED
7080003
$1.49
28
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
28
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
28
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
28
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
28
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
29
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
30
CABLE,THROTTLE,W/OIL
7080554
$64.75
31
NUT-LOCK(10)
7542122
$1.49
32
Fuel Pump (See Pg. C34, Ref. 1)
-------
Unavailable
34
FILTER FUEL,(10)
2530008
$4.84
35
VALVE,FUEL SHUT-OFF
7052039
Unavailable
36
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
36
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
36
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
