TUNNEL ASSEMBLY WIDETRAK GT 0942061 (49261126110001)

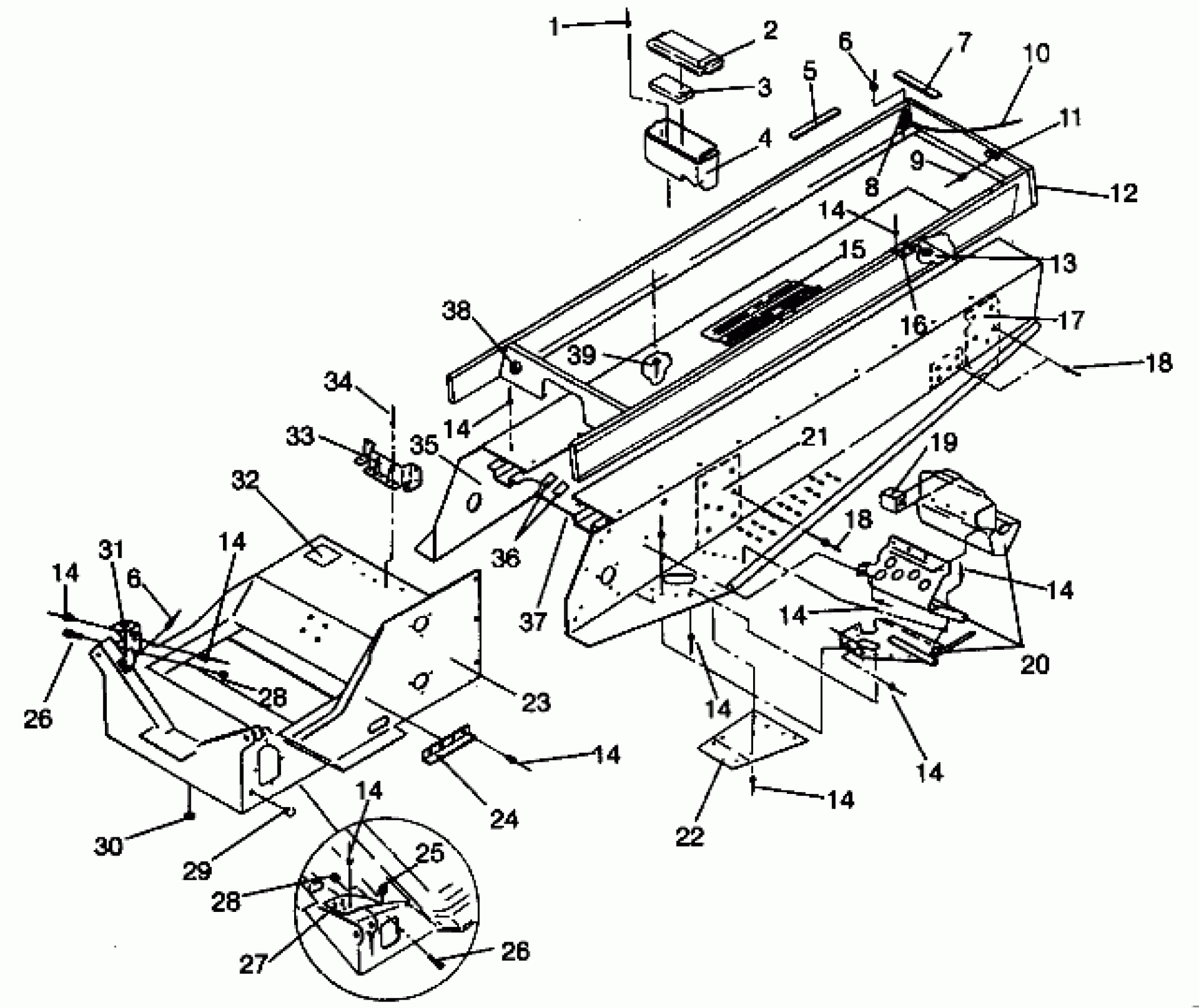

Polaris WIDE TRAK GT - 0942061 TUNNEL ASSEMBLY WIDETRAK GT 0942061 (49261126110001) Diagram
#
1
RIVET(50)
7621332
$1.49
2
COVER,TOOL BOX
5430719
$28.32
3
FOAM - TOOL BOX
5810266
Unavailable
4
BOX-TOOL
5430716
$11.99
5
SEAL,SEAT RISER
5410562
$20.22
6
RIVET(50)
7621452
$1.49
6
RIVET(50)
7621452
$1.49
7
SEAL,SHORT,SEAT RISER
5410563
$7.73
8
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
9
RIVET,3/16X.402(50)
7621432
$1.49
10
CABLE, HOOD
7080284
Unavailable
11
CLIP, HALF(10)
7080393
$3.19
12
RISER, SEAT ASM.
1011947-067
$196.83
13
Grommet
5410437
$2.39
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
14
RIVET-3/16-.090-.290
7661637
$1.49
15
Protector, Riser
5410561
$89.90
16
HINGE,FLAT(10)
7020023
$4.19
17
BRKT,LH.R.SUSP,BLK.
1011749-067
Unavailable
17
BRKT,RH.R.SUSP,BLK.
1011750-067
Unavailable
18
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
18
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
19
EXTRUSION,CLUTCHGUARD
5521238
$6.46
20
FOOTREST ASM, LH
2200311
Unavailable
20
FOOTREST ASM, RH
2200312
Unavailable
21
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
22
PLATE,TUNNEL,LH Substituted by 5222351-067
5222351
Unavailable
22
PLATE,TUNNEL,RH Substituted by 5222352-067
5222352
Unavailable
23
BULKHEAD Substituted by 1011937-067
1011937
Unavailable
24
GUARD
5223789
Unavailable
25
WASHER FLAT(10)
7555701
$3.99
26
SCREW(10)
7512307
$3.99
26
SCREW(10)
7512307
$3.99
27
BRACE,LH BLKHD,BLK.
5222582-067
Unavailable
27
BRACE,RH BLKHD,BLK.
5222583-067
Unavailable
28
NUT LOCK(10)
7542321
$1.49
28
NUT LOCK(10)
7542321
$1.49
29
PLUG, HOLE(10)
7080416
$5.65
30
PLUG-HOLE
7080398
$4.84
31
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
32
DECAL, BRAKE [No Longer Available]
7072088
Unavailable
33
BRACKET, GASTANK
5221932-067
Unavailable
34
RIVET(50)
7621301
$3.99
35
TUNNEL ASM. Substituted by 1012401 (Incl. 17,21)
1011938
Unavailable
36
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
37
BRKT,TUNNEL SPACER [No Longer Available]
5222290
Unavailable
38
BUSHING,(OPEN/CLOSE)(10)
7080392
$2.07
39
RIVET(50)
7621429
$1.49
