RACK and TUNNEL EXTENSION ASSEMBLY WIDETRAK GT 0942061 (49261126110010)

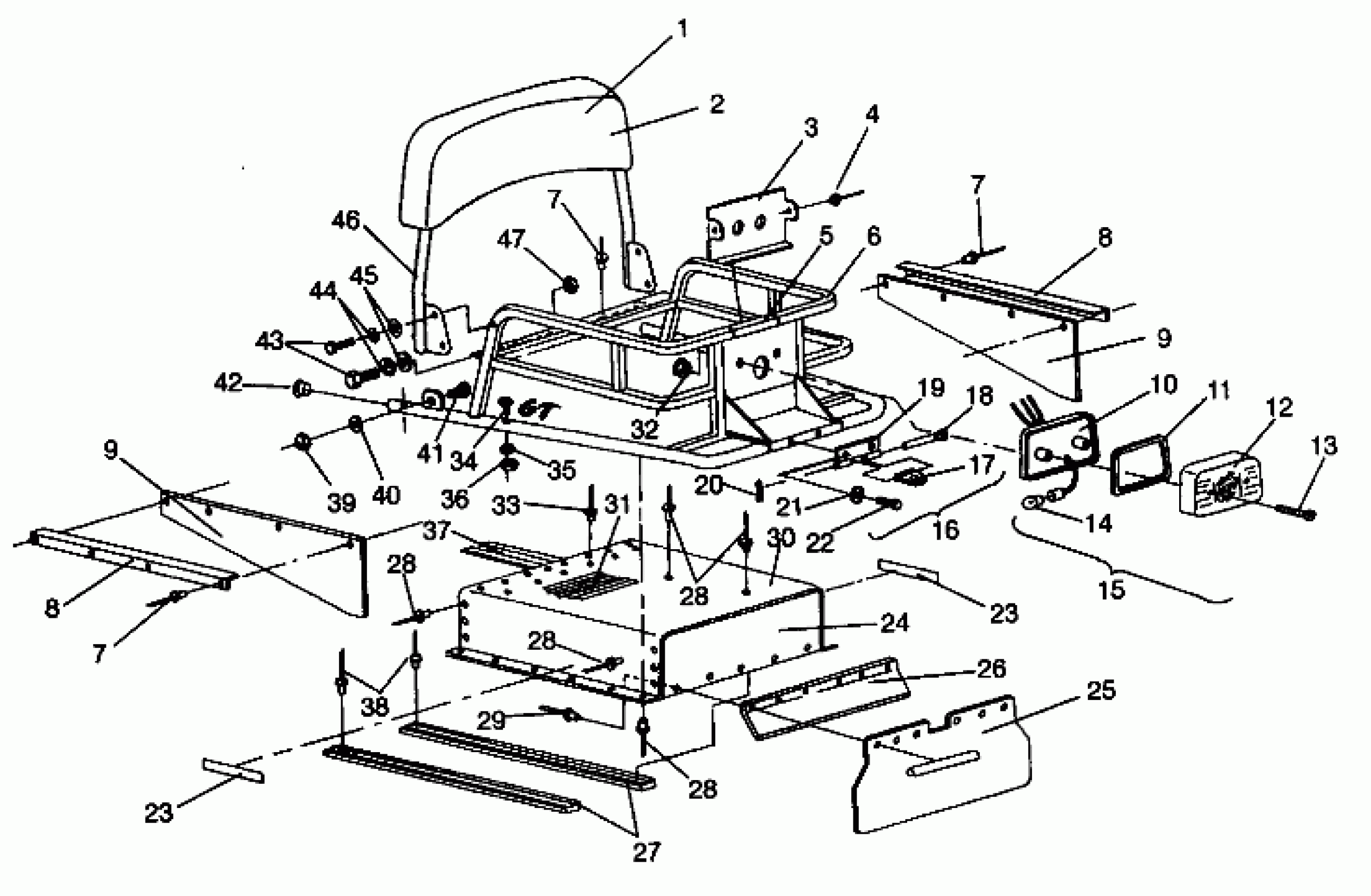

Polaris WIDE TRAK GT - 0942061 RACK and TUNNEL EXTENSION ASSEMBLY WIDETRAK GT 0942061 (49261126110010) Diagram
#
1
BACKREST ASM. (Incl. 2,46)
2681465
Unavailable
2
COVER, BACKREST
2681265
$257.13
3
SHIELD, TAILLIGHT
5222960-067
$17.19
4
RIVET,INTERLOCK,B(50)
7661638
$1.49
5
DECAL,TRACK/SEAT(CPSC)
7074255
Unavailable
6
RACK WELD, BLK.
1011941-067
Unavailable
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
7
RIVET(50)
7621462
$1.49
8
BRKT,SNOWFLAP,BLK.
5222929-067
Unavailable
8
BRKT,SNOWFLAP,BLK.
5222929-067
Unavailable
9
FLAP,SNOW,SIDE
5810809
Unavailable
9
FLAP,SNOW,SIDE
5810809
Unavailable
10
BASE&SOCKET,T/L
4032047
Unavailable
11
GASKET,TAILLIGHT
4032045
$4.03
12
LENS,TAILLIGHT
4032046
$32.37
13
Screw, Taillight
4032029
$4.79
14
BULB,TAILLIGHT Substituted by 4030063
4030044
Unavailable
15
TAILLIGHT ASM. (Incl. 10-14)
2432035
Unavailable
16
HITCHKIT,L.T./STARTRAK (Incl. 17-22)
2870708
Unavailable
17
HITCH WELD, BLK. Substituted by 2871178
1011624-067
Unavailable
18
CLEVIS PIN(10)
7662209
$9.59
19
HITCH WELD,BLK.(U.S.)
1011518-067
$31.75
20
COTTER PIN(10)
7661401
$1.49
21
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
22
SCREW(10) Substituted by 7512490
7512402
Unavailable
23
REFLECTOR RED
2670070
$9.91
23
REFLECTOR RED
2670070
$9.91
24
PANEL,R.EXTENSION
5222966
Unavailable
25
FLAP,SNOW,(20'')
5810802
Unavailable
26
PLATE, ANGLE
5222968
Unavailable
27
EXT., WEAR STRIP
5211365
$12.43
28
RIVET-3/16-.090-.290
7661637
$1.49
28
RIVET-3/16-.090-.290
7661637
$1.49
28
RIVET-3/16-.090-.290
7661637
$1.49
28
RIVET-3/16-.090-.290
7661637
$1.49
29
POP RIVET(50)
7621418
$1.49
30
EXTENSION,TUNNEL
5222932
Unavailable
31
PROTECTOR, BED
5410754
Unavailable
32
SPEED NUT-WASHER, HEAD-1/4
7670054
$1.49
33
RIVET(50)
7621429
$1.49
34
BOLT ,(10) Substituted by 7517377
7512239
Unavailable
35
WASHER(10) Substituted by 7558301
7555776
Unavailable
36
NUT(10)
7542124
Unavailable
37
BRKT,HARNESS PROTECTOR
5222933
Unavailable
38
RIVET(50)
7621449
$3.19
39
NUT(10)
7542458
$9.59
40
WASHER(10)
7552603
$1.49
41
BOLT(10)
7515522
$3.99
42
PLUG(10)
5430713
Unavailable
43
SCREW,PAN HD,PHILLIPS(10) Substituted by 7515355
7515341
Unavailable
44
WASHER(10)
7552606
$4.79
45
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
46
BACKREST, BLK. Substituted by 2681465
1011781-067
$27.92
47
NUT-5/16-18 NYLOK-Y
7542324
$1.49
