ENGINE MOUNTING WIDETRAK GT 0942061 (49261126110025)

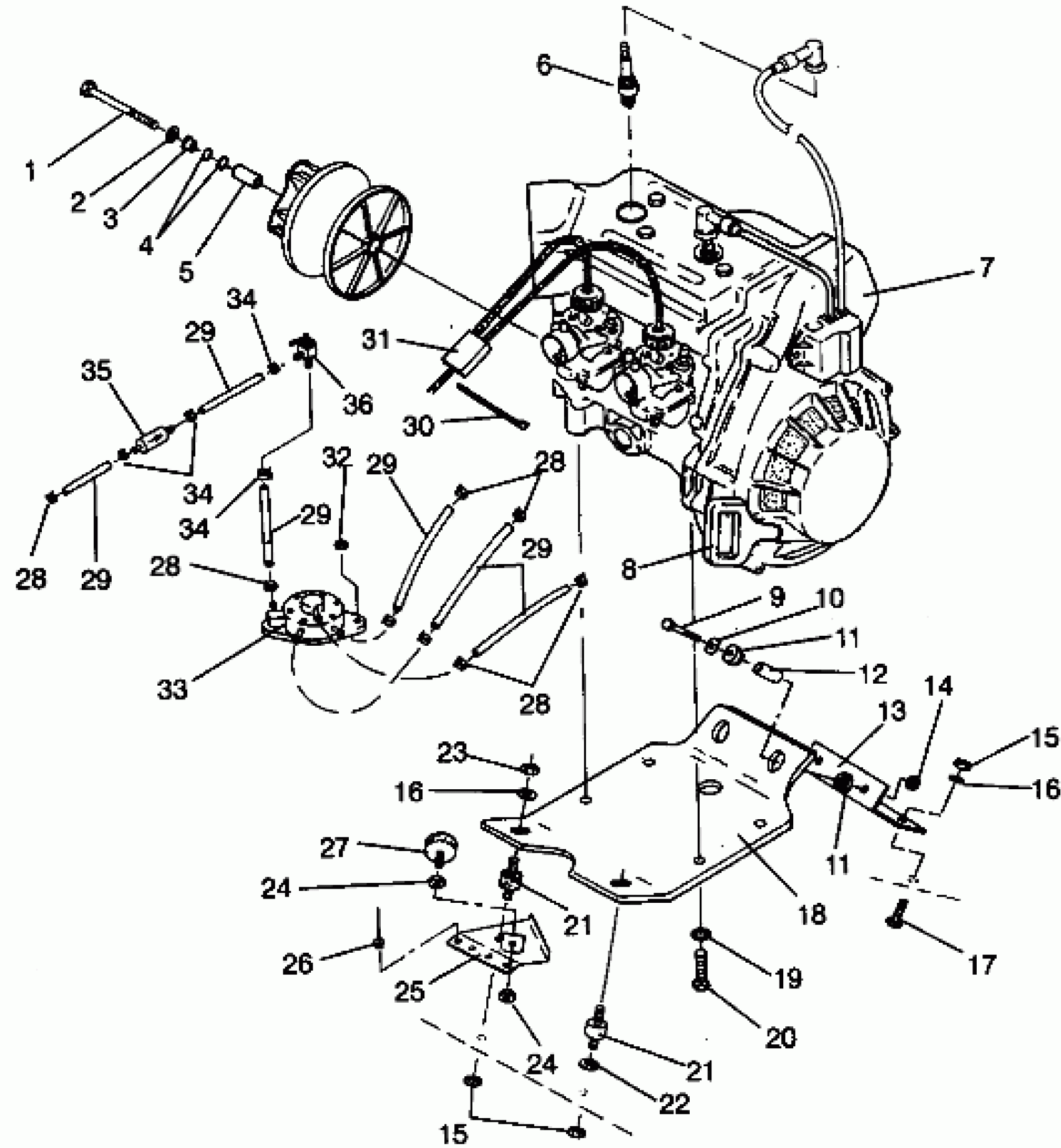

Polaris WIDE TRAK GT - 0942061 ENGINE MOUNTING WIDETRAK GT 0942061 (49261126110025) Diagram
#
1
BOLT(10)
7512565
$19.99
2
WASHER-7/16-INT LK-(1222)-Z
7575202
$4.79
3
WASHER,CLUTCH RETAINER
5010278
Unavailable
4
O RING,(10)
5410507
$1.49
5
SPACER,CLUTCH BOLT
5020513
$44.99
6
SPARKPLUG (10)
3070156
$3.99
7
ENG.EC50PM-03 Substituted by 1211442
1211459
Unavailable
7
ENG.(S.B.)EC50PM-03 [No Longer Available]
3084618
Unavailable
8
HANDLE-RECOIL
5430520
Unavailable
9
SCREW(10)
7512533
$1.75
10
WASHER(10)
7555740
$1.59
11
MOUNT, ENGINE
5410390
Unavailable
11
MOUNT, ENGINE
5410390
Unavailable
12
SPACER, (MTR.MT.)
5332778
Unavailable
13
MOUNT,MTR,(W'TRAK)
1011939-067
Unavailable
14
NUT, LOCK,(10)
7542503
$10.39
15
NUT-LOCK(10)
7542439
$1.49
15
NUT-LOCK(10)
7542439
$1.49
16
WASHER(10) Substituted by 7555806
7555720
$0.79
16
WASHER(10) Substituted by 7555806
7555720
$0.79
17
BOLT(10) Substituted by 7512457
7512491
Unavailable
18
PLATE,MOTOR MT.
5222928
$43.89
19
WASHER LOCK(10)
7553101
$3.99
20
BOLT(10)
7512539
$3.99
21
MOUNT
3110022
Unavailable
21
MOUNT
3110022
Unavailable
22
WASHER(10)
7555721
$1.49
23
NUT LOCK(10)
7542411
$3.19
24
NUT, JAM(10)
7542432
$3.99
24
NUT, JAM(10)
7542432
$3.99
25
LIMITER,TORQUE,BLK.
1012048-067
$38.71
26
RIVET-3/16-.090-.290
7661637
$1.49
27
STOP
3110023
Unavailable
28
HOSE CLAMP, RED
7080003
$1.49
28
HOSE CLAMP, RED
7080003
$1.49
28
HOSE CLAMP, RED
7080003
$1.49
28
HOSE CLAMP, RED
7080003
$1.49
29
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
29
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
29
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
29
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
29
FUEL LINE,1/4 ID(600 CM.)
8450040-600
Unavailable
30
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
31
CABLE,THROTTLE,W/OIL
7080554
$64.75
32
NUT-LOCK(10)
7542122
$1.49
33
Fuel Pump (See Pg. A36, Ref. 1)
-------
Unavailable
34
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
34
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
34
CLAMP-HOSE,(10) (Yellow)
7080236
$1.59
35
FILTER FUEL,(10)
2530008
$4.84
36
VALVE,FUEL SHUT-OFF
7052039
Unavailable
