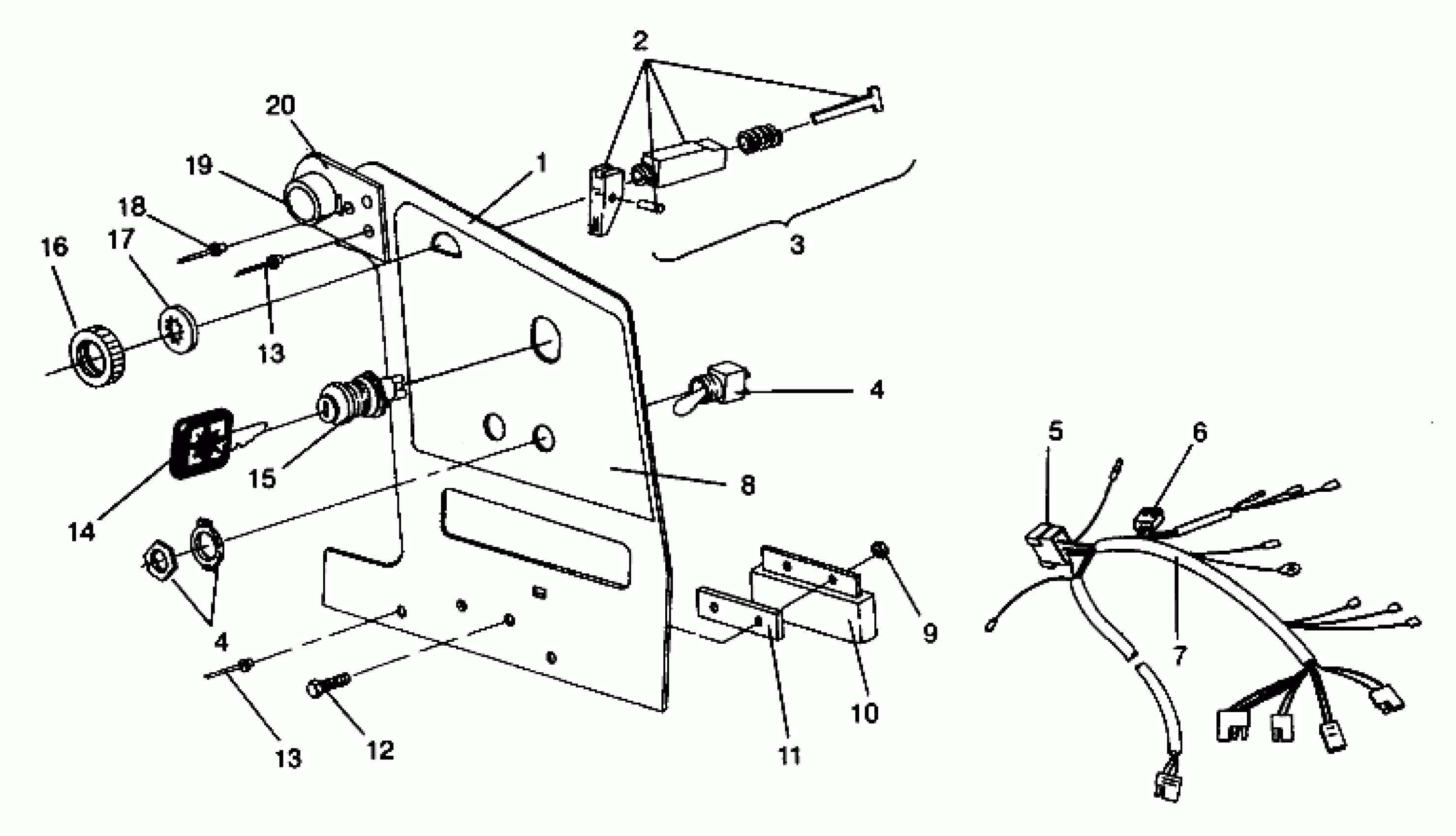

Polaris WIDE TRAK GT - 0942061 CONSOLE WIDETRAK GT 0942061 (49261126110009) Diagram

CONSOLE,BLK(W'TRAK)

5222680-067

Unavailable

KIT-CHOKE CONTROL

2200188

$24.27

Cable, Choke Control

7080290

$105.22

SWITCH,H-BAR HEATER

4110066

Unavailable

SWITCH,H-BAR HEATER

4110066

Unavailable

Housing w/Receptacle

4020057

$3.51

CONNECTOR, BRAKE SWITCH

4020112

Unavailable

HARNESS,MAIN WIRE(W'TRAK GT)

2460396

$78.39

DECAL, CONSOLE [No Longer Available]

7072973

Unavailable

NUT(10)

7541925

$1.49

REGULATOR, VOLTAGE

4060092

Unavailable

HEAT SINK

5210650

Unavailable

BOLT(10)

7512031

$2.23

RIVET,INTERLOCK,B(50)

7661638

$1.49

RIVET,INTERLOCK,B(50)

7661638

$1.49

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

5410611

Unavailable

KIT,IGN. SWITCH (Incl.14)

2200357

Unavailable

Nut

7080229

$19.99

WASHER-LOCK(10)

7571610

$3.99

RIVET,(50)

7621477

$1.19

GUIDE, RECOIL

5431385

$10.51

BRKT,ROPE GUIDE,BLK. NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot c

5222682-067

Unavailable
