TUNNEL ASSEMBLY WIDETRAK / 0932064 (4922982298001A)

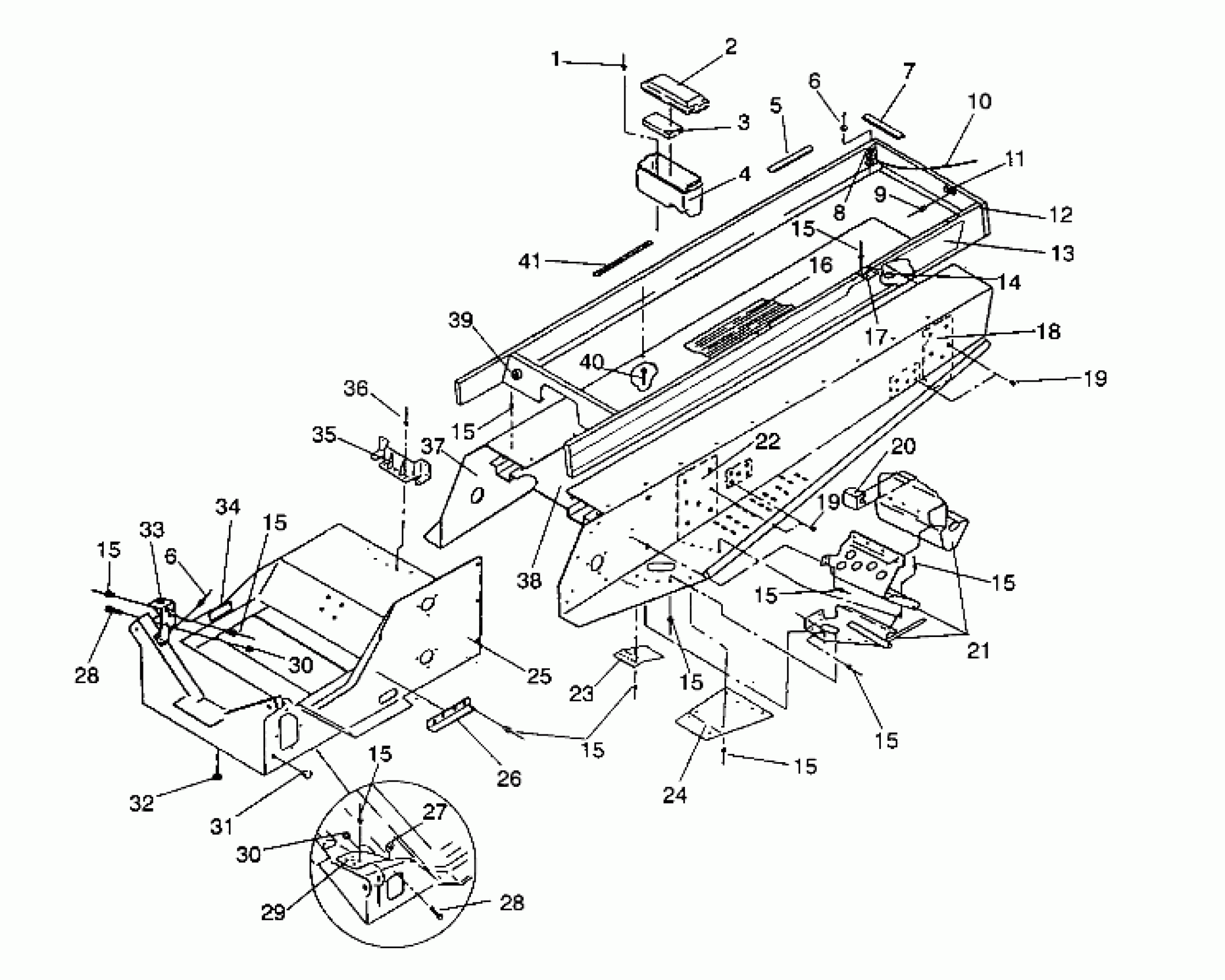

Polaris WIDE TRAK - 0932064 TUNNEL ASSEMBLY WIDETRAK / 0932064 (4922982298001A) Diagram
#
1
RIVET(50)
7621332
$1.49
2
COVER,TOOL BOX
5430719
$28.32
3
FOAM - TOOL BOX
5810266
Unavailable
4
BOX-TOOL
5430716
$11.99
5
SEAL,SEAT RISER
5410562
$20.22
6
RIVET(50)
7621452
$1.49
6
RIVET(50)
7621452
$1.49
7
SEAL,SHORT,SEAT RISER
5410563
$7.73
8
WSHR-.194X.475X.049 ZTB
7555746
Unavailable
9
RIVET,3/16X.402(50)
7621432
$1.49
10
CABLE, HOOD
7080284
Unavailable
11
CLIP, HALF(10)
7080393
$3.19
12
RISER,SEAT,BLK.
1011773-067
Unavailable
13
DECAL,LH.TUNNEL(W'TRAK) [No Longer Available]
7073618
Unavailable
13
DECAL,RH.TUNNEL(W'TRAK) [No Longer Available]
7073619
Unavailable
14
Grommet
5410437
$2.39
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
15
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
16
Protector, Riser
5410561
$89.90
17
HINGE,FLAT(10)
7020023
$4.19
18
BRKT,LH.R.SUSP,BLK.
1011749-067
Unavailable
18
BRKT,RH.R.SUSP,BLK.
1011750-067
Unavailable
19
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
19
RIVET,SEMI-TUBE,(50)
7661812
Unavailable
20
EXTRUSION,CLUTCHGUARD
5521238
$6.46
21
FOOTREST ASM, LH
2200311
Unavailable
21
FOOTREST ASM, RH
2200312
Unavailable
22
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
23
GUARD,COOLING EXT
5240101
Unavailable
24
PLATE,TUNNEL,LH Substituted by 5222351-067
5222351
Unavailable
24
PLATE,TUNNEL,RH Substituted by 5222352-067
5222352
Unavailable
25
BULKHEAD,WIDETRAK Substituted by 1011752-067
1011752
Unavailable
26
GUARD
5223789
Unavailable
27
WASHER FLAT(10)
7555701
$3.99
28
SCREW(10)
7512307
$3.99
28
SCREW(10)
7512307
$3.99
29
BRACE,LH BLKHD,BLK.
5222582-067
Unavailable
29
BRACE,RH BLKHD,BLK.
5222583-067
Unavailable
30
NUT LOCK(10)
7542321
$1.49
30
NUT LOCK(10)
7542321
$1.49
31
PLUG, HOLE(10)
7080416
$5.65
32
PLUG-HOLE
7080398
$4.84
33
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
34
DECAL, BRAKE [No Longer Available]
7072088
Unavailable
35
BRACKET, GASTANK
5221932-067
Unavailable
36
RIVET(50)
7621301
$3.99
37
HSG.,TUNNEL, LH
5222391
Unavailable
37
HSG.,TUNNEL, RH [No Longer Available]
5222392
Unavailable
38
BRKT,TUNNEL SPACER [No Longer Available]
5222290
Unavailable
39
BUSHING,(OPEN/CLOSE)(10)
7080392
$2.07
40
RIVET(50)
7621429
$1.49
41
VELCRO, 10 IN.
5521235
Unavailable
